Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.

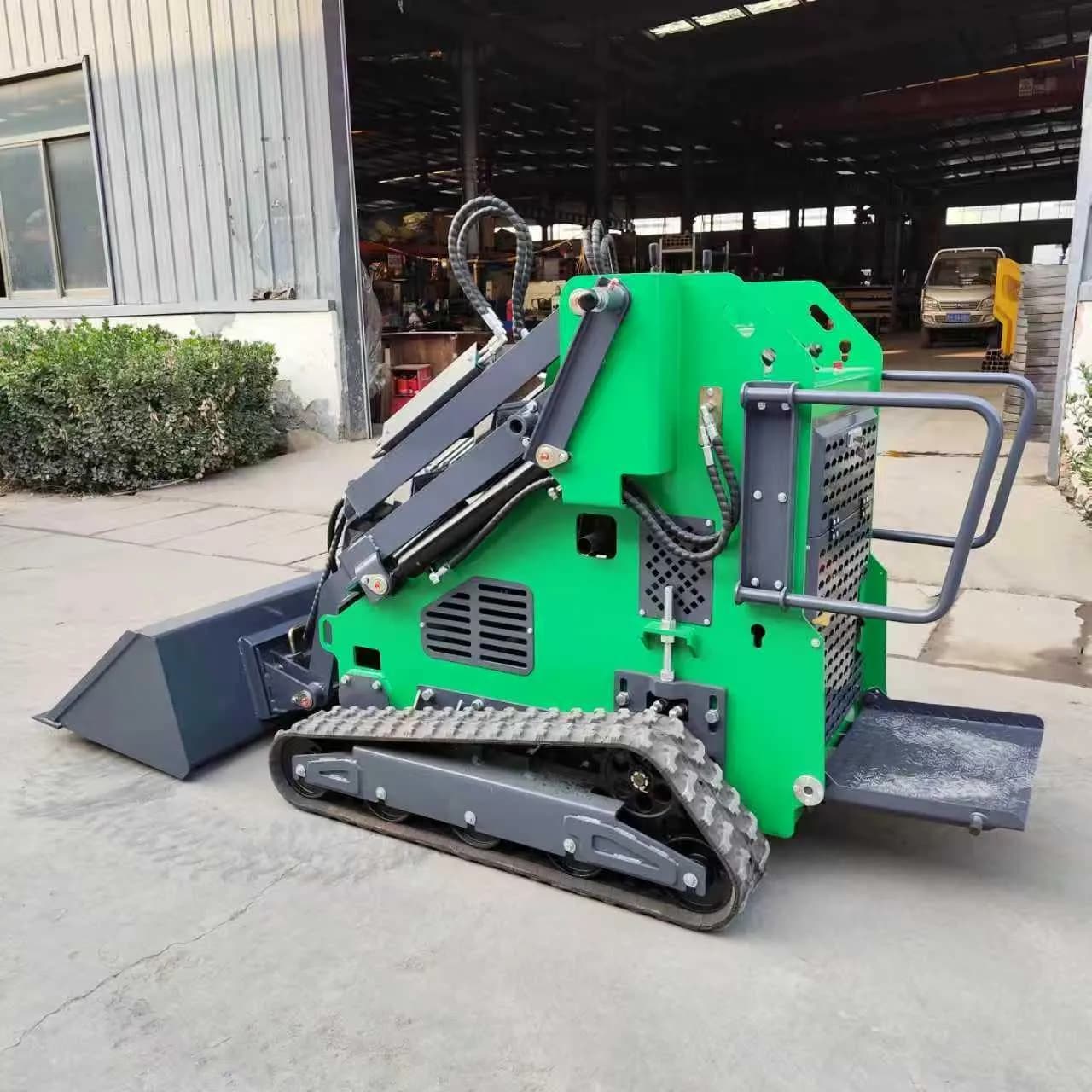

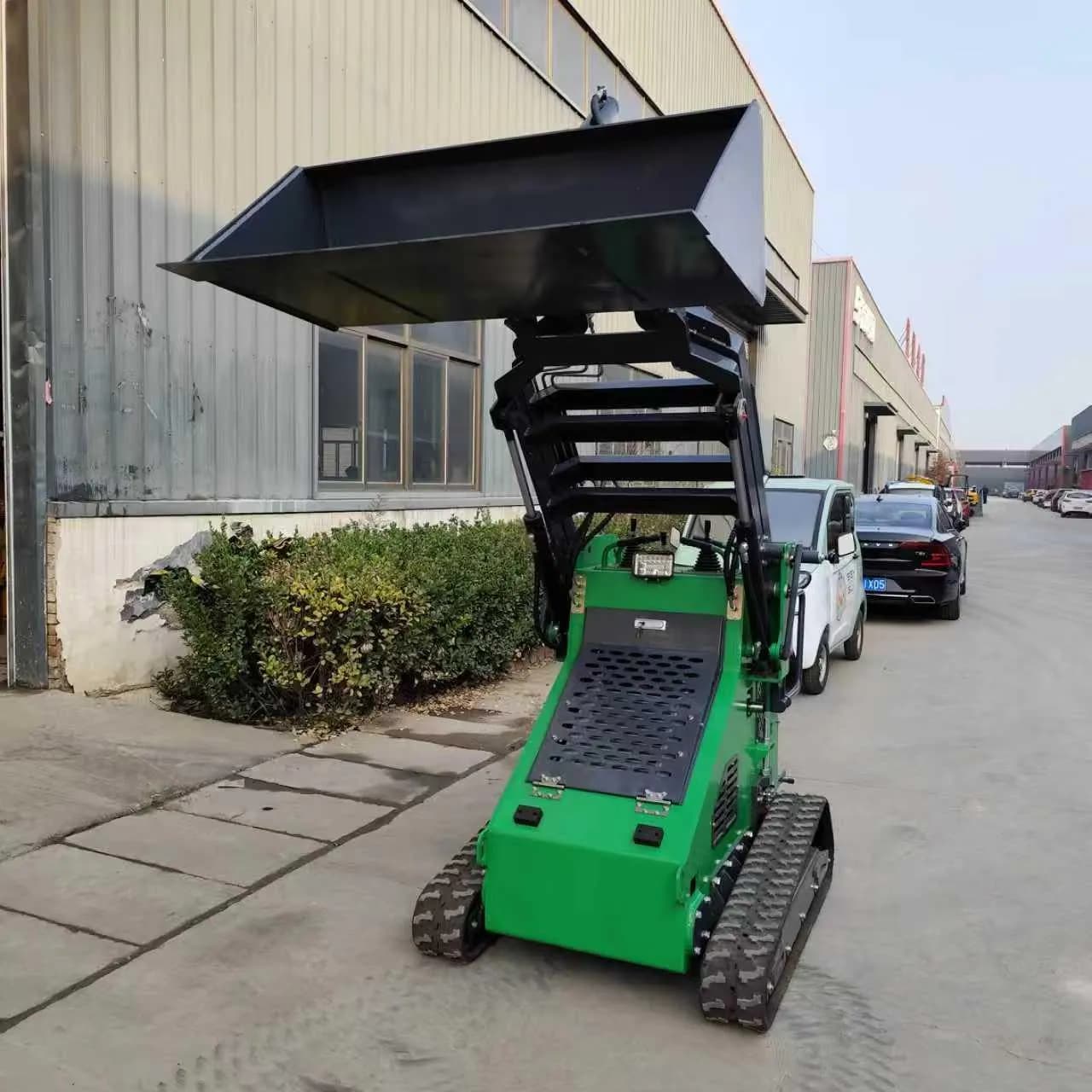

Skid Steer Loaders / MODEL
FYHY360L
FYHY360L specifications cover the stated dimensions, bucket capacity, power and travel speed. Confirm the running arrangement together with the configuration in your quotation.
Images are representative. Final configuration may vary by specification.
Bucket capacity0.06 m³
Machine Weight600 kg
Dimensions & weight
| Machine Weight | 600 kg |
|---|---|
| Dimensions (L × W × H) | 2160 × 1360 × 1100 mm |
Loading & working range
| Bucket capacity | 0.06 m³ |
|---|---|
| Maximum working height | 2,490 mm |
Power
| Engine power | 13.5 HP |
|---|---|
| Rated engine speed | 3000 rpm |
Travel & capacities
| Travel speed | 0–6 km/h |
|---|
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output.
Specify your configuration
Specify whether your requirement is for wheels or tracks and request matching machine photographs and dimensions. Confirm the engine identity and load rating for that exact arrangement.
Configuration checklistCONTINUE COMPARING
Related models.
LET’S START WITH THE DETAILS
Discuss FYHY360L for your requirement.
Include the model or series, quantity, destination and configuration you need.
