Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Skid Steer Loaders / MODEL
FYSL390
Review FYSL390 dimensions, bucket geometry, engine rating and fluid capacities. Machine width, bucket width and discharge reach are identified separately for access and loading discussions.

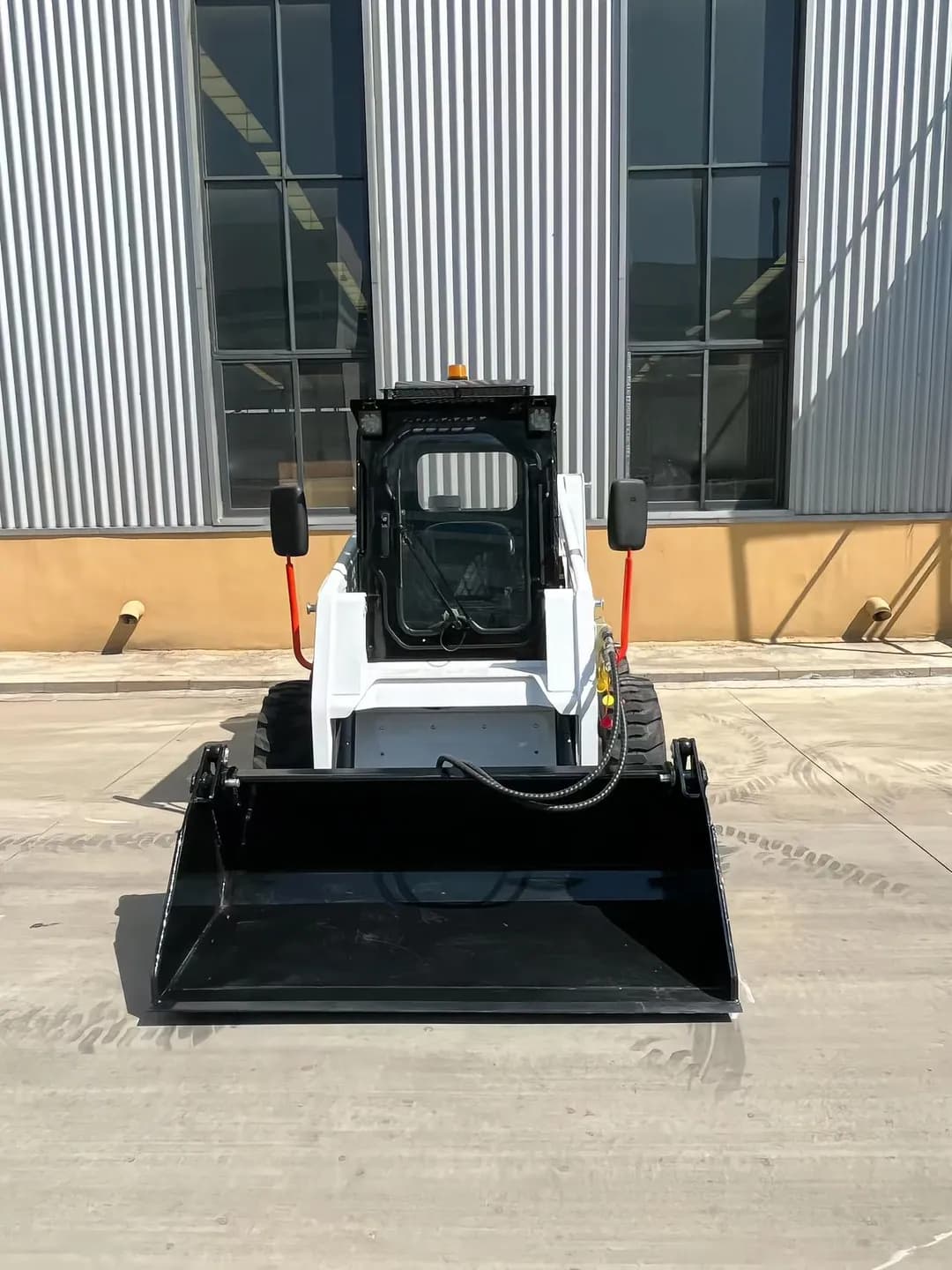

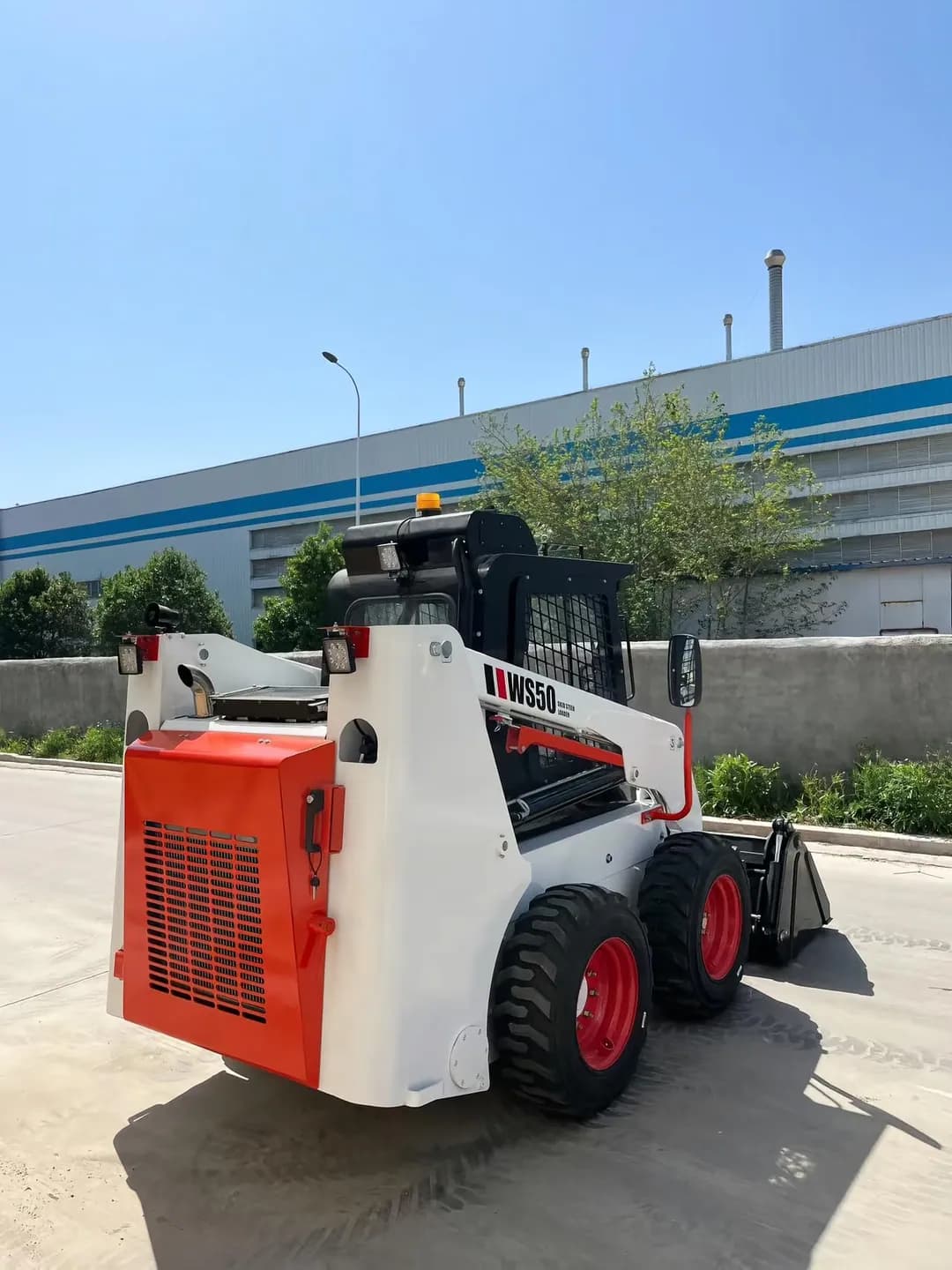

Images are representative. Final configuration may vary by specification.
Bucket capacity0.13 m³
Total width1,050 mm
Operating Weight850 kg
Dimensions & weight
| Operating Weight | 850 kg |
|---|---|
| Total width | 1,050 mm |
| Total height | 2020 mm |
| Ground clearance | 185 mm |
| Wheelbase | 815 mm |
| Length without bucket | 2030 mm |
| Bucket width | 1050 mm |
| Length with bucket | 2481 mm |
Loading & working range
| Bucket capacity | 0.13 m³ |
|---|---|
| Maximum working height | 2,398 mm |
| Maximum pin height | 1815 mm |
| Maximum dumping height | 1430 mm |
| Maximum dumping distance | 366 mm |
| Maximum dumping angle | 23 ° |
Power
| Engine | RATO R420 |
|---|---|
| Rated Power | 10 kW @ 3600 rpm |
Hydraulics
| Hydraulic system pressure | 0–17 MPa |
|---|
Hydraulic system references do not establish auxiliary-circuit performance. Confirm the attachment circuit, required flow and pressure before choosing powered equipment.
Travel & capacities
| Travel speed | 0–4.5 km/h |
|---|---|
| Fuel tank capacity | 6.5 L |
| Engine oil capacity | 1.7 L |
| Hydraulic tank capacity | 23 L |
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output.
Specify your configuration
Confirm operating-load and lifting definitions for the selected machine. Request hydraulic flow with its time unit and circuit identification before selecting hydraulic attachments.
