Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Skid Steer Loaders / MODEL
FYS380
The FYS380 table focuses on machine dimensions and bucket working geometry, including pin height, discharge height and reach. Use these measurements to discuss access and loading requirements.

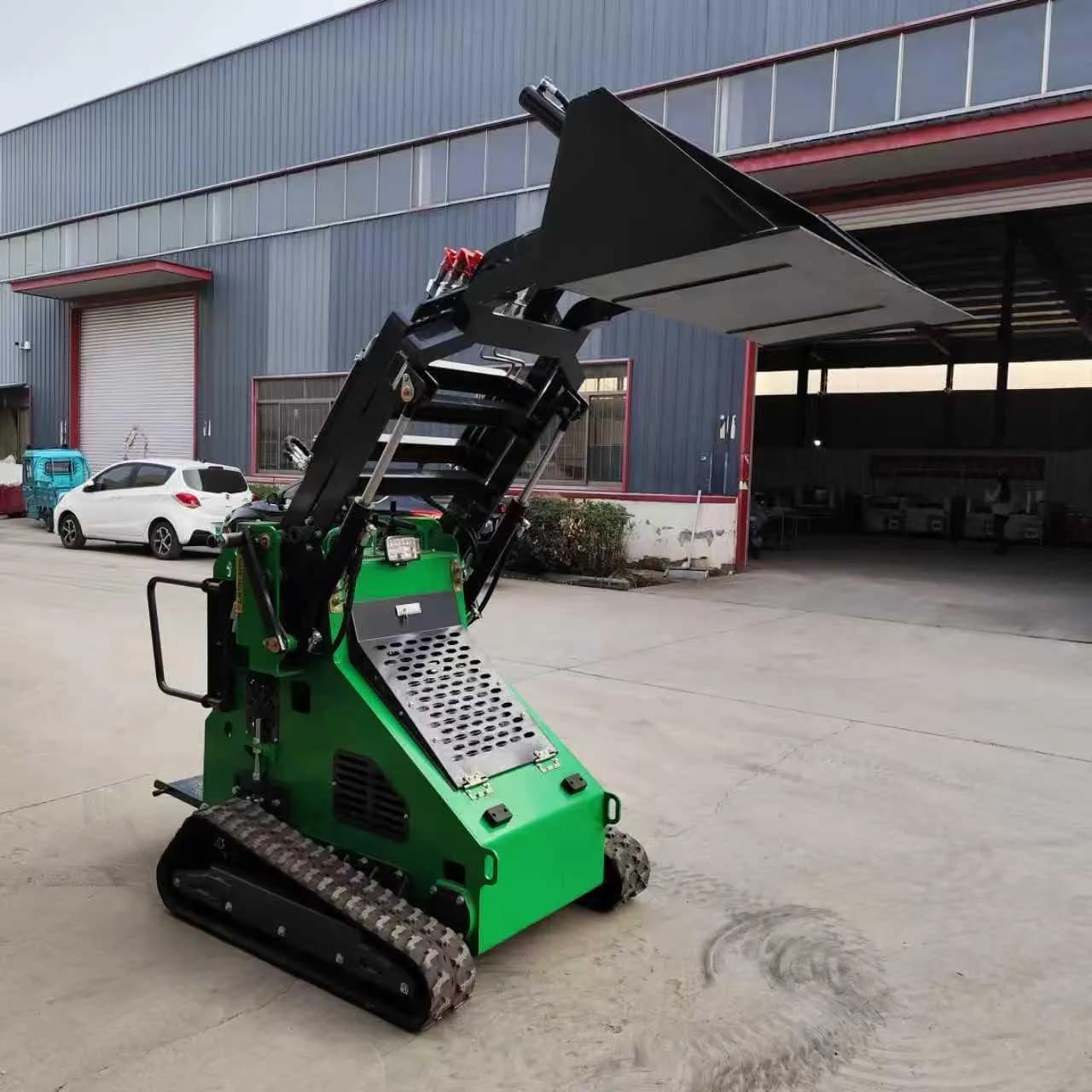

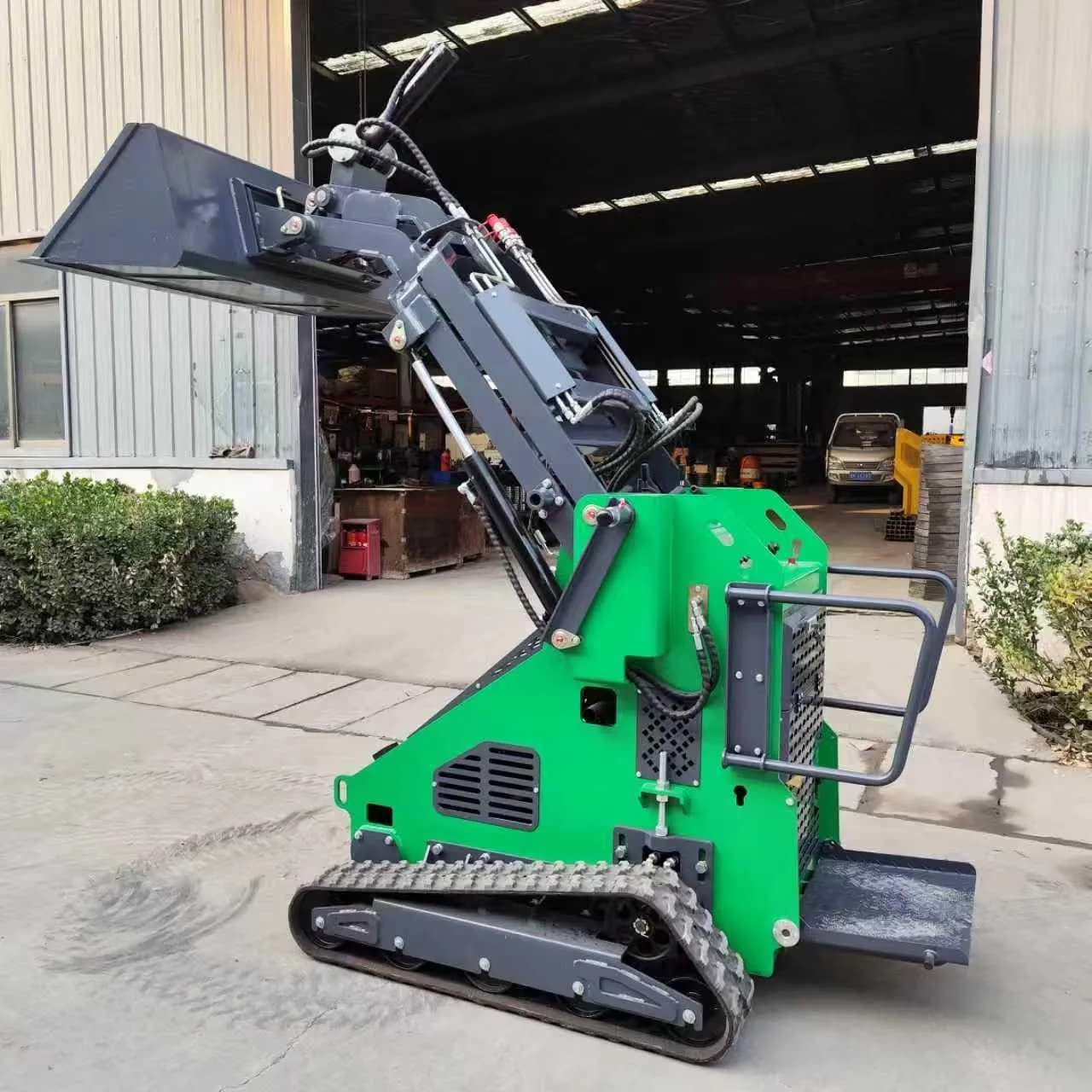

Images are representative. Final configuration may vary by specification.
Total width1,033 mm
Dimensions & weight
| Total width | 1,033 mm |
|---|---|
| Length without bucket | 1,752 mm |
| Length with bucket | 2,206 mm |
| Departure angle | 8 ° |
| Total height | 1205 mm |
| Ground clearance | 90 mm |
| Wheelbase | 636 mm |
| Bucket width | 980 mm |
| Turning radius | 1307 mm |
Loading & working range
| Maximum working height | 2,115 mm |
|---|---|
| Maximum pin height | 1,856 mm |
| Maximum dumping height | 1,460 mm |
| Discharge distance at highest point | 388 mm |
| Bucket swing angle | 55 ° |
| Bucket unloading angle | 30 ° |
Reading these specifications
Specify your configuration
Request the engine, operating load and machine weight for the quoted configuration, together with the bucket and running arrangement. Do not infer these values from a similar model.
