Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Skid Steer Loaders / MODEL
FYS25
FYS25 specifications distinguish tracked and wheeled arrangements, with separate engine options. Read the common measurements once, then compare the dimensions and travel values for your chosen arrangement.

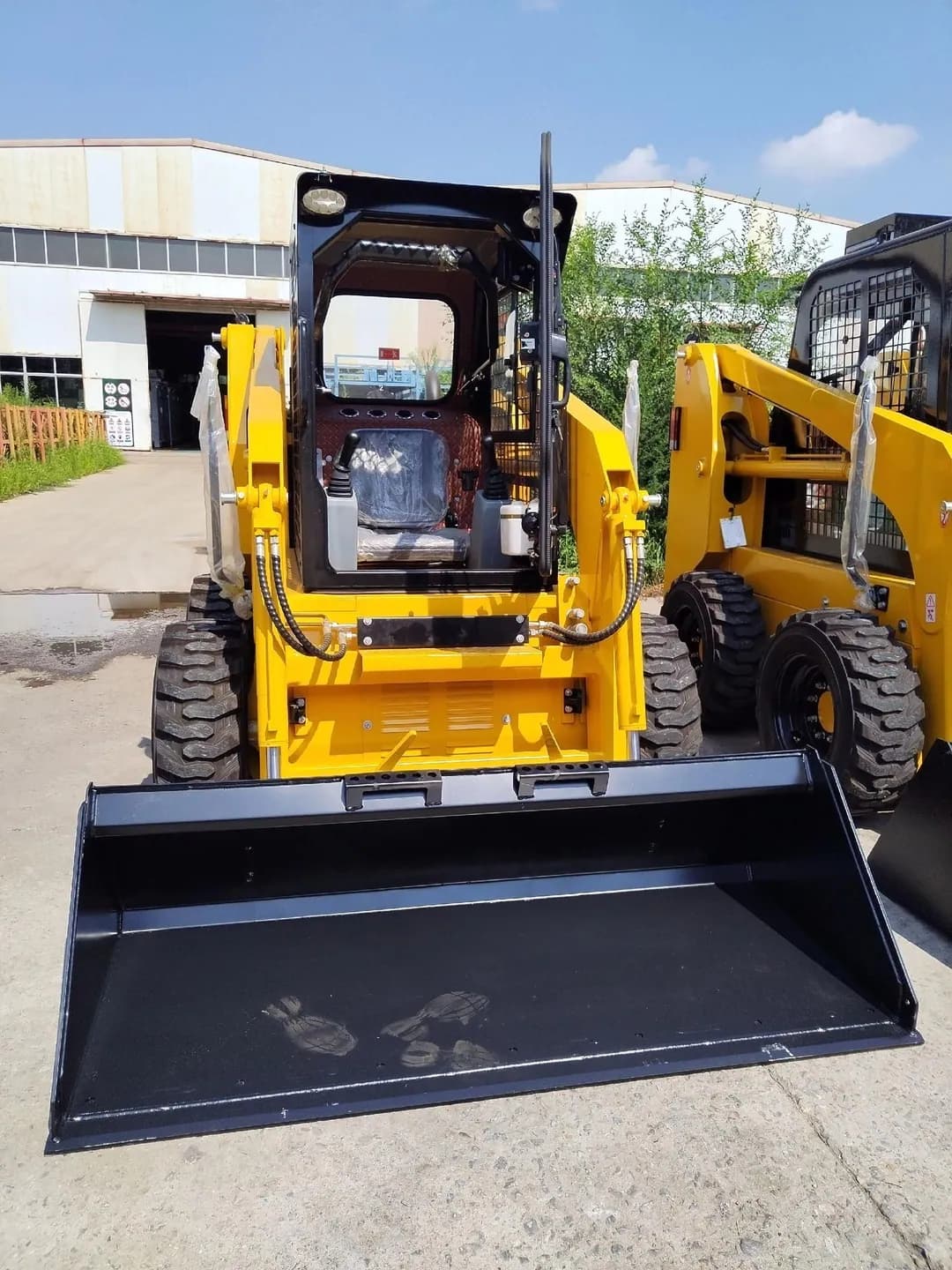

Images are representative. Final configuration may vary by specification.
Operating Load300 kg
Bucket capacity0.2 m³
Total width1,180 mm
Dimensions & weight
| Total width | 1,180 mm |
|---|---|
| Height to top of cab | 1990 mm |
| Length with bucket | 2730 mm |
| Bucket width | 1130 mm |
Tracked configuration
| Length without bucket | 2130 mm |
|---|---|
| Wheelbase | 1080 mm |
| Ground clearance | 165 mm |
| Departure angle | 25 ° |
| Rear axle to bumper | 660 mm |
Wheeled configuration
| Length without bucket | 2140 mm |
|---|---|
| Wheelbase | 730 mm |
| Ground clearance | 120 mm |
| Departure angle | 13 ° |
| Rear axle to bumper | 840 mm |
Loading & working range
| Operating Load | 300 kg |
|---|---|
| Bucket capacity | 0.2 m³ |
| Dumping angle at maximum height | 21 ° |
| Bucket rollback at ground level | 34 ° |
| Bucket rollback at full height | 109 ° |
Tracked configuration
| Overall operating height | 3380 mm |
|---|---|
| Height to bucket hinge pin | 2610 mm |
| Dumping height | 2130 mm |
| Dumping reach | 510 mm |
Wheeled configuration
| Overall operating height | 3340 mm |
|---|---|
| Height to bucket hinge pin | 2570 mm |
| Dumping height | 2090 mm |
| Dumping reach | 525 mm |
Power
Kubota D1105 option — tracked or wheeled
| Engine model | Kubota D1105 |
|---|---|
| Rated engine power | 18.2 kW |
Laidong 385 option — tracked or wheeled
| Engine model | Laidong 385 |
|---|---|
| Rated engine power | 18.5 kW |
Engine options are separate configurations. Confirm the engine and associated ratings in your quotation.
Hydraulics
| Hydraulic flow | 36 L/min |
|---|---|
| Hydraulic pressure | 160 bar |
Hydraulic system references do not establish auxiliary-circuit performance. Confirm the attachment circuit, required flow and pressure before choosing powered equipment.
Travel & capacities
| Fuel tank capacity | 23 L |
|---|
Tracked configuration
| Maximum travel speed | 3 km/h |
|---|
Wheeled configuration
| Maximum travel speed | 5.5 km/h |
|---|
Configuration

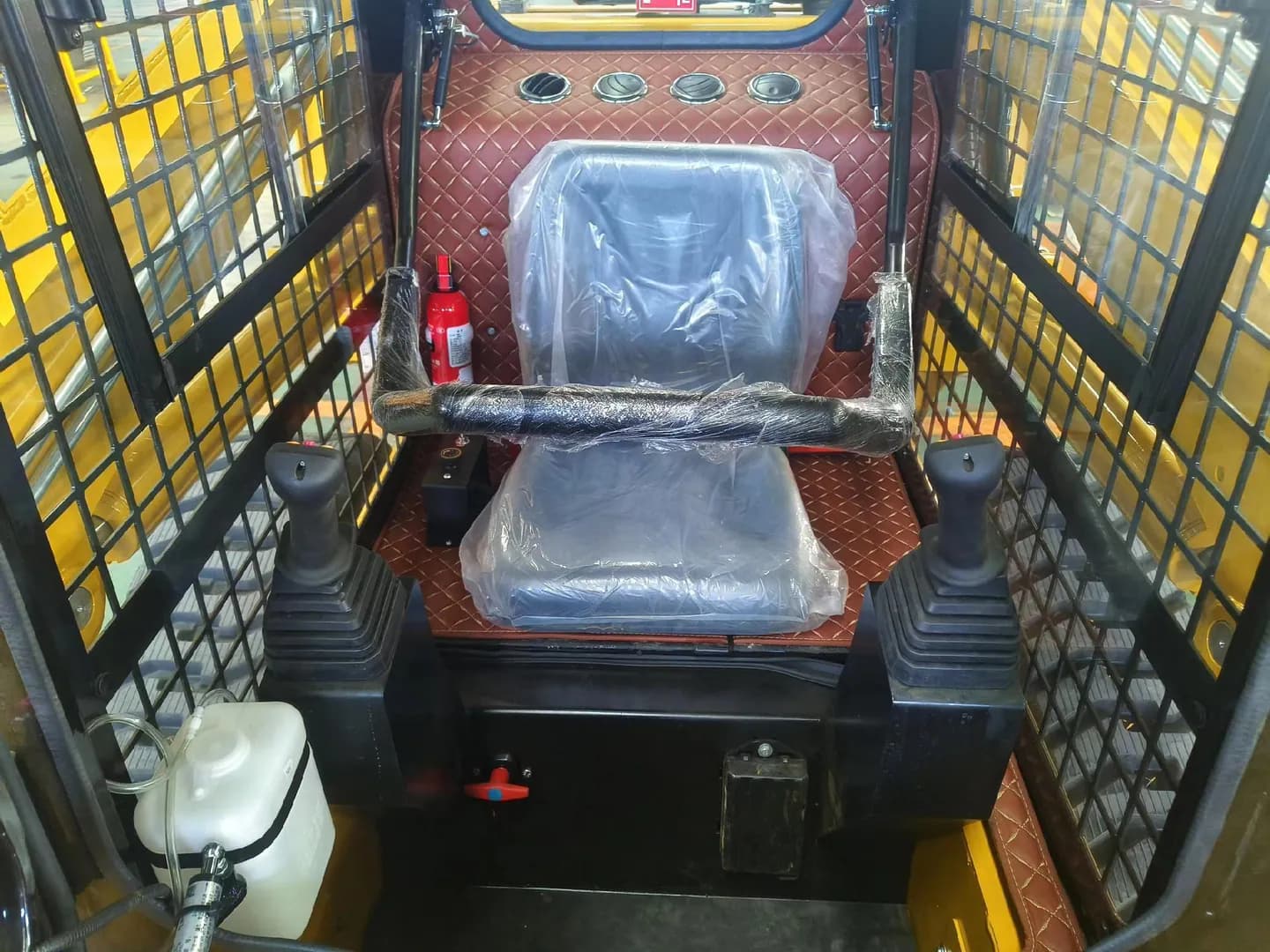

| Listed controls | Pilot Control & Multi-function Electronic Control |
|---|
Tracked configuration
| Track specification | 200*72*45 |
|---|
Wheeled configuration
| Tire specification | 23-8.5-12 (Solid Tire) |
|---|
Reading these specifications
Load definitions
Operating or rated load is listed under its stated definition. Tipping load, lifting force and the machine’s own mass are different quantities.
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output.
Specify your configuration
Specify both the running arrangement and engine option in your enquiry. Confirm machine weight, auxiliary hydraulic requirements and the complete quoted configuration; the alternatives are not a combined standard package.
