Load definitions
Operating or rated load is listed under its stated definition. Tipping load, lifting force and the machine’s own mass are different quantities.
Skid Steer Loaders / MODEL
FYS50
Compare FYS50 rated load and tipping load alongside bucket geometry, machine dimensions and engine rating. Body width, width over tyre edges and bucket width remain separate measurements.

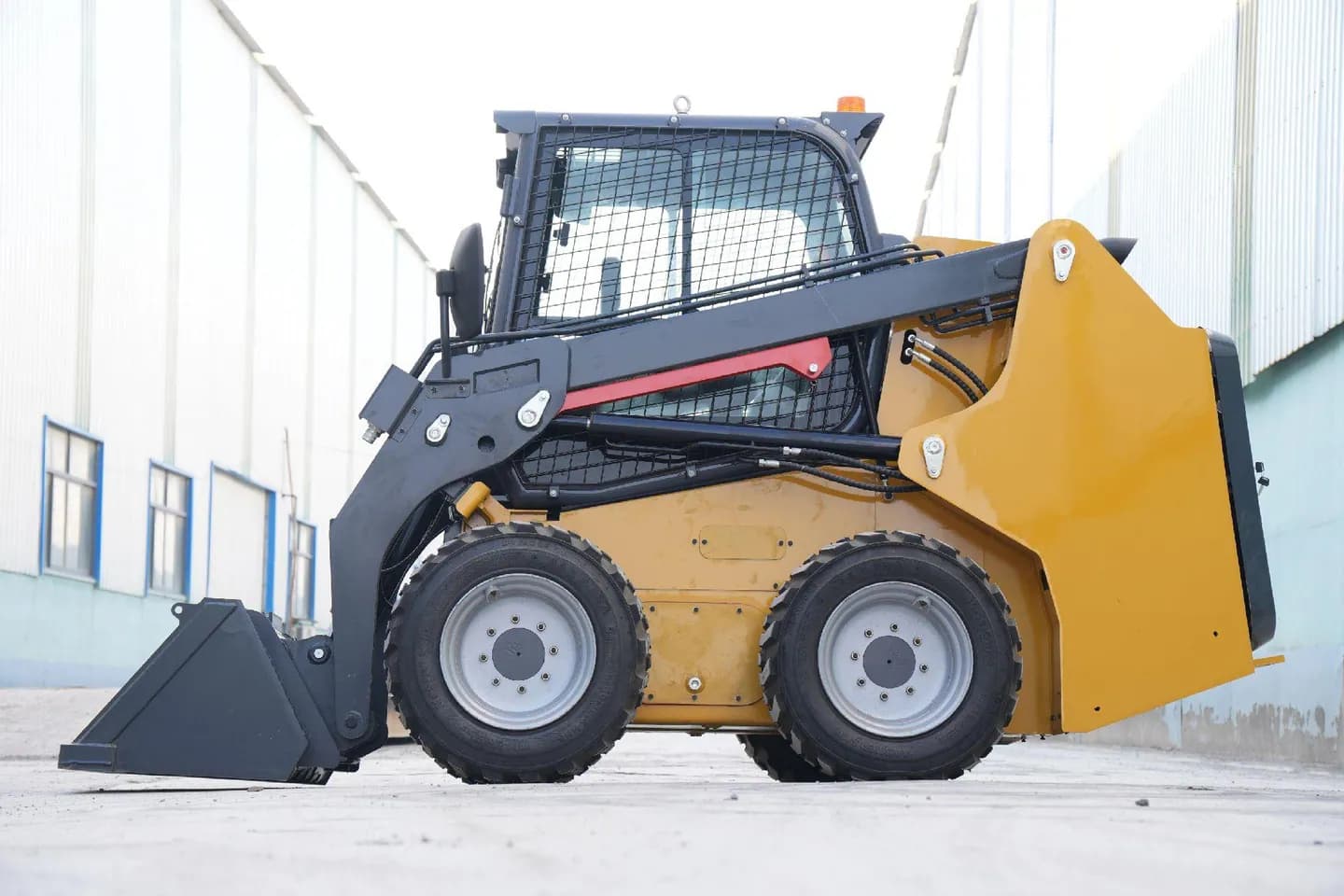

Images are representative. Final configuration may vary by specification.
Rated working capacity750 kg
Bucket capacity0.35 m³
Operation weight3,003 kg
Dimensions & weight
| Operation weight | 3,003 kg |
|---|---|
| Machine body width | 1,469 mm |
| Width over tyre edges | 1,740 mm |
| Bucket width | 1,780 mm |
| Height to cabin top | 2007 mm |
| Length without bucket | 2700 mm |
| Length with bucket | 3413 mm |
| Wheelbase | 999 mm |
| Departure angle | 23 ° |
| Ground clearance | 185 mm |
| Rear turning radius | 1627 mm |
Loading & working range
| Rated working capacity | 750 kg |
|---|---|
| Overturning working capacity | 1,500 kg |
| Bucket capacity | 0.35 m³ |
| Maximum operating height | 4058 mm |
| Bucket hinge-pin height | 3077 mm |
| Maximum horizontal bucket-bottom height | 2908 mm |
| Maximum unloading height | 2303 mm |
| Unloading distance | 675 mm |
Power
| Engine | Xinchai490 |
|---|---|
| Power | 36.8 kW @ 2500 rpm |
Travel & capacities
| Diesel fuel tank capacity | 88 L |
|---|---|
| Hydraulic tank capacity | 70 L |
| Maximum working speed | 12 km/h |
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output.
Specify your configuration
Confirm the engine and control arrangement, the bucket and any powered attachment. Use the relevant machine or bucket width for each access condition and request circuit-specific hydraulic information.
Items listed as standard in the specification: Engine (Xinchai490). Confirm the complete equipment list for the quoted configuration.
