Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Skid Steer Loaders / MODEL
FYS530
The FYS530 table brings together operating load, machine weight, working height and its listed engine rating. Use the model-specific measurements when comparing access and loading requirements.

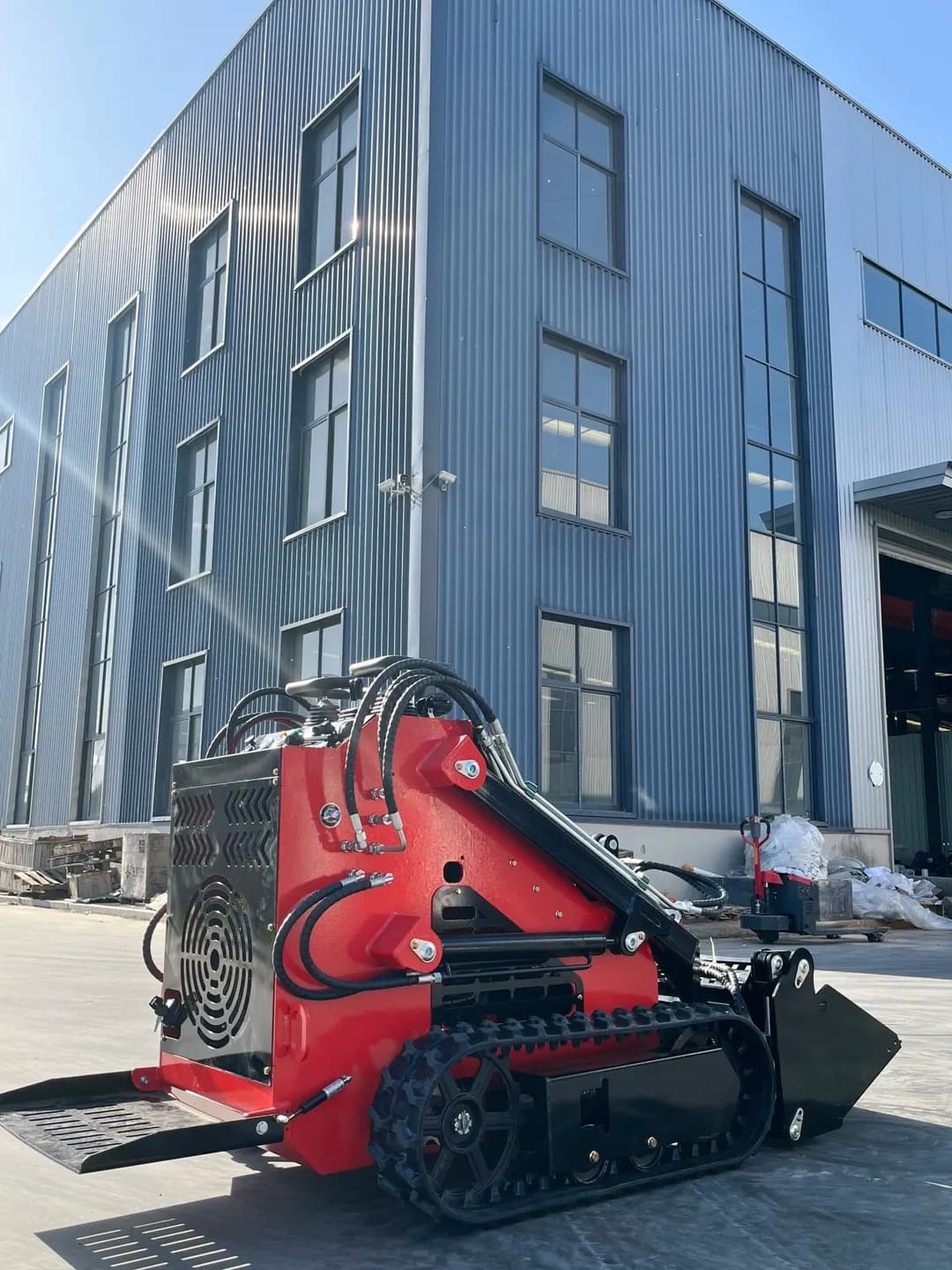

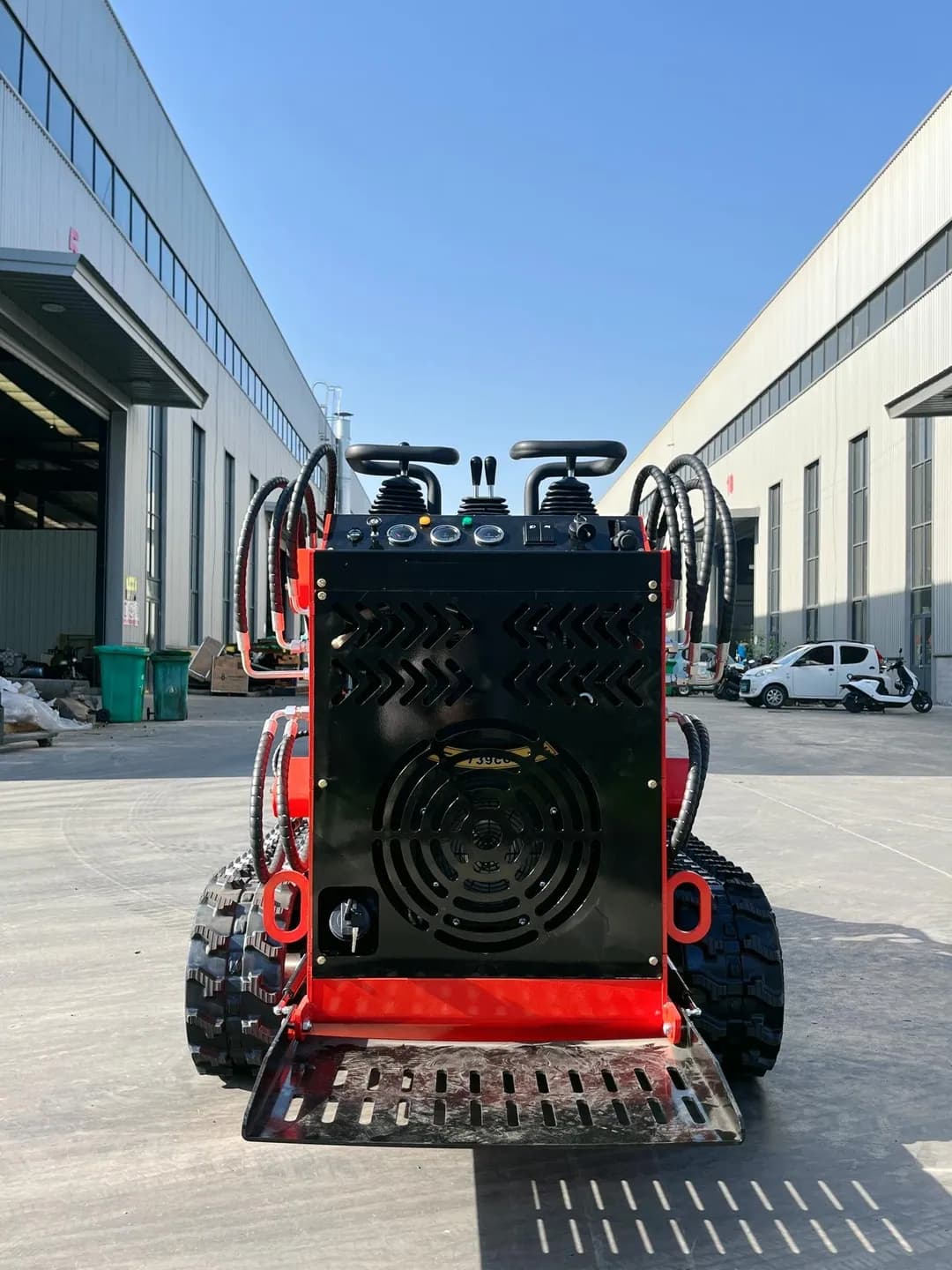

Images are representative. Final configuration may vary by specification.
Operating Load450 kg
Bucket capacity0.2 m³
Total width1,050 mm
Dimensions & weight
| Operating Weight | 1,330 kg |
|---|---|
| Total width | 1,050 mm |
| Length with bucket | 2,745 mm |
Loading & working range
| Operating Load | 450 kg |
|---|---|
| Bucket capacity | 0.2 m³ |
| Maximum dumping height | 1,535 mm |
| Maximum lifting value | 530 kg |
| Maximum working height | 2630 mm |
Maximum lifting value is a separate stated rating, not a rated operating load or a safe working capacity. Confirm the measurement conditions and permitted operation for the selected machine.
Power
| Engine | Kubota D1105 |
|---|---|
| Rated engine power | 14 kW |
Travel & capacities
| Travel speed | 0–4.5 km/h |
|---|
Reading these specifications
Load definitions
Operating or rated load is listed under its stated definition. Tipping load, lifting force and the machine’s own mass are different quantities.
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output.
Specify your configuration
Keep FYS530 and FYS530T selections separate when requesting a quotation. Confirm their configuration relationship, bucket and attachment requirements instead of assuming interchangeability.
