Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Skid Steer Loaders / MODEL
FYS530T
Review FYS530T machine weight, bucket geometry, engine rating and travel references. Maximum lifting value is retained under its own definition and is not an operating-load rating.

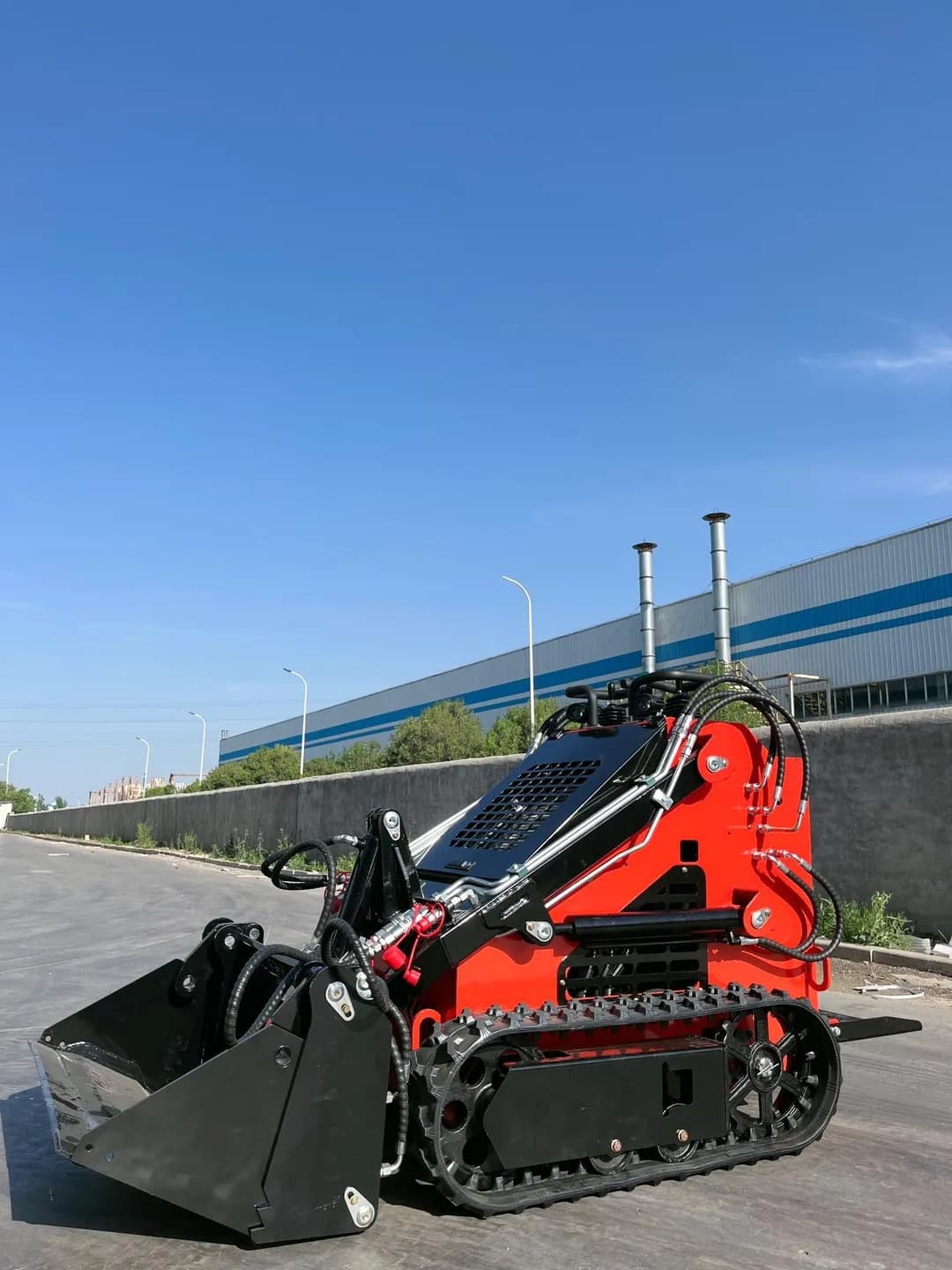

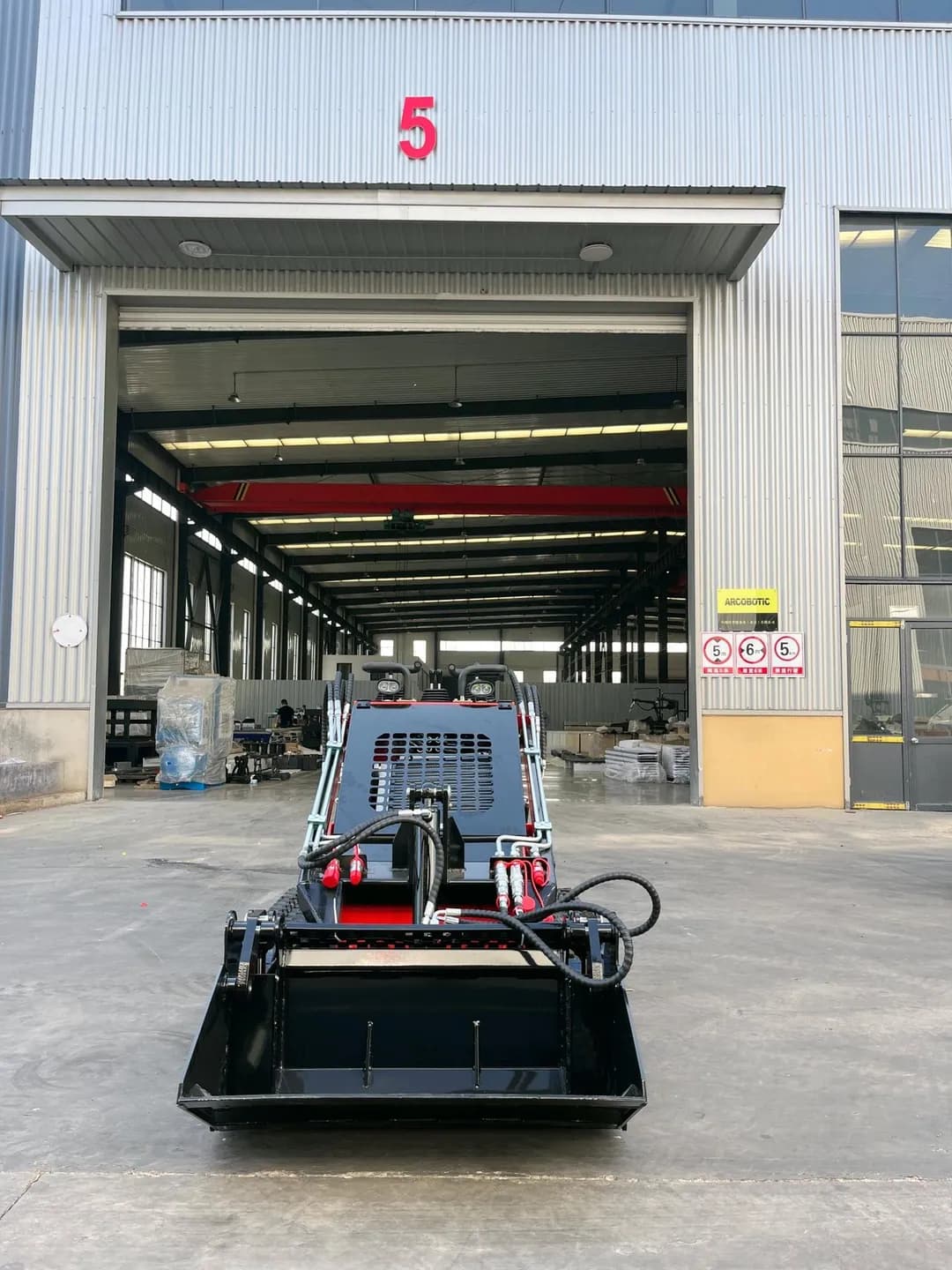

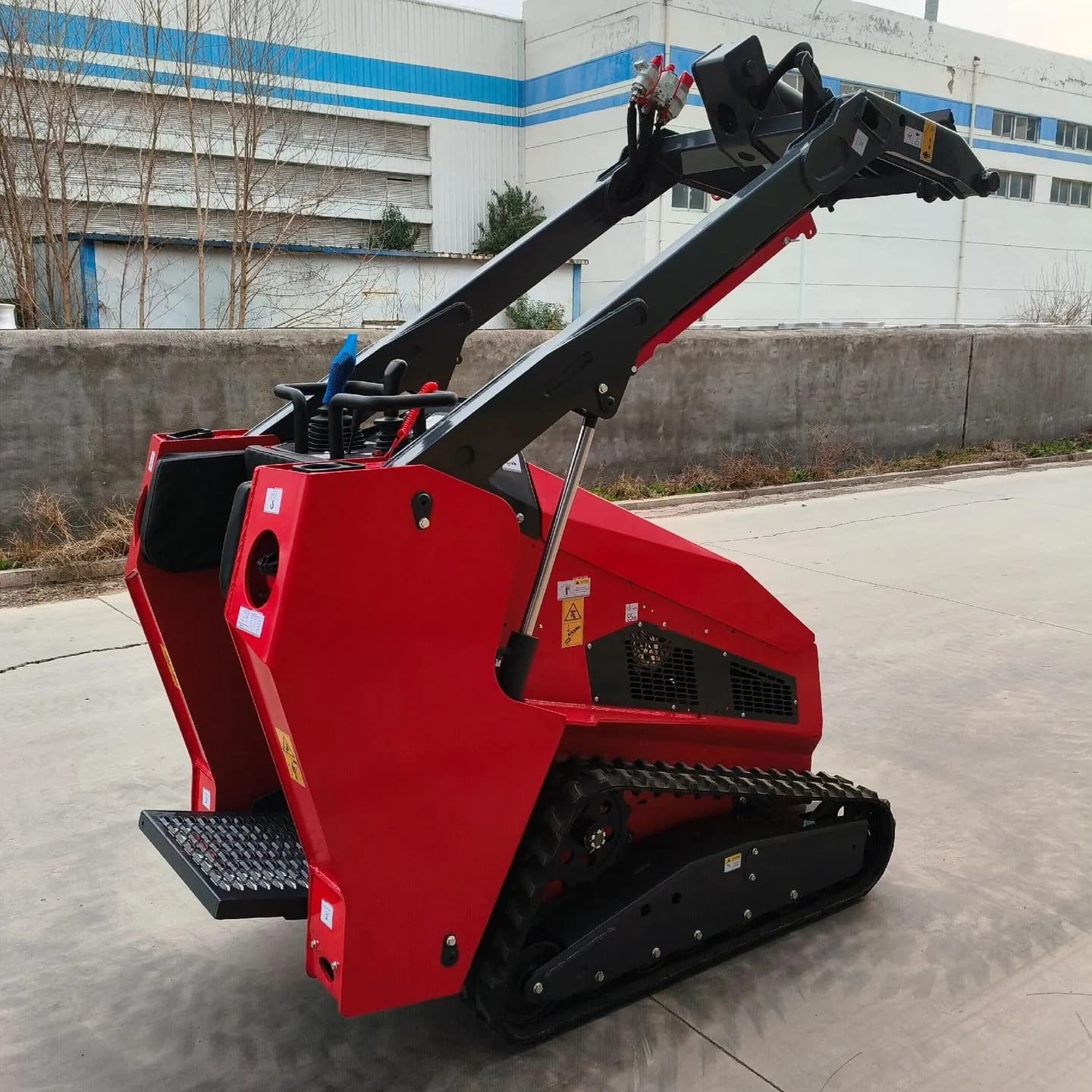

Images are representative. Final configuration may vary by specification.
Bucket capacity0.2 m³
Operating Weight1,330 kg
Engine modelKUBOTA D1105
Dimensions & weight
| Operating Weight | 1,330 kg |
|---|---|
| Length without bucket | 2,220 mm |
| Ground clearance | 150 mm |
Loading & working range
| Bucket capacity | 0.2 m³ |
|---|---|
| Maximum working height | 2,630 mm |
| Maximum dumping height | 1535 mm |
| Maximum lifting value | 530 kg |
Maximum lifting value is a separate stated rating, not a rated operating load or a safe working capacity. Confirm the measurement conditions and permitted operation for the selected machine.
Power
| Rated engine speed | 2200 rpm |
|---|---|
| Rated engine power | 14 kW |
| Engine model | KUBOTA D1105 |
Hydraulics
| Hydraulic pressure | 0–17 MPa |
|---|
Hydraulic system references do not establish auxiliary-circuit performance. Confirm the attachment circuit, required flow and pressure before choosing powered equipment.
Travel & capacities
| Travel speed | 0–4.5 km/h |
|---|
Reading these specifications
Travel & control
Travel speed describes machine movement, not engine output.
Specify your configuration
Confirm the operating-load rating, running arrangement and equipment included with FYS530T. Clarify its relationship to FYS530 before substituting one model for the other.
