Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Mini Excavators / MODEL
FY10D
Compare FY10D digging geometry, machine dimensions and undercarriage measurements. Pump and motor identifiers are listed separately from hydraulic performance ratings.

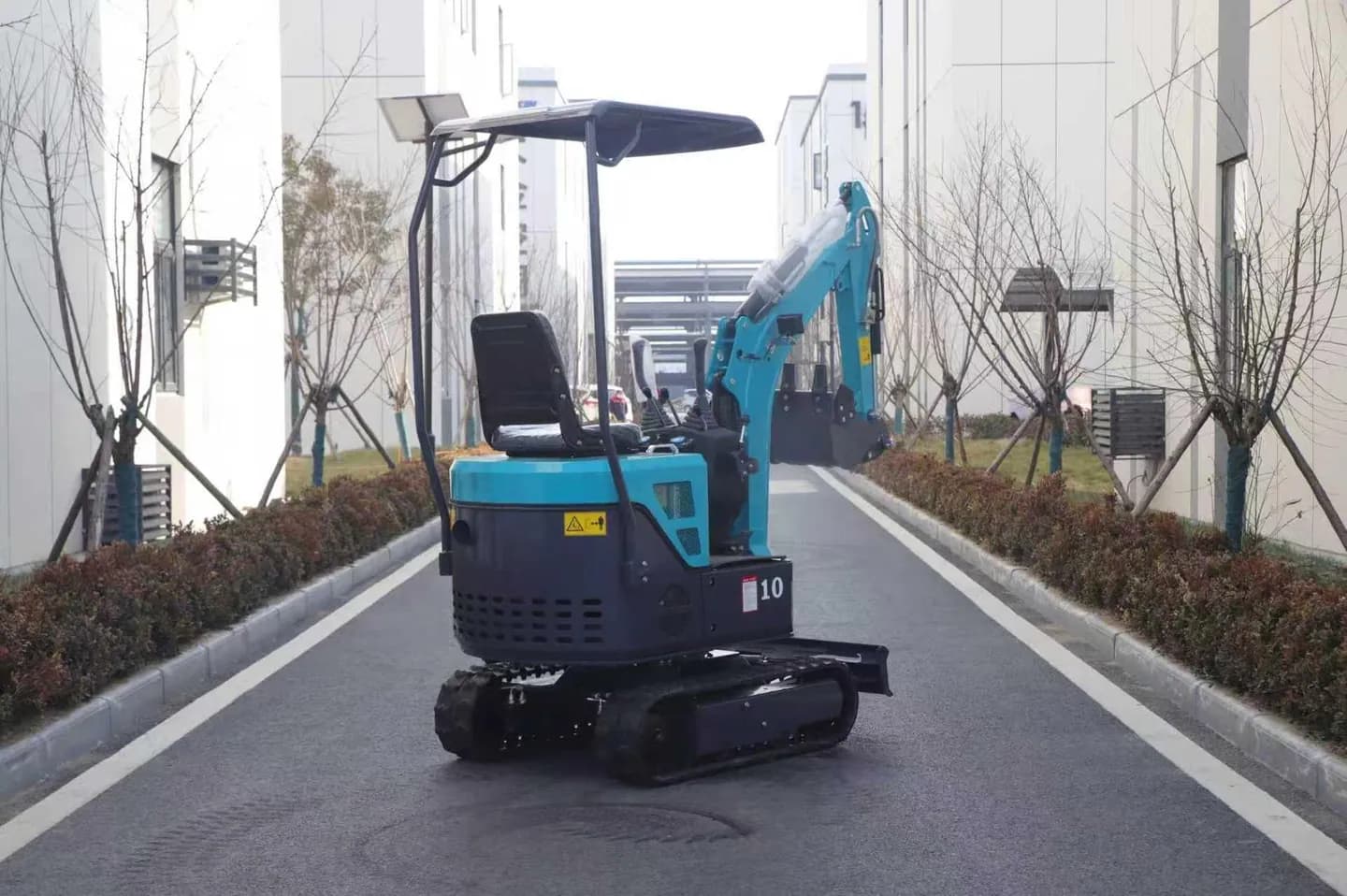

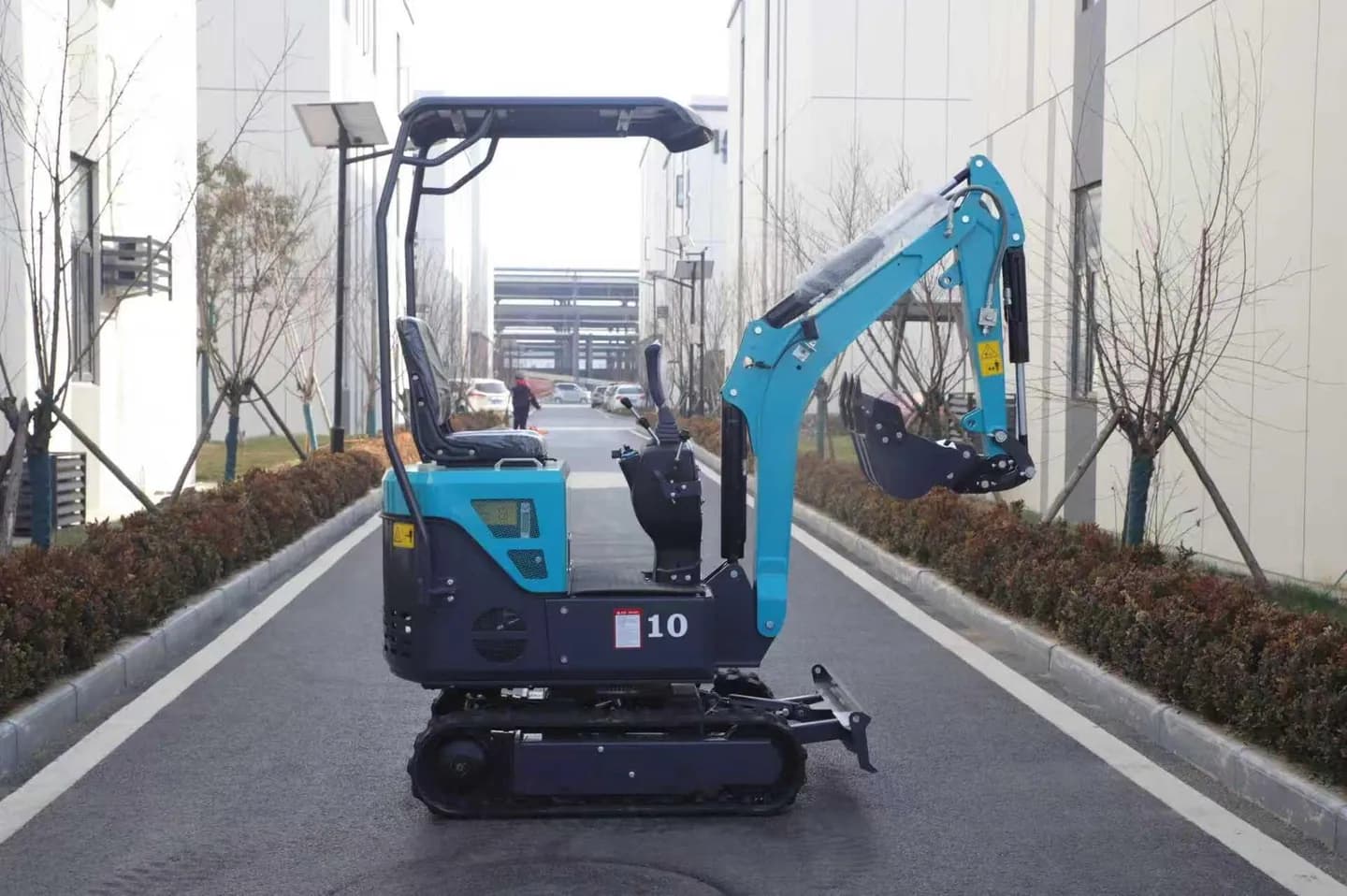

Images are representative. Final configuration may vary by specification.
Maximum digging depth1,650 mm
Dimensions & weight
| Weight | 1,000 kg |
|---|---|
| Dimensions (L × W × H) | 2775 × 930 × 2219 mm |
| Platform ground clearance | 380 mm |
KOOP 192F configuration
| Platform rear turning radius | 784 mm |
|---|
Keep the stated weight definition. Confirm fuel, attachments and other measurement conditions for transport planning; an unspecified weight is not a verified operating weight.
Working range
| Bucket width | 380 mm |
|---|---|
| Maximum digging depth | 1,650 mm |
| Maximum digging height | 2,610 mm |
| Maximum dumping height | 1,850 mm |
| Digging radius at ground level | 2,850 mm |
KOOP 192F configuration
| Maximum vertical digging depth | 1,375 mm |
|---|---|
| Maximum blade lift height | 345 mm |
| Blade digging depth | 255 mm |
Engine
| Engine | KOOP 192F |
|---|
Undercarriage & travel
| Travel speed | 1.5 km/h |
|---|---|
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
KOOP 192F configuration
| Wheelbase | 910 mm |
|---|---|
| Total track length | 1,230 mm |
| Chassis width | 896 mm |
| Track height | 320 mm |
Track shoe width, track gauge and chassis width describe different dimensions. Confirm the complete machine envelope and chassis setting for access.
Hydraulics & capacities
KOOP 192F configuration
| Main pump | G5-6 |
|---|---|
| Swing motor | SANYANG (BMRS 250) |
| Travel motor | SANYANG (BMT-245) |
Pump and motor identifiers do not specify available attachment flow. Confirm auxiliary flow, pressure and circuit compatibility for the selected equipment.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output.
Specify your configuration
Confirm the supplied engine and its matched power rating, the complete bucket specification and the machine weight measurement basis. The KOOP configuration does not assign the same components or dimensions to optional engines.
