Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Mini Excavators / MODEL
FY12G
FY12G specifications cover transport length, working range and undercarriage geometry for the Kubota Z482 configuration. Track gauge and shoe width are separate measurements.

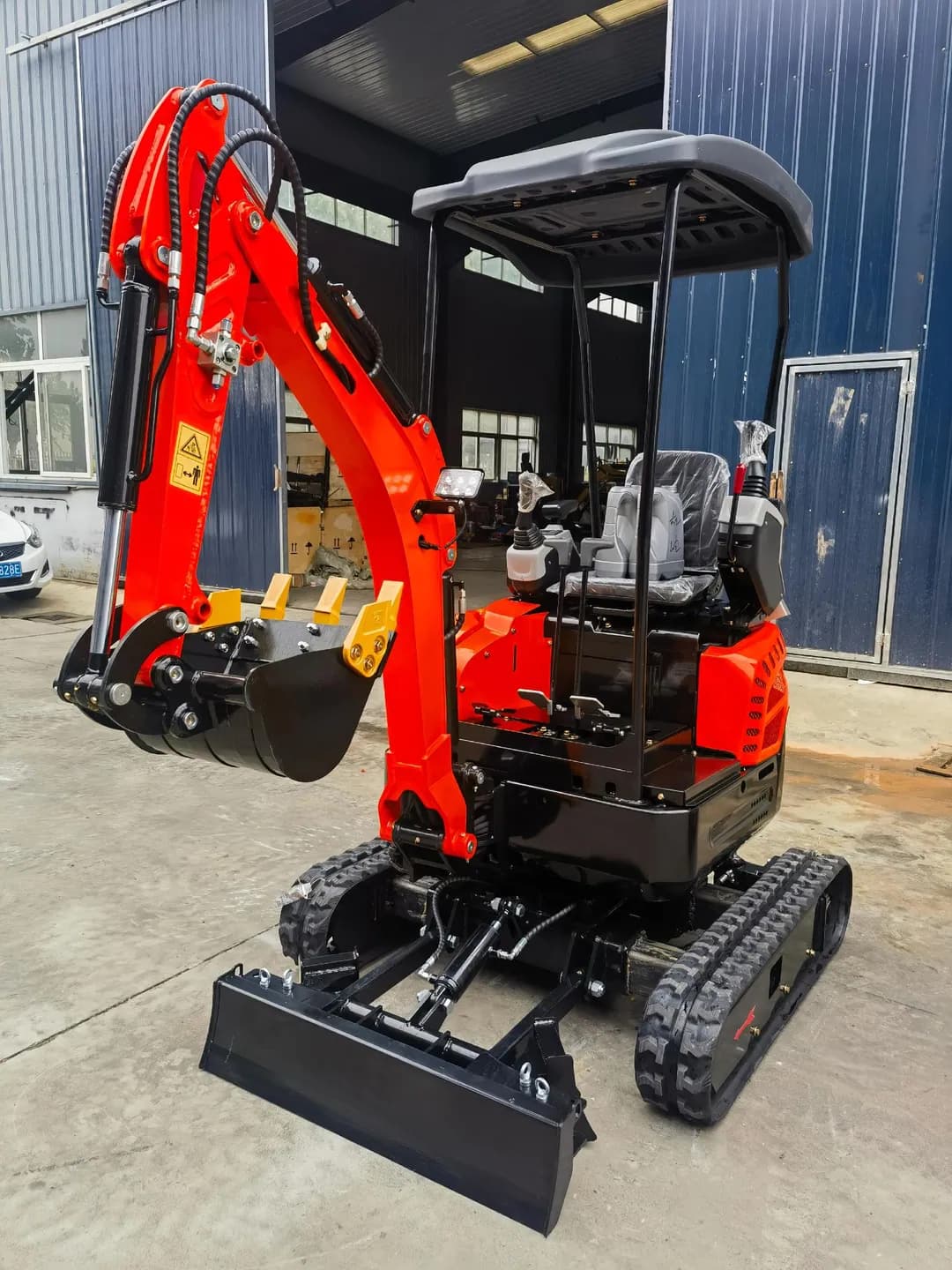

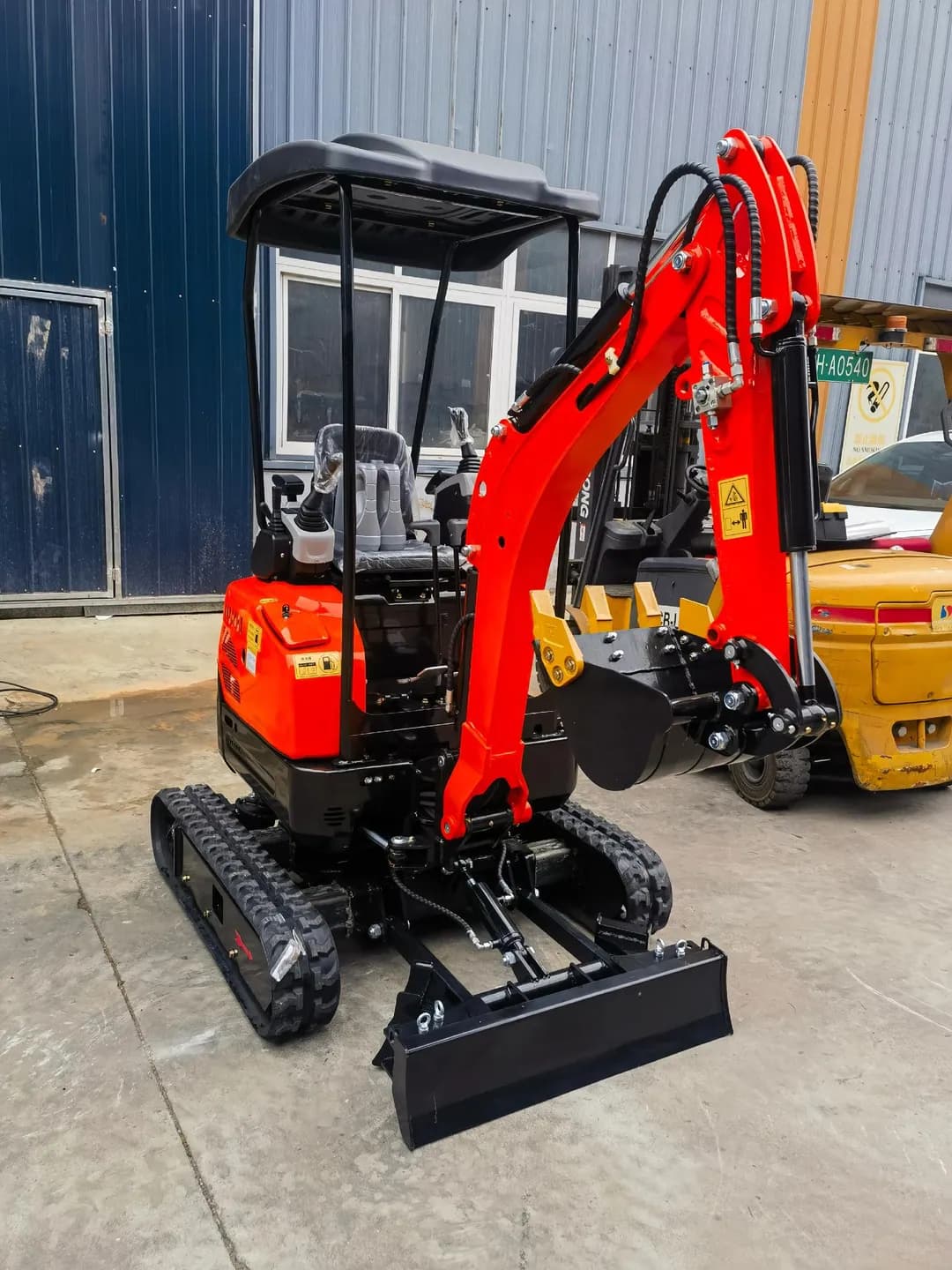

Images are representative. Final configuration may vary by specification.
Maximum digging depth1,850 mm
Bucket capacity0.02 m³
Dimensions & weight
| Transport length | 2,380 mm |
|---|---|
| Overall height (cab roof) | 2,270 mm |
| Tail swing radius | 820 mm |
Kubota Z482 configuration
| Working device | Backhoe |
|---|
Working range
| Bucket capacity | 0.02 m³ |
|---|---|
| Maximum digging height | 2,455 mm |
| Maximum dumping height | 1,620 mm |
| Maximum digging depth | 1,850 mm |
| Maximum digging reach | 2,920 mm |
Kubota Z482 configuration
| Blade height above ground | 110 mm |
|---|---|
| Blade excavation depth | 195 mm |
Bucket volume is not lifting capacity or an allowable load. Read digging and unloading heights and the stated radius measurement separately.
Engine
| Engine | Kubota Z482 |
|---|
Undercarriage & travel
| Track shoe width | 180 mm |
|---|
Kubota Z482 configuration
| Track gauge | 750 mm |
|---|---|
| Track grounding length | 890 mm |
| Track length | 1,235 mm |
Track shoe width, track gauge and chassis width describe different dimensions. Confirm the complete machine envelope and chassis setting for access.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Specify your configuration
Request the overall and upper-body width drawing, the machine weight definition and the engine rating. Confirm turning-envelope reference points and the supplied equipment before access or transport planning.
Items listed as standard in the specification: Track shoe width (180 mm). Confirm the complete equipment list for the quoted configuration.
