Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Mini Excavators / MODEL
FY12
Review FY12 machine dimensions and digging range alongside its Kubota D722 engine reference. Engine construction and pump identity describe different parts of the machine.

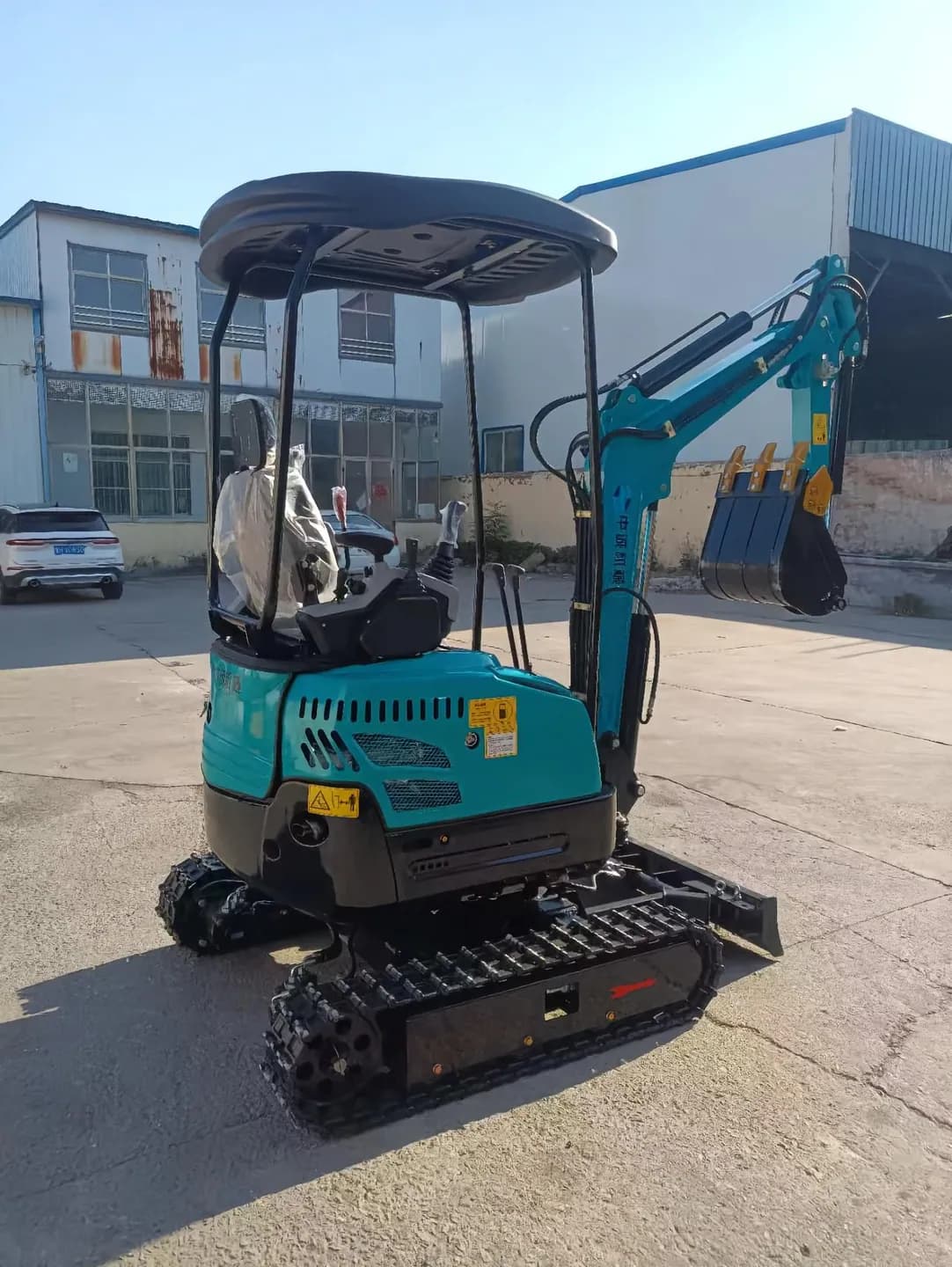

Images are representative. Final configuration may vary by specification.
Maximum digging depth1,750 mm
Rated Power10.2 kW @ 2500 rpm
Dimensions & weight
| Weight | 1,200 kg |
|---|---|
| Dimensions (L × W × H) | 2775 × 930 × 2219 mm |
Keep the stated weight definition. Confirm fuel, attachments and other measurement conditions for transport planning; an unspecified weight is not a verified operating weight.
Working range
| Bucket width | 380 mm |
|---|---|
| Maximum digging depth | 1,750 mm |
| Maximum digging height | 2,610 mm |
Engine
| Engine | Kubota D722 |
|---|---|
| Rated Power | 10.2 kW @ 2500 rpm |
Kubota D722 configuration
| Engine construction | Three cylinders, water cooled |
|---|
Hydraulics & capacities
| Main pump | G5-6 |
|---|
Pump and motor identifiers do not specify available attachment flow. Confirm auxiliary flow, pressure and circuit compatibility for the selected equipment.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Specify your configuration
Confirm the bucket specification, travel-speed units, battery rating and the component associated with the displacement figure. Identify any optional travel motor by model and rating for the quoted machine.
