Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Mini Excavators / MODEL
FY10G
FY10G measurements distinguish overall width, total track width and track gauge. Ground-level digging radius and maximum digging radius remain separate working-envelope measurements.

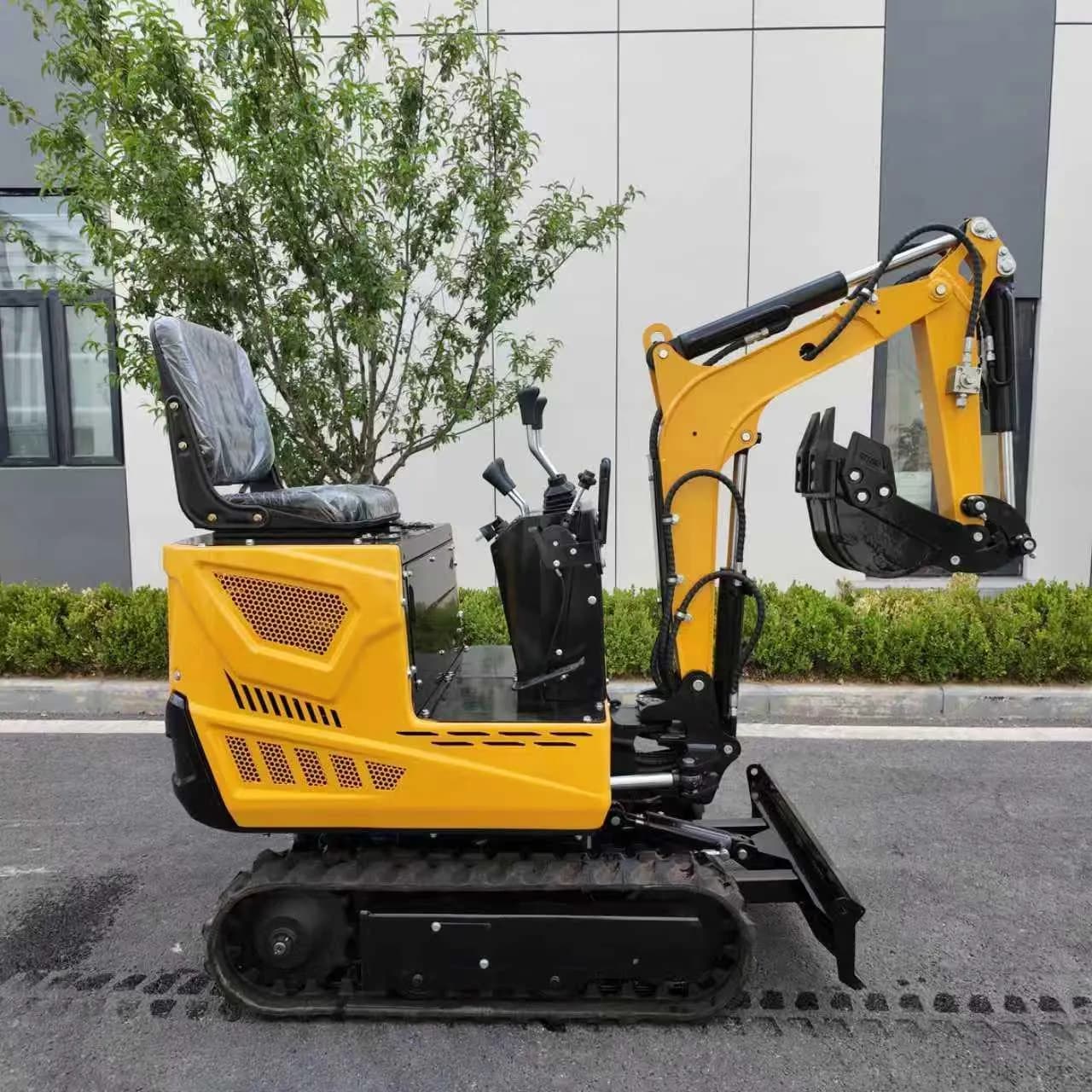

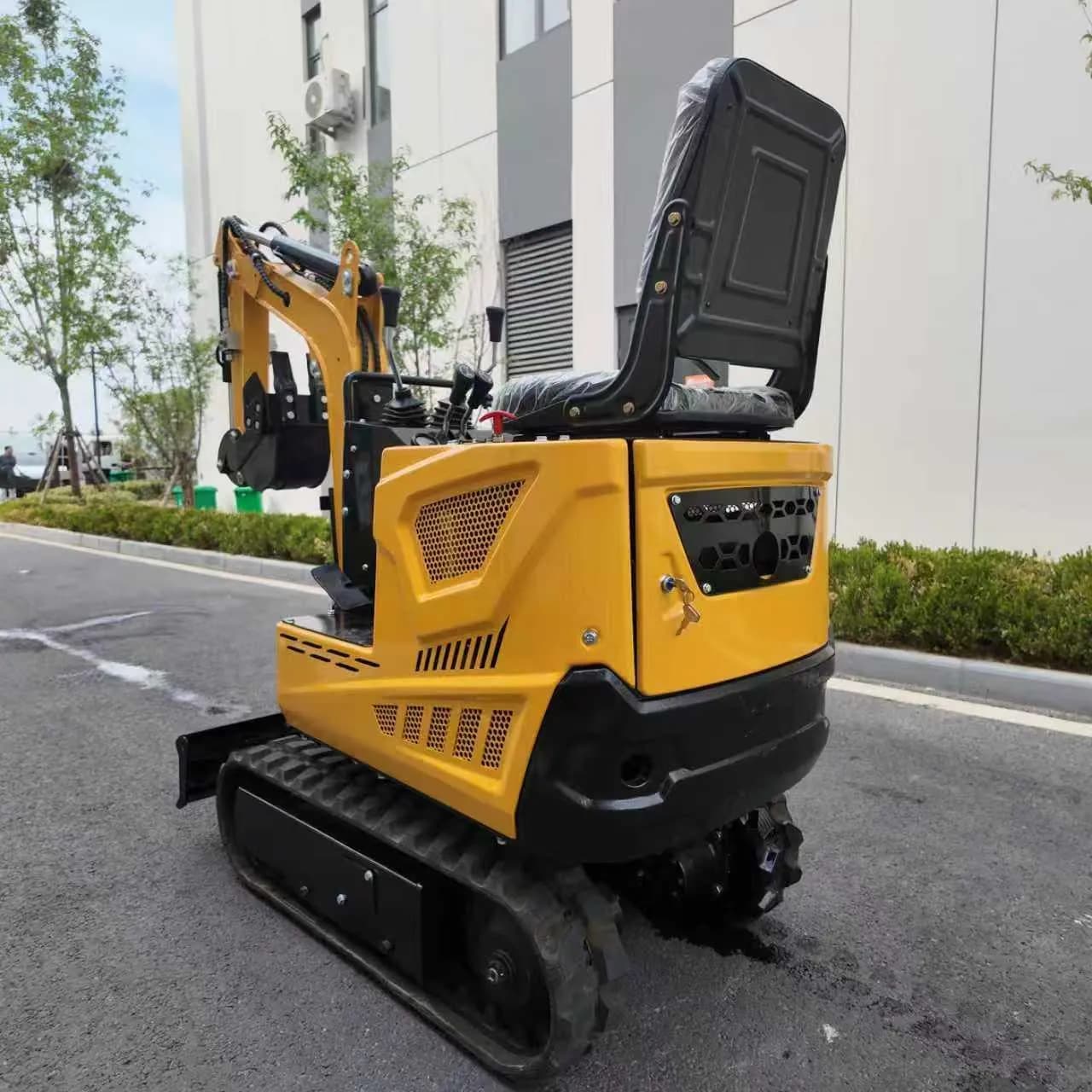

Images are representative. Final configuration may vary by specification.
Maximum digging depth1,855 mm
Overall width940 mm
Rated power10.2 kW @ 2500 rpm
Dimensions & weight
| Weight | 1,000 kg |
|---|---|
| Overall / transport length | 4000 / 2380 mm |
| Overall width | 940 mm |
| Overall height (cab roof) | 2,268 mm |
| Minimum ground clearance | 100 mm |
| Tail swing radius | 810 mm |
Keep the stated weight definition. Confirm fuel, attachments and other measurement conditions for transport planning; an unspecified weight is not a verified operating weight.
Working range
| Maximum digging height | 2,455 mm |
|---|---|
| Maximum dumping height | 1,605 mm |
| Maximum digging depth | 1,855 mm |
| Digging radius at ground level | 3,050 mm |
| Maximum digging radius | 3,130 mm |
Engine
| Rated power | 10.2 kW @ 2500 rpm |
|---|
Undercarriage & travel
| Total track width | 930 mm |
|---|---|
| Track shoe width | 180 mm |
| Track gauge F | 750 mm |
| Wheelbase H | 884 mm |
| Track ground length I | 962 mm |
| Track length J | 1,204 mm |
Track shoe width, track gauge and chassis width describe different dimensions. Confirm the complete machine envelope and chassis setting for access.
Hydraulics & capacities
| Main valve | Beifang |
|---|
Pump and motor identifiers do not specify available attachment flow. Confirm auxiliary flow, pressure and circuit compatibility for the selected equipment.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Specify your configuration
Identify the supplied engine together with its rated output and speed. Confirm bucket capacity and the meaning of any associated mass figure, rotation-speed units, and the dimensions for that configuration.
Items listed as standard in the specification: Track shoe width (180 mm). Confirm the complete equipment list for the quoted configuration.
