Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Mini Excavators / MODEL
FY12P
Compare FY12P transport and machine dimensions with its KOOP 192F engine reference. Track length and wheel pitch retain their own measurement labels.

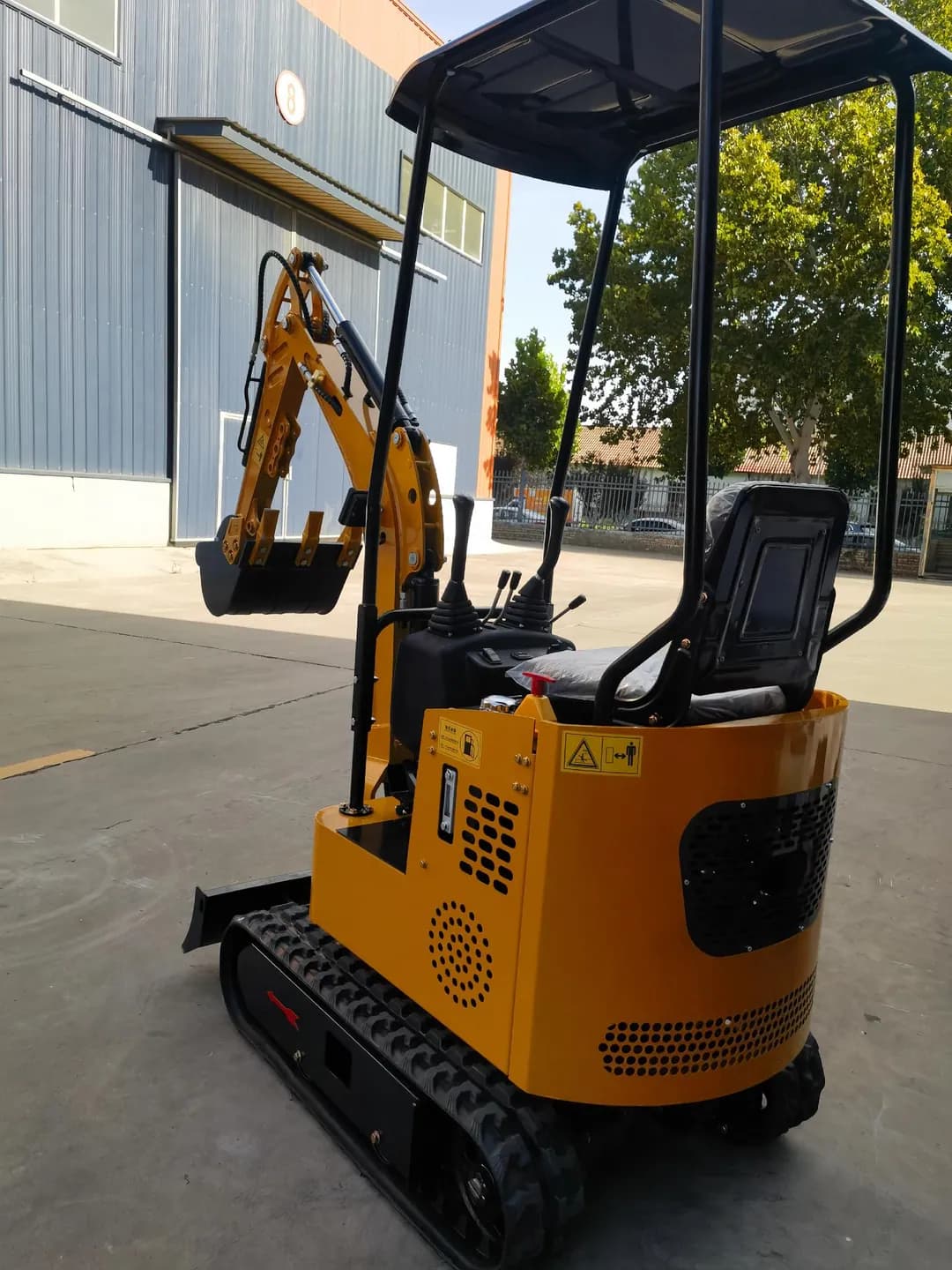

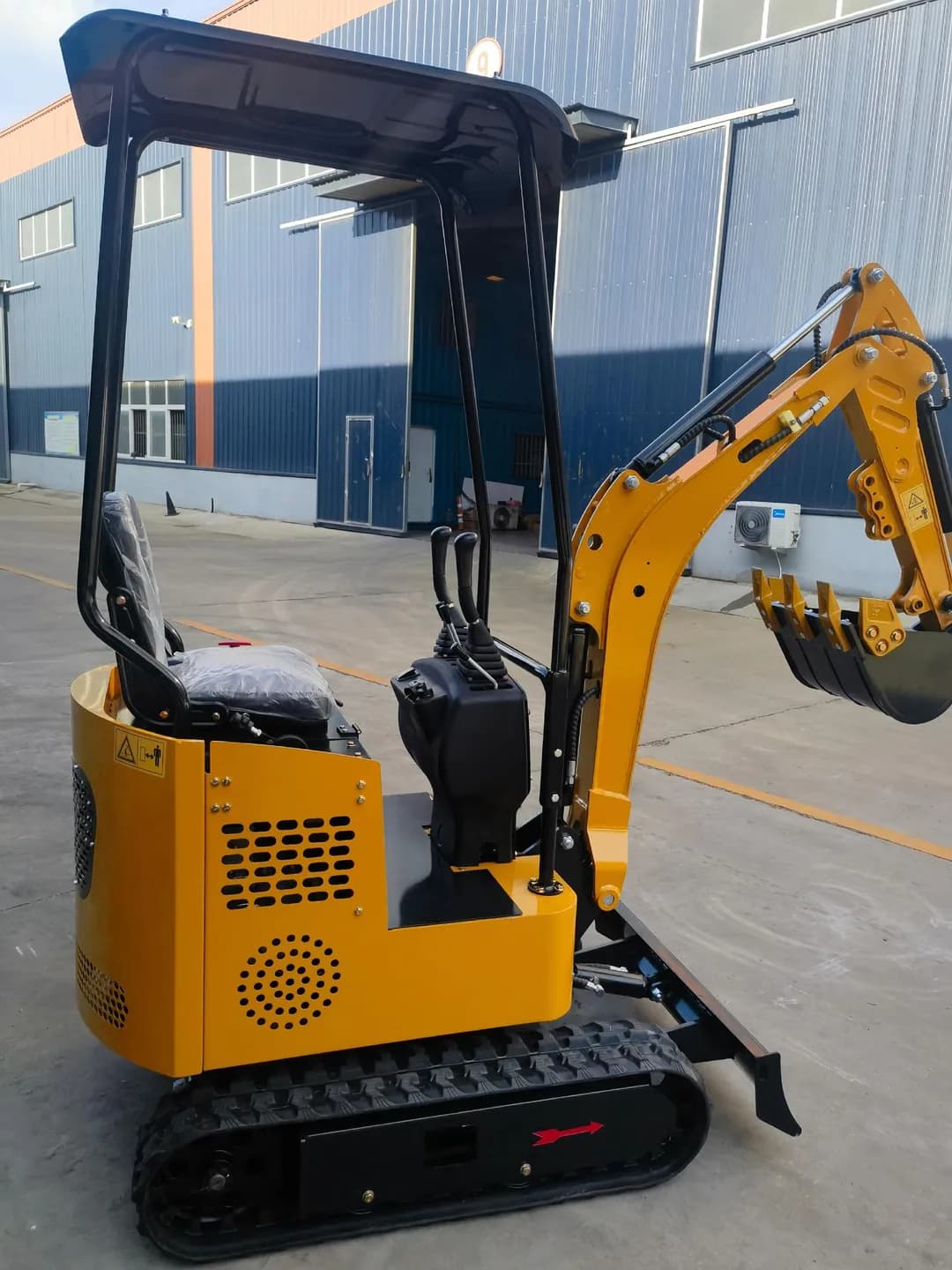

Images are representative. Final configuration may vary by specification.
Operating Weight1,200 kg
Engine Power7 kW
Bucket capacity0.02 m³
Dimensions & weight
| Operating Weight | 1,200 kg |
|---|---|
| Transport length | 2,100 mm |
| Overall height | 2,150 mm |
| Dimensions (L × W × H) | 2200 × 940 × 2150 mm |
Keep the stated weight definition. Confirm fuel, attachments and other measurement conditions for transport planning; an unspecified weight is not a verified operating weight.
Working range
| Bucket capacity | 0.02 m³ |
|---|---|
| Bucket width | 400 mm |
Bucket volume is not lifting capacity or an allowable load. Read digging and unloading heights and the stated radius measurement separately.
Engine
| Engine | KOOP 192F |
|---|---|
| Engine Power | 7 kW |
Undercarriage & travel
| Track width | 180 mm |
|---|
KOOP 192F configuration
| Track length | 1,200 mm |
|---|---|
| Wheel pitch | 580 mm |
Track shoe width, track gauge and chassis width describe different dimensions. Confirm the complete machine envelope and chassis setting for access.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Specify your configuration
Confirm digging and unloading dimensions on a matched working-envelope drawing. Specify the selected engine, chassis setting, cab, pilot control and boom-swing requirements; alternatives are not one standard package.
