Mini Excavators / MODEL
FY17-2
FY17-2 specifications separate bucket and arm digging forces, hydraulic-system pressure and slew speed. Listed blade and boom angles belong to the stated configuration, with engine pairing to be confirmed.

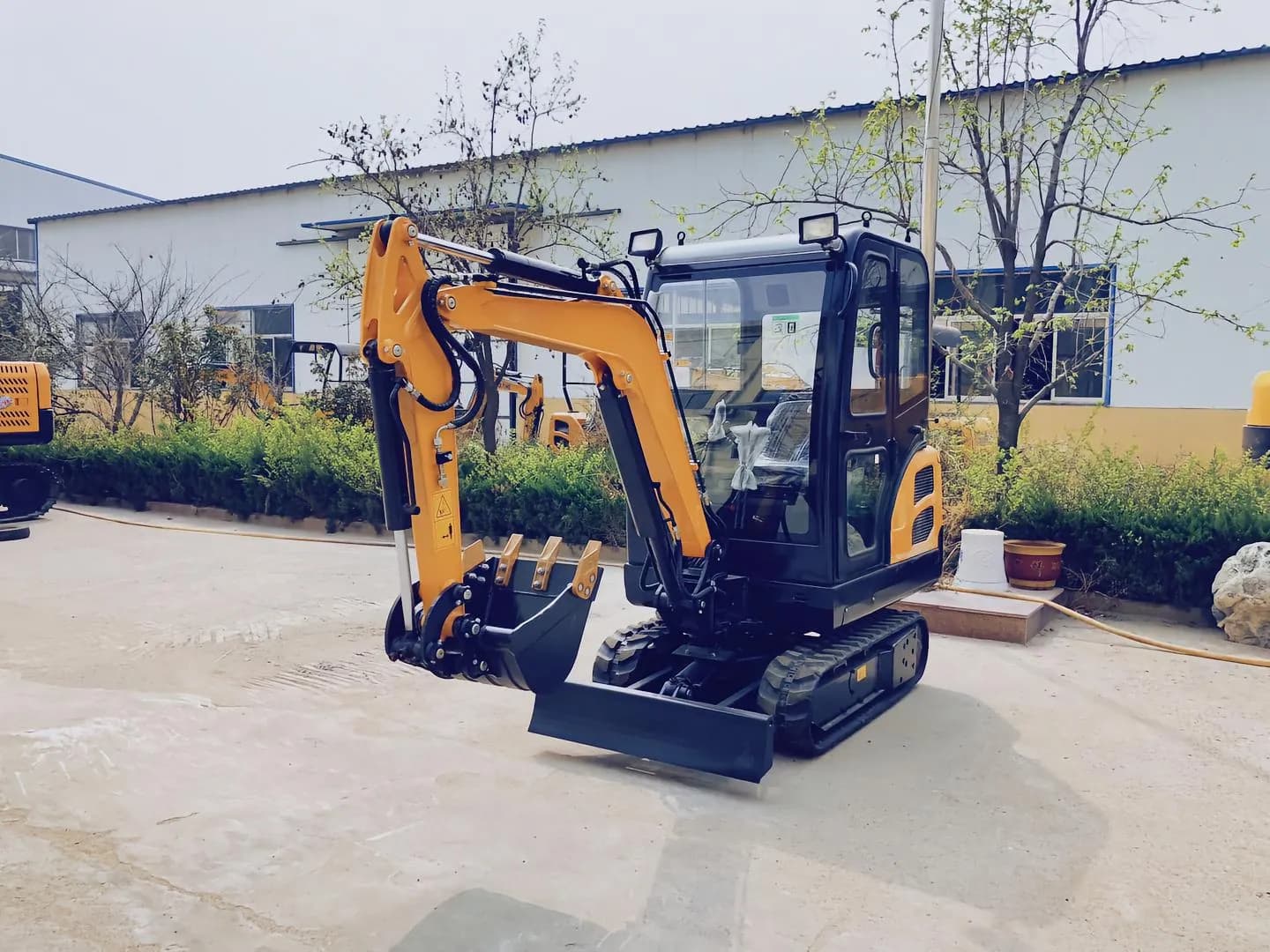

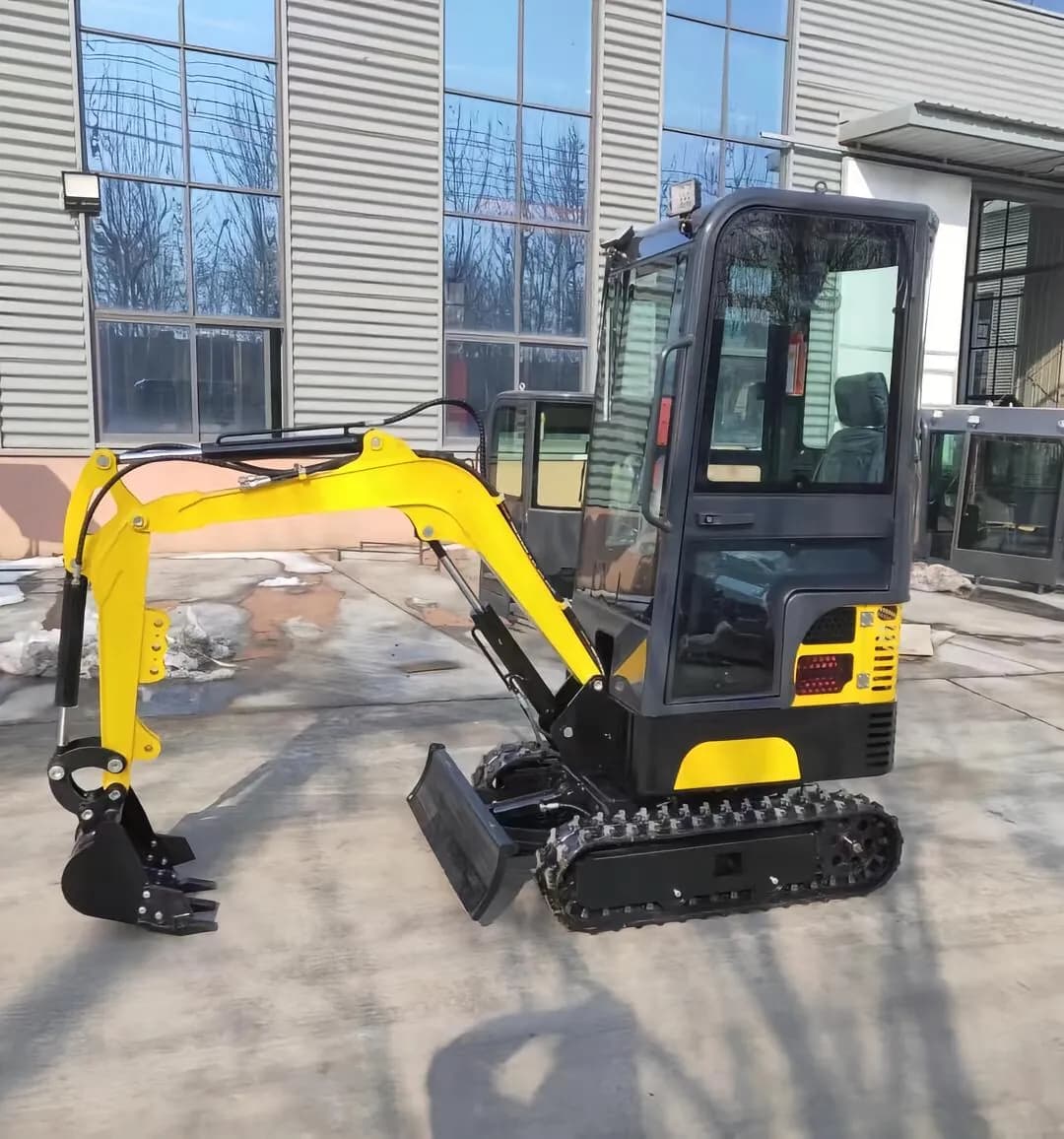

Images are representative. Final configuration may vary by specification.
Bucket capacity0.03 m³
Working range
| Bucket capacity | 0.03 m³ |
|---|---|
| Maximum dumping height | 2,100 mm |
| Maximum digging reach | 2,400 mm |
| Bucket digging force | 18 kN |
| Arm digging force | 11 kN |
Listed configuration — engine pairing to confirm
| Maximum blade lifting height | 325 mm |
|---|---|
| Maximum blade cutting depth | 175 mm |
| Boom swing angle, left | 75 ° |
| Boom swing angle, right | 45 ° |
Bucket volume is not lifting capacity or an allowable load. Read digging and unloading heights and the stated radius measurement separately.
Undercarriage & travel
| Travel speed | 3.5 km/h |
|---|
Listed configuration — engine pairing to confirm
| Track shoes per side | 38 |
|---|---|
| Upper rollers per side | 1 |
| Bottom rollers per side | 3 |
| Swing speed | 9 rpm |
| Track length on ground | 1,300 mm |
Hydraulics & capacities
| Hydraulic pressure | 18.2 MPa |
|---|
System pressure does not establish available auxiliary flow. Confirm auxiliary flow, pressure and circuit compatibility for the selected equipment.
Reading these specifications
Specify your configuration
Request one matched engine, power, weight and dimension sheet. Confirm track-width definitions, working-envelope dimensions and whether the quoted machine includes the listed boom-swing arrangement.
Items listed as standard in the specification: Bucket capacity (0.03 m³). Confirm the complete equipment list for the quoted configuration.
