Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Mini Excavators / MODEL
FY20U
FY20U measurements distinguish upper-body width, track dimensions and rear turning radius. Boom-tip digging force and bucket digging force are listed under their separate definitions.

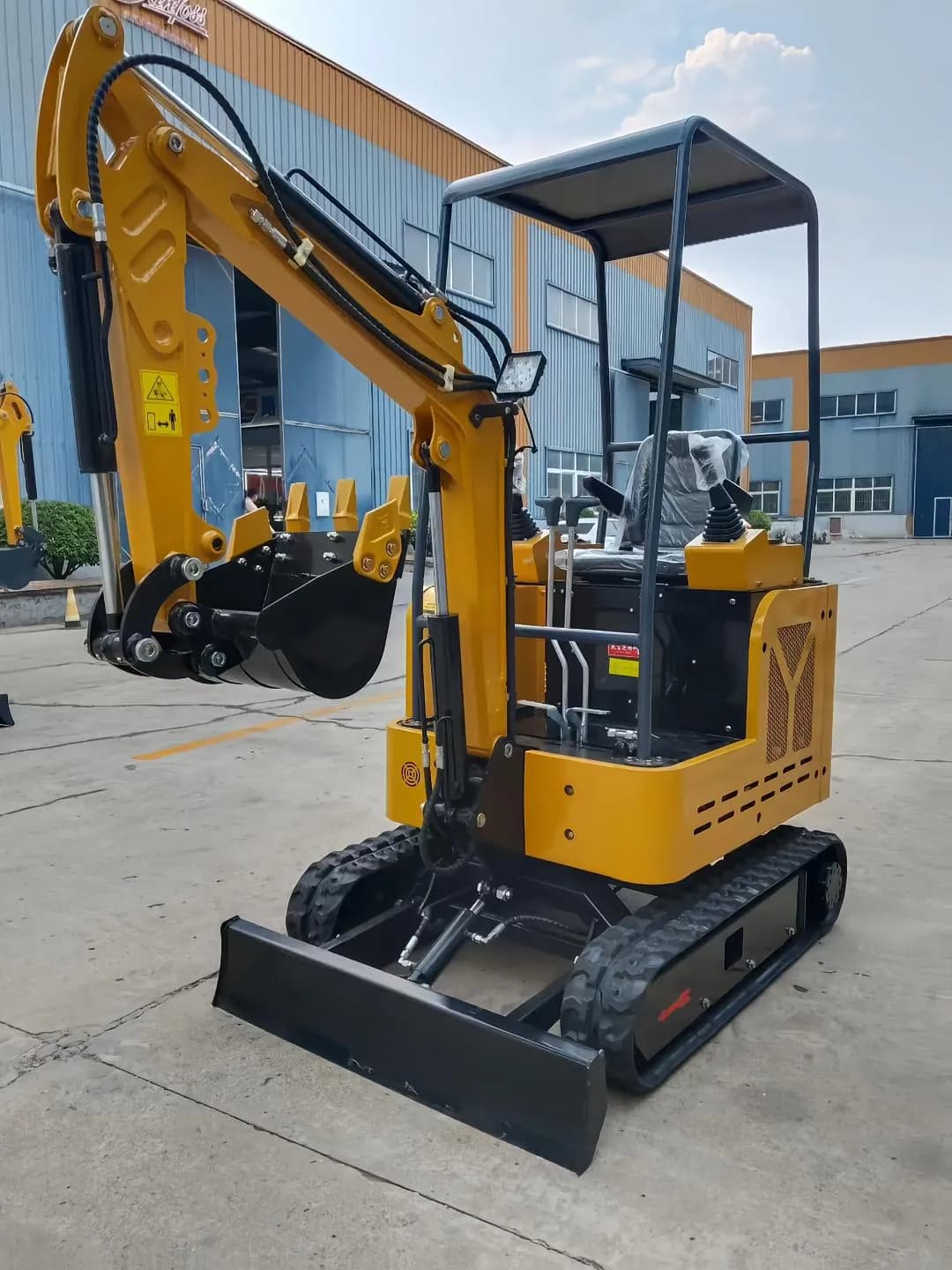

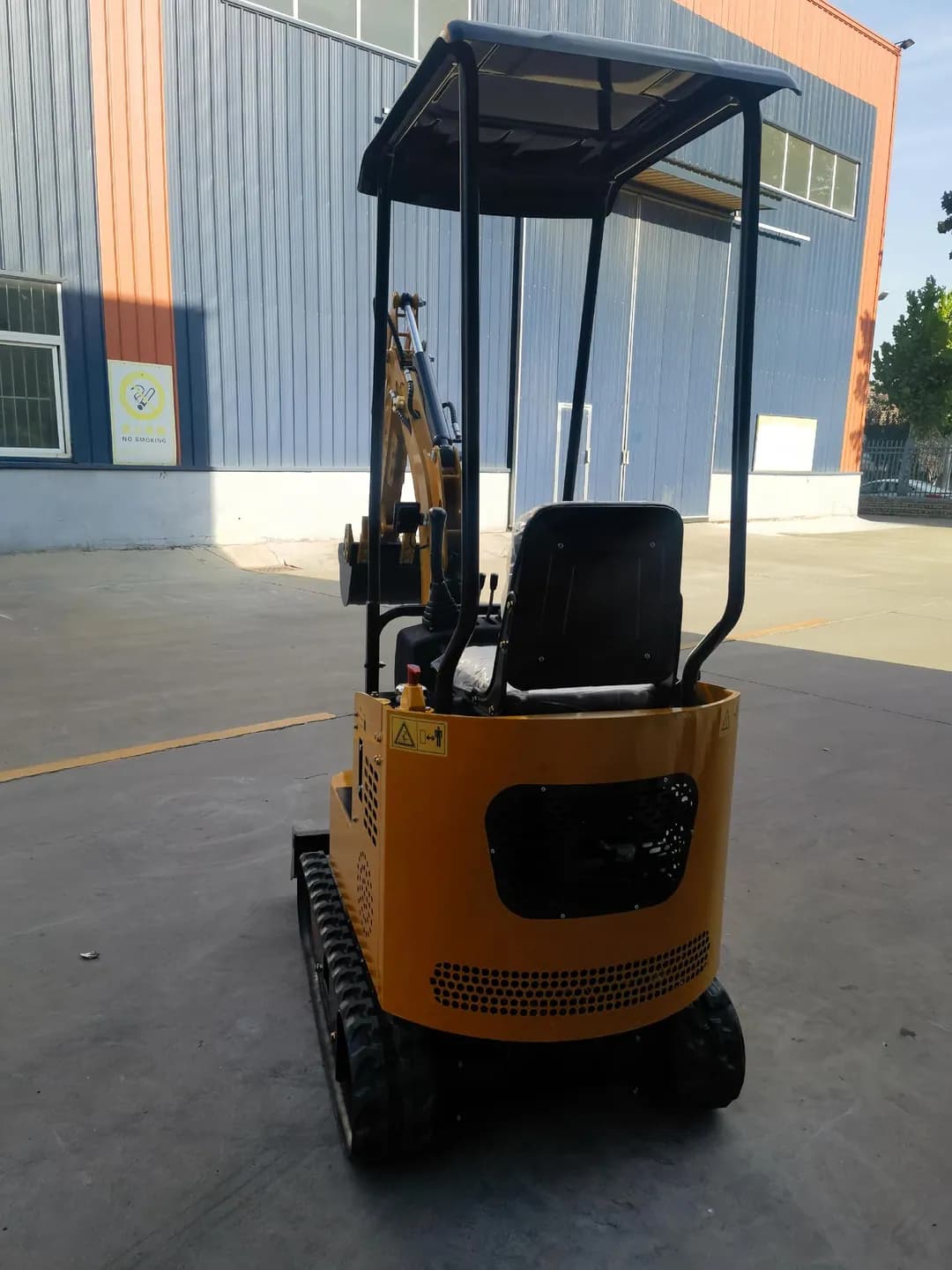

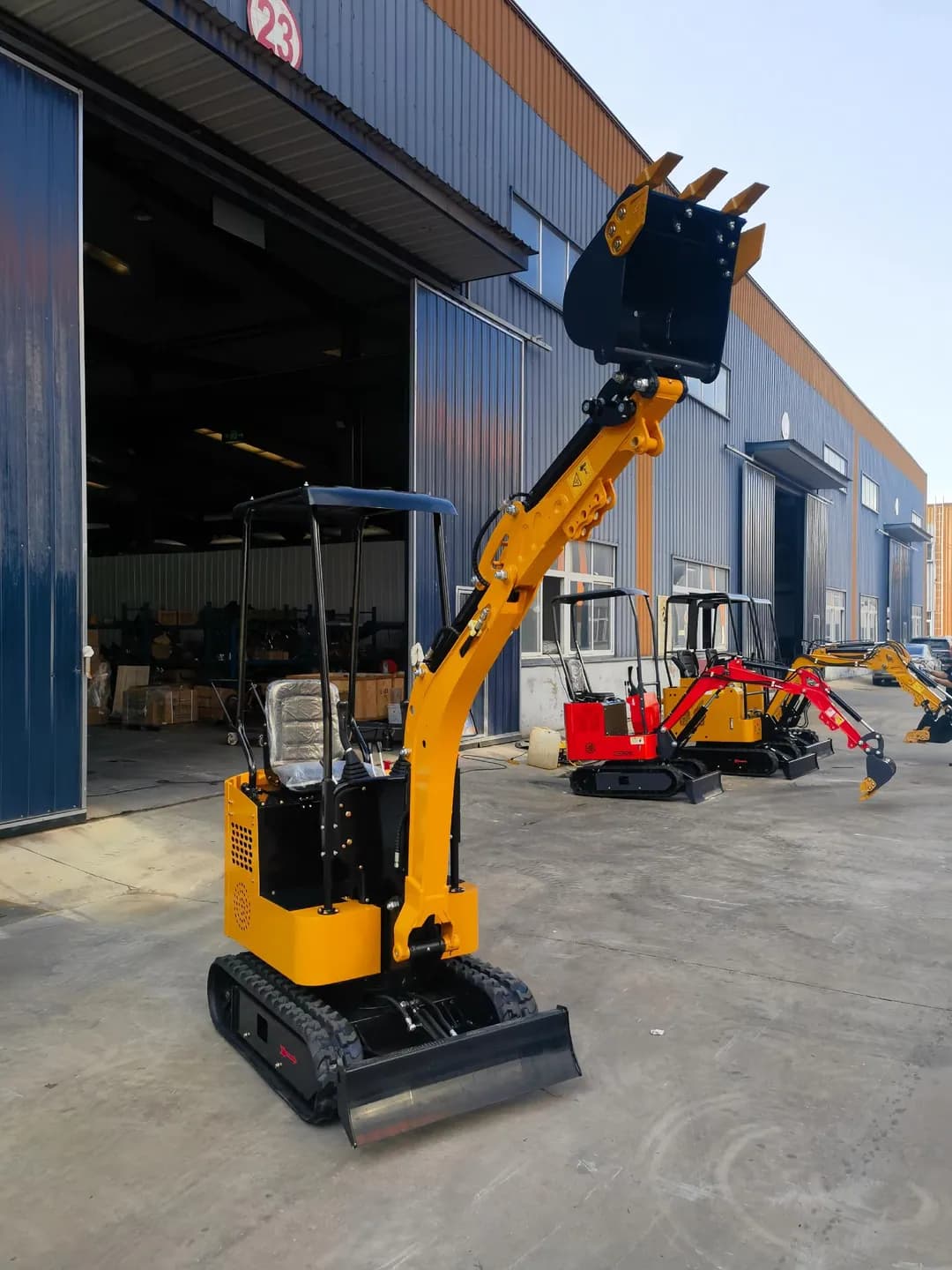

Images are representative. Final configuration may vary by specification.
Working weight1,650 kg
Maximum digging depth2,042 mm
Bucket capacity0.04 m³
Dimensions & weight
| Working weight | 1,650 kg |
|---|---|
| Overall / transport length | 3,582 mm |
| Overall height (cab roof) | 2,498 mm |
| Ground clearance | 150 mm |
| Upper-body width D | 998 mm |
| Rear turning radius I | 662 mm |
Keep the stated weight definition. Confirm fuel, attachments and other measurement conditions for transport planning; an unspecified weight is not a verified operating weight.
Working range
| Bucket capacity | 0.04 m³ |
|---|---|
| Maximum digging height | 3,276 mm |
| Maximum dumping height | 2,415 mm |
| Maximum digging depth | 2,042 mm |
| Maximum digging reach | 3,780 mm |
| Bucket digging force | 16 kN |
| Dozer blade height above ground R | 250 mm |
| Digging force at boom tip | 9.5 kN |
Bucket volume is not lifting capacity or an allowable load. Read digging and unloading heights and the stated radius measurement separately.
Engine
| Engine | Kubota |
|---|
Undercarriage & travel
| Track width | 230 mm |
|---|---|
| Track length K | 1,560 mm |
| Ground pressure | 30 kPa |
| Rotational speed | 9.5 rpm |
Track shoe width, track gauge and chassis width describe different dimensions. Confirm the complete machine envelope and chassis setting for access.
Hydraulics & capacities
| Valve assembly | JX10-01 |
|---|---|
| Pump model | TFA10VO28LADS-53R-VSC12N00-JNJT-01 |
| Travel motor | FTM01A-012006PV037HL01-03 |
Pump and motor identifiers do not specify available attachment flow. Confirm auxiliary flow, pressure and circuit compatibility for the selected equipment.
Reading these specifications
Specify your configuration
Confirm the engine identifier and rating units, chassis-width states and the complete machine envelope. Request the supplied protective-structure specification and dimension drawing; component model numbers do not establish auxiliary hydraulic capacity.
Items listed as standard in the specification: Track width (230 mm). Confirm the complete equipment list for the quoted configuration.
