Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Mini Excavators / MODEL
FY25-2
FY25-2 combines separate retracted and extended chassis widths with its Kubota D1105 configuration. Digging forces, slew speed and left/right boom-swing angles are distinct measurements.

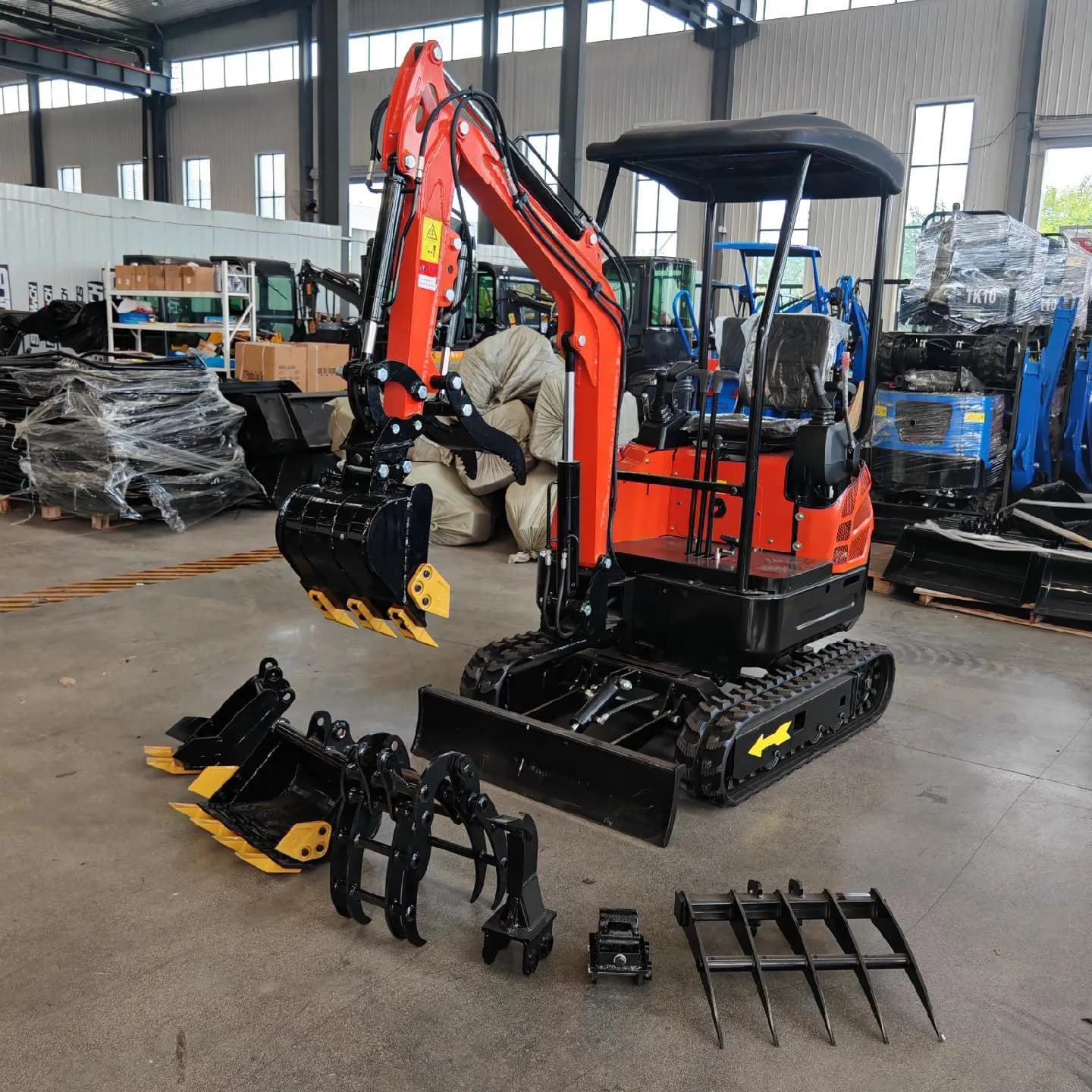

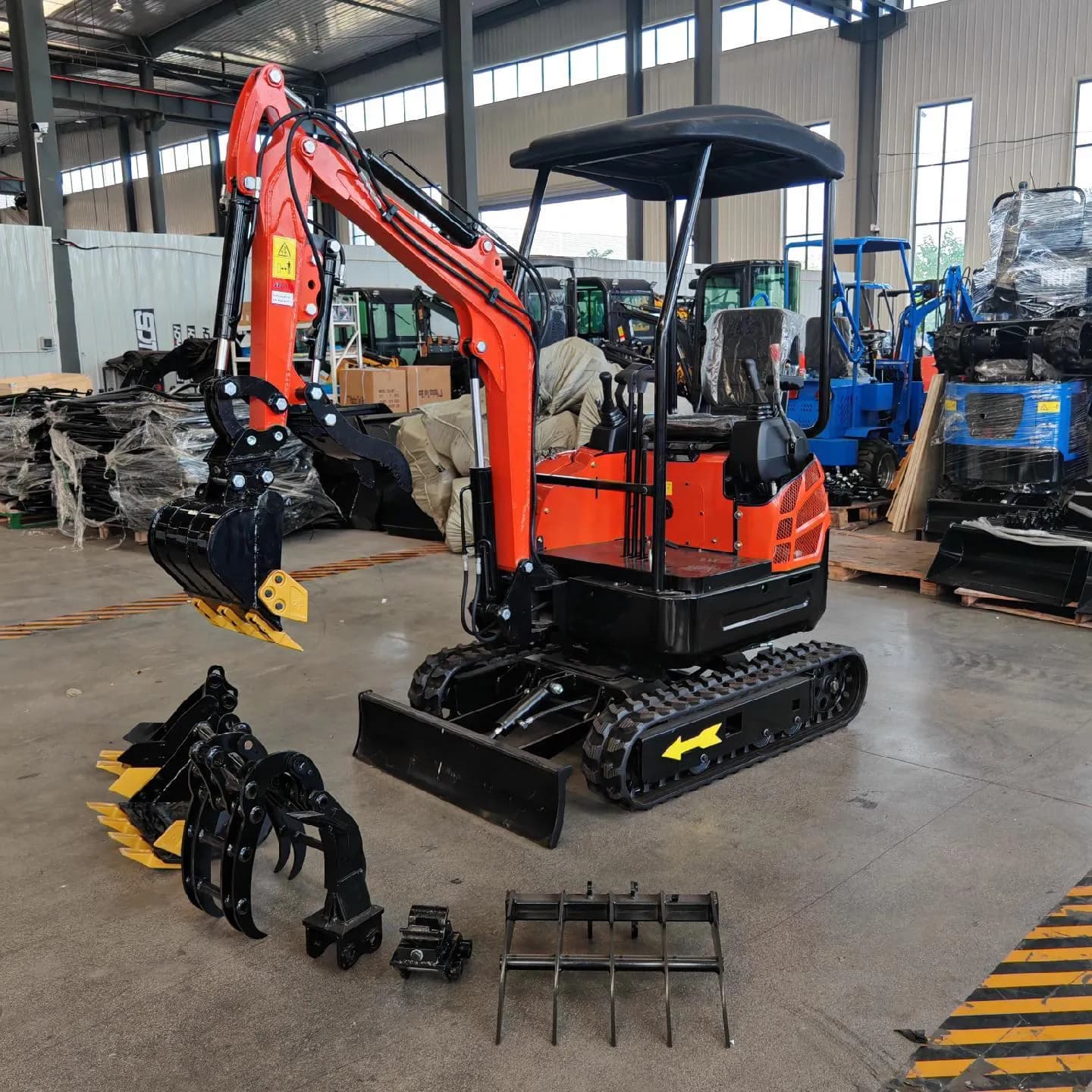

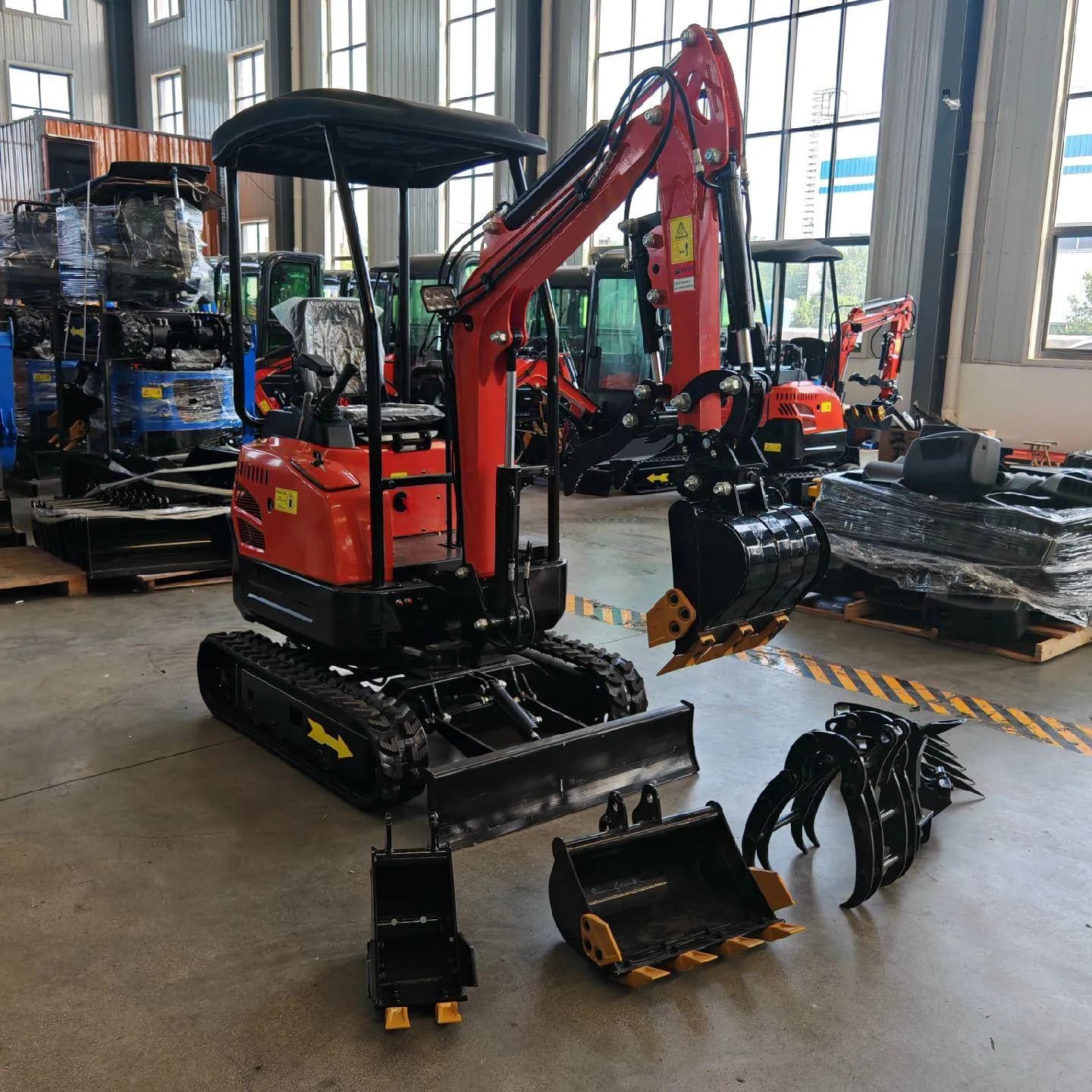

Images are representative. Final configuration may vary by specification.
Maximum digging depth2,500 mm
Power /Rotation speed14.1 kW @ 2000 rpm
Bucket capacity0.07 m³
Dimensions & weight
| Chassis width, retracted | 1,300 mm |
|---|---|
| Chassis width, extended | 1,500 mm |
| Ground clearance | 230 mm |
Kubota D1105 configuration
| Tail swing radius | 750 mm |
|---|---|
| Overall length | 3,850 mm |
| Overall height | 2,290 mm |
Working range
| Bucket capacity | 0.07 m³ |
|---|---|
| Maximum digging height | 3,980 mm |
| Maximum dumping height | 2,610 mm |
| Maximum digging depth | 2,500 mm |
| Maximum digging reach | 4,130 mm |
| Bucket digging force | 19.5 kN |
| Arm digging force | 11 kN |
Kubota D1105 configuration
| Maximum vertical digging depth | 2,050 mm |
|---|---|
| Maximum blade lifting height | 280 mm |
| Maximum blade cutting depth | 310 mm |
| Boom swing angle, left | 75 ° |
| Boom swing angle, right | 55 ° |
Bucket volume is not lifting capacity or an allowable load. Read digging and unloading heights and the stated radius measurement separately.
Engine
| Engine | Kubota D1105 |
|---|---|
| Power /Rotation speed | 14.1 kW @ 2000 rpm |
Kubota D1105 configuration
| Engine cylinders | 3 |
|---|
Undercarriage & travel
| Track shoe width | 250 mm |
|---|
Kubota D1105 configuration
| Track shoes per side | 38 |
|---|---|
| Upper rollers per side | 1 |
| Bottom rollers per side | 3 |
| Swing speed | 9.5 rpm |
| Track length on ground | 1,300 mm |
Track shoe width, track gauge and chassis width describe different dimensions. Confirm the complete machine envelope and chassis setting for access.
Hydraulics & capacities
| Hydraulic pressure | 21.5 MPa |
|---|
System pressure does not establish available auxiliary flow. Confirm auxiliary flow, pressure and circuit compatibility for the selected equipment.
Reading these specifications
Specify your configuration
Confirm machine weight and its measurement basis, travel-speed modes and units, and the supplied chassis and boom options. Match the engine and dimension sheet to the quoted FY25-2; FY25 measurements do not apply.
Items listed as standard in the specification: Bucket capacity (0.07 m³). Confirm the complete equipment list for the quoted configuration.
