Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Mini Excavators / MODEL
FY25
FY25 has its own dimensions and working-range references. Upper-body width, track gauge and track lengths are shown separately for configuration and transport discussions.

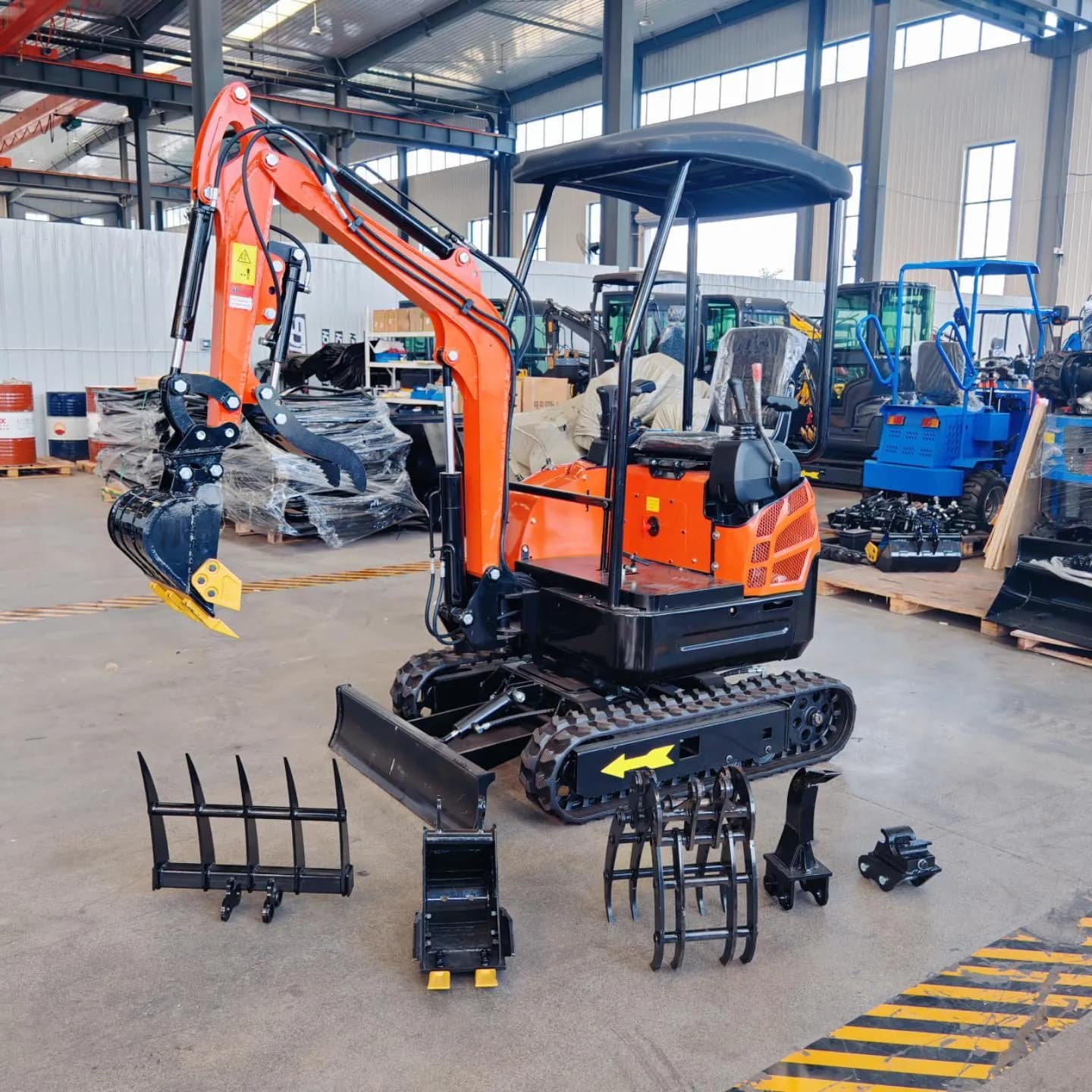

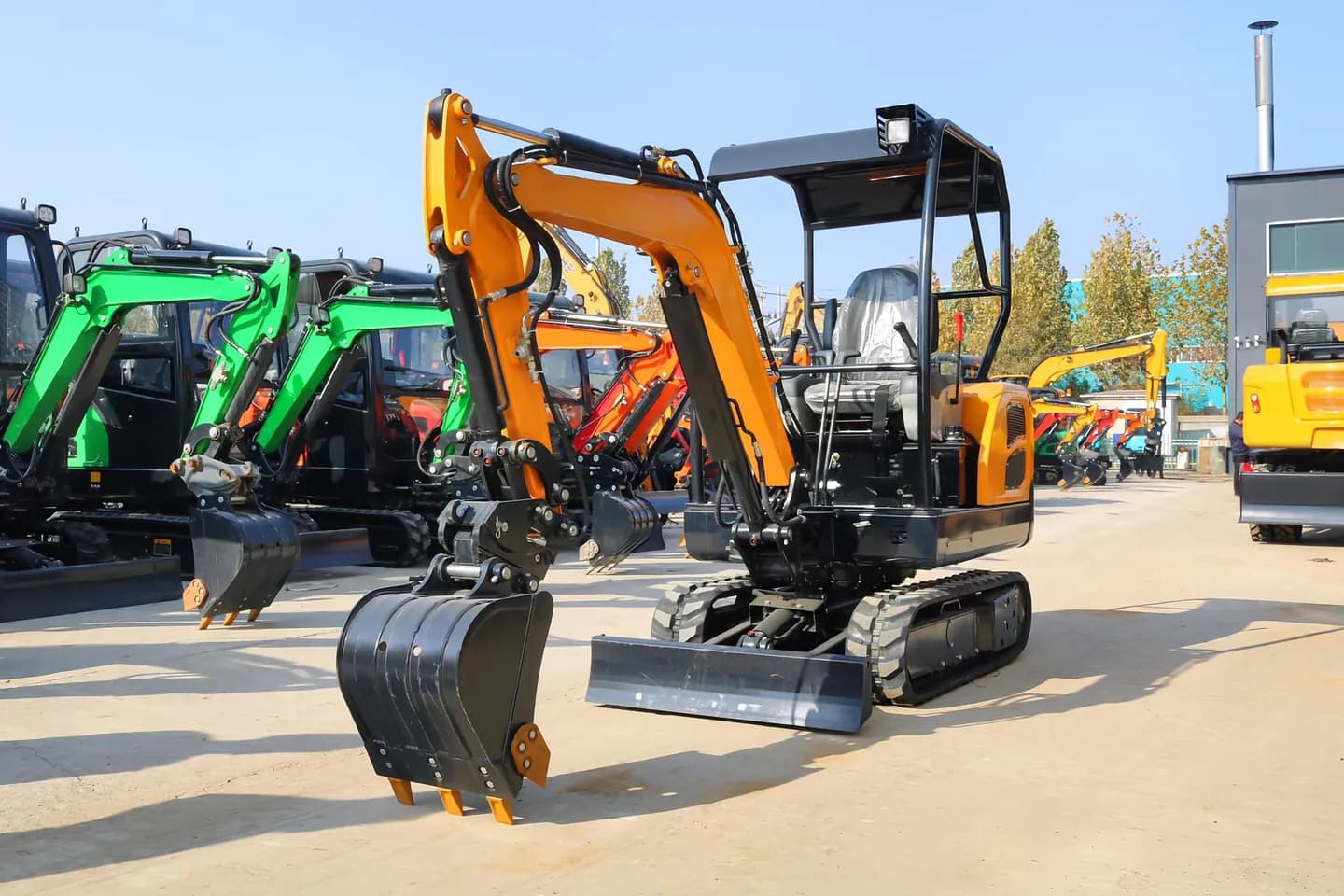

Images are representative. Final configuration may vary by specification.
Maximum digging depth2,045 mm
Rated power14 kW @ 2200 rpm
Bucket capacity0.036 m³
Dimensions & weight
| Overall / transport length | 2,870 mm |
|---|---|
| Total width | 1,400 mm |
| Overall height | 2,440 mm |
| Ground clearance | 145 mm |
| Tail swing radius | 700 mm |
| Upper-body width D | 1,320 mm |
Working range
| Bucket capacity | 0.036 m³ |
|---|---|
| Maximum dumping height | 2,610 mm |
| Maximum digging depth | 2,045 mm |
| Maximum digging reach | 3,430 mm |
Bucket volume is not lifting capacity or an allowable load. Read digging and unloading heights and the stated radius measurement separately.
Engine
| Rated power | 14 kW @ 2200 rpm |
|---|
Undercarriage & travel
| Track shoe width | 250 mm |
|---|---|
| Track gauge G | 1,150 mm |
| Track grounding length J | 1,480 mm |
| Track length K | 1,858 mm |
Track shoe width, track gauge and chassis width describe different dimensions. Confirm the complete machine envelope and chassis setting for access.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Specify your configuration
Confirm the engine, machine weight definition, digging height and rotation-speed units for FY25. Request slope conditions and a matching dimension sheet. FY25-2 specifications are a separate configuration and must not be substituted.
Items listed as standard in the specification: Track shoe width (250 mm). Confirm the complete equipment list for the quoted configuration.
