Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Mini Excavators / MODEL
FY35
FY35 provides selected machine dimensions and working-range measurements for access and transport discussions. Complete the engine, bucket and machine-weight specification with the selected configuration.

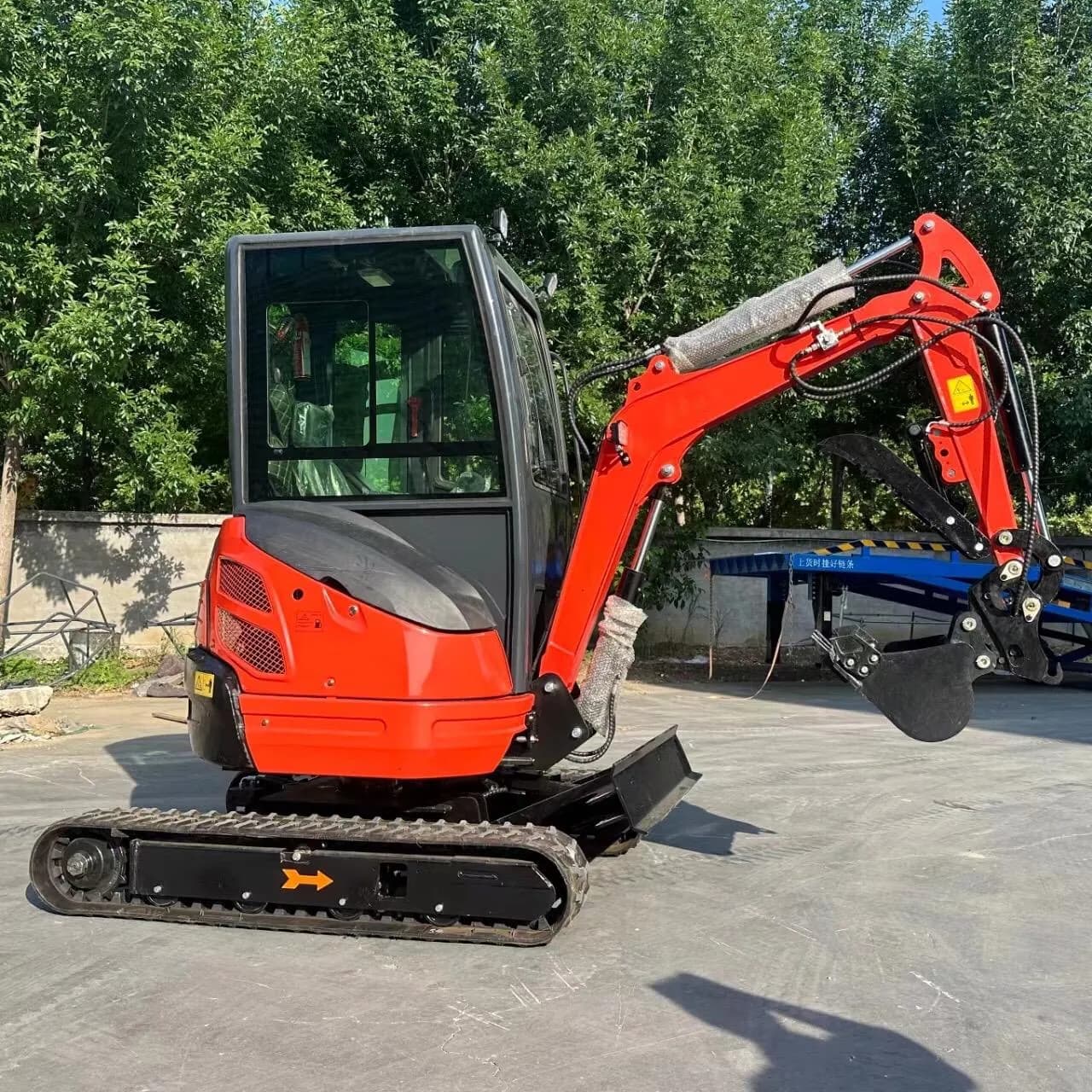

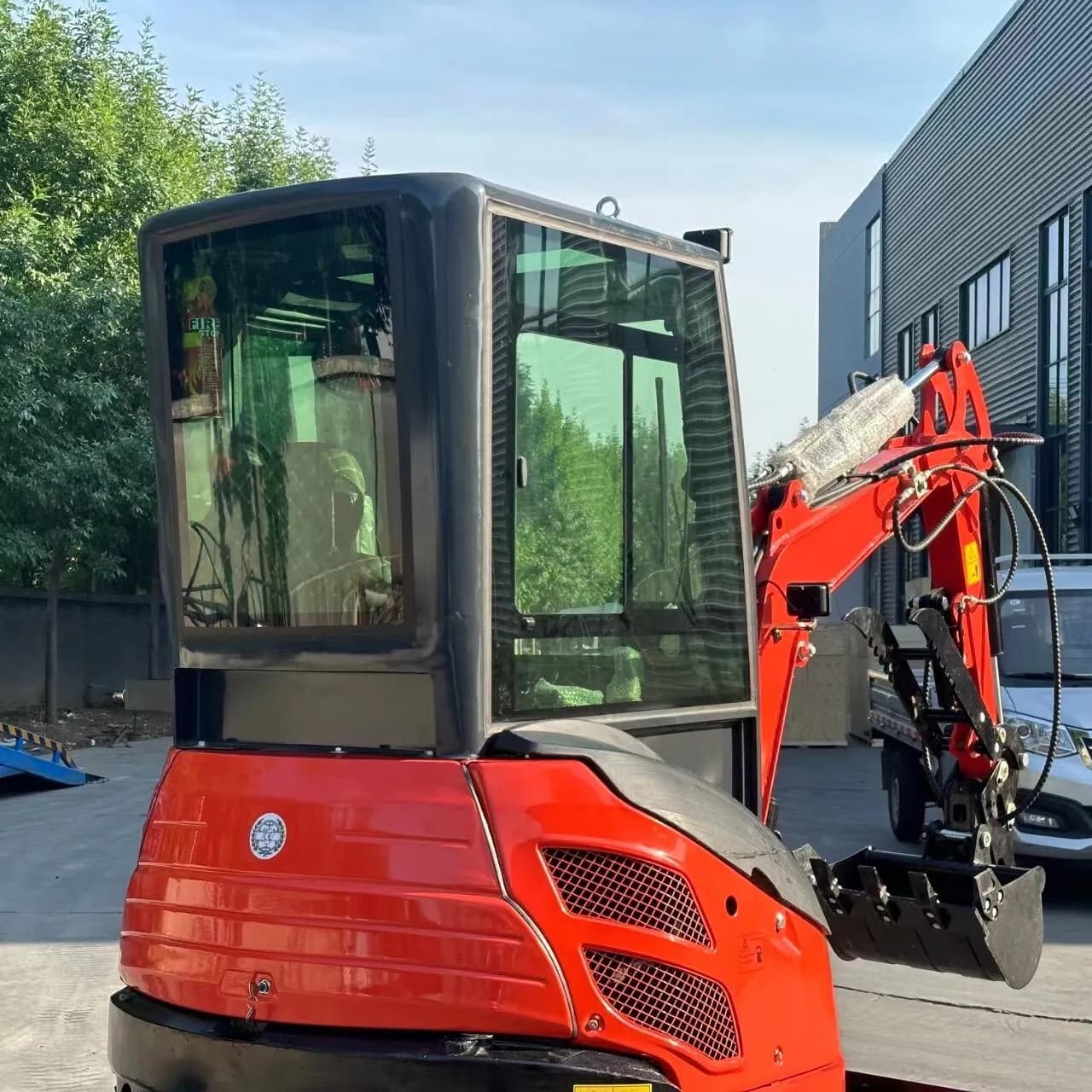

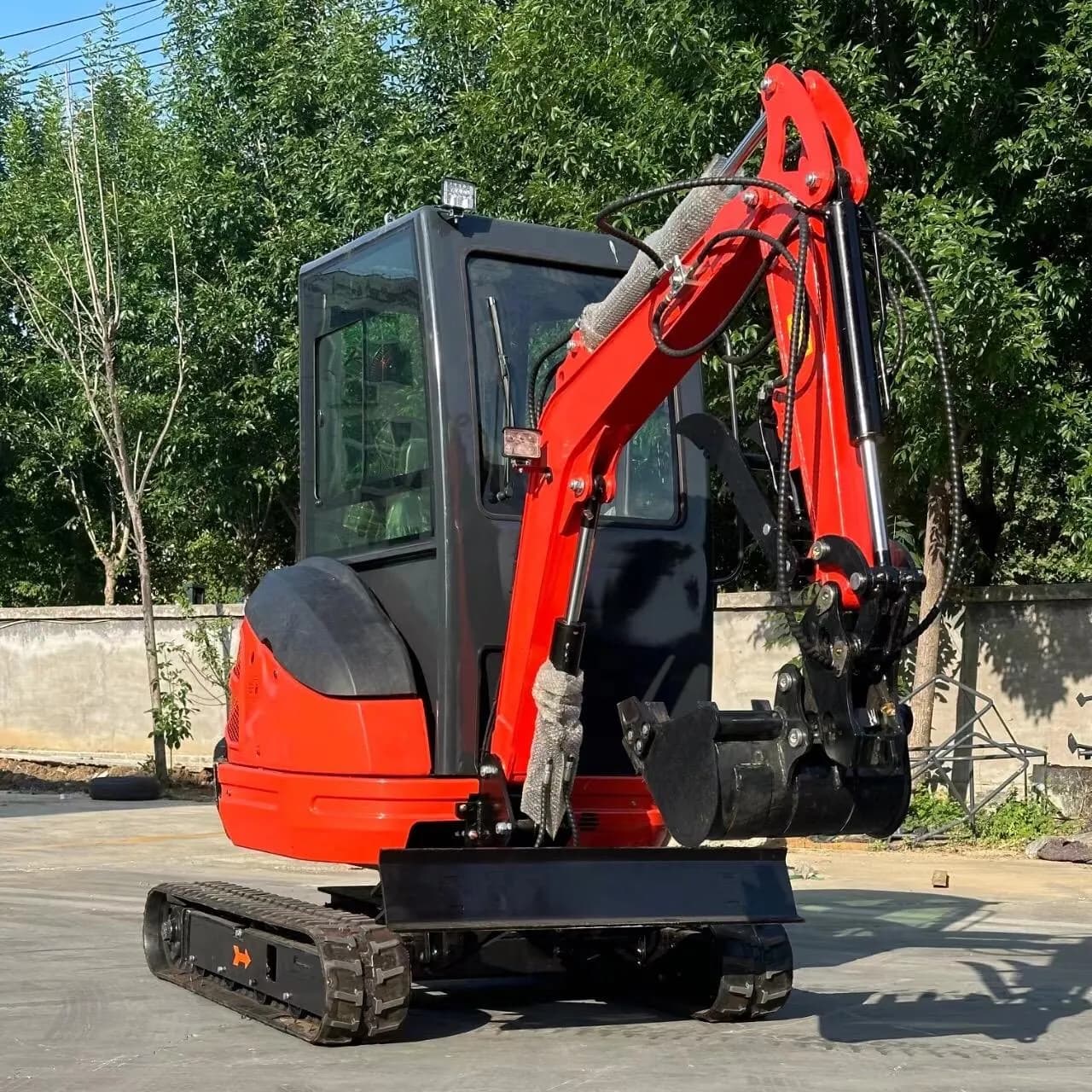

Images are representative. Final configuration may vary by specification.
Maximum digging depth3,106 mm
Dimensions & weight
| Overall / transport length | 5,029 mm |
|---|---|
| Total width | 1,720 mm |
| Overall height (cab roof) | 2,580 mm |
| Ground clearance | 319 mm |
| Tail swing radius | 885 mm |
Working range
| Maximum digging height | 4,938 mm |
|---|---|
| Maximum dumping height | 3,376 mm |
| Maximum digging depth | 3,106 mm |
| Maximum digging reach | 5,175 mm |
Undercarriage & travel
| Track shoe width | 300 mm |
|---|
Track shoe width, track gauge and chassis width describe different dimensions. Confirm the complete machine envelope and chassis setting for access.
Reading these specifications
Specify your configuration
Request a matched engine, rated power, bucket capacity and machine-weight record, together with the complete dimension drawing. The model number does not establish machine tonnage or a supplied engine.
Items listed as standard in the specification: Track shoe width (300 mm). Confirm the complete equipment list for the quoted configuration.
