Small Road Rollers / SERIES

FYST1000 Series

A ride on roller series. The technical table separates series references from engine-specific configurations. Values are not assigned to every suffix code.

Request a QuoteView specifications ↓

Series references are shown separately from individual suffix configurations.

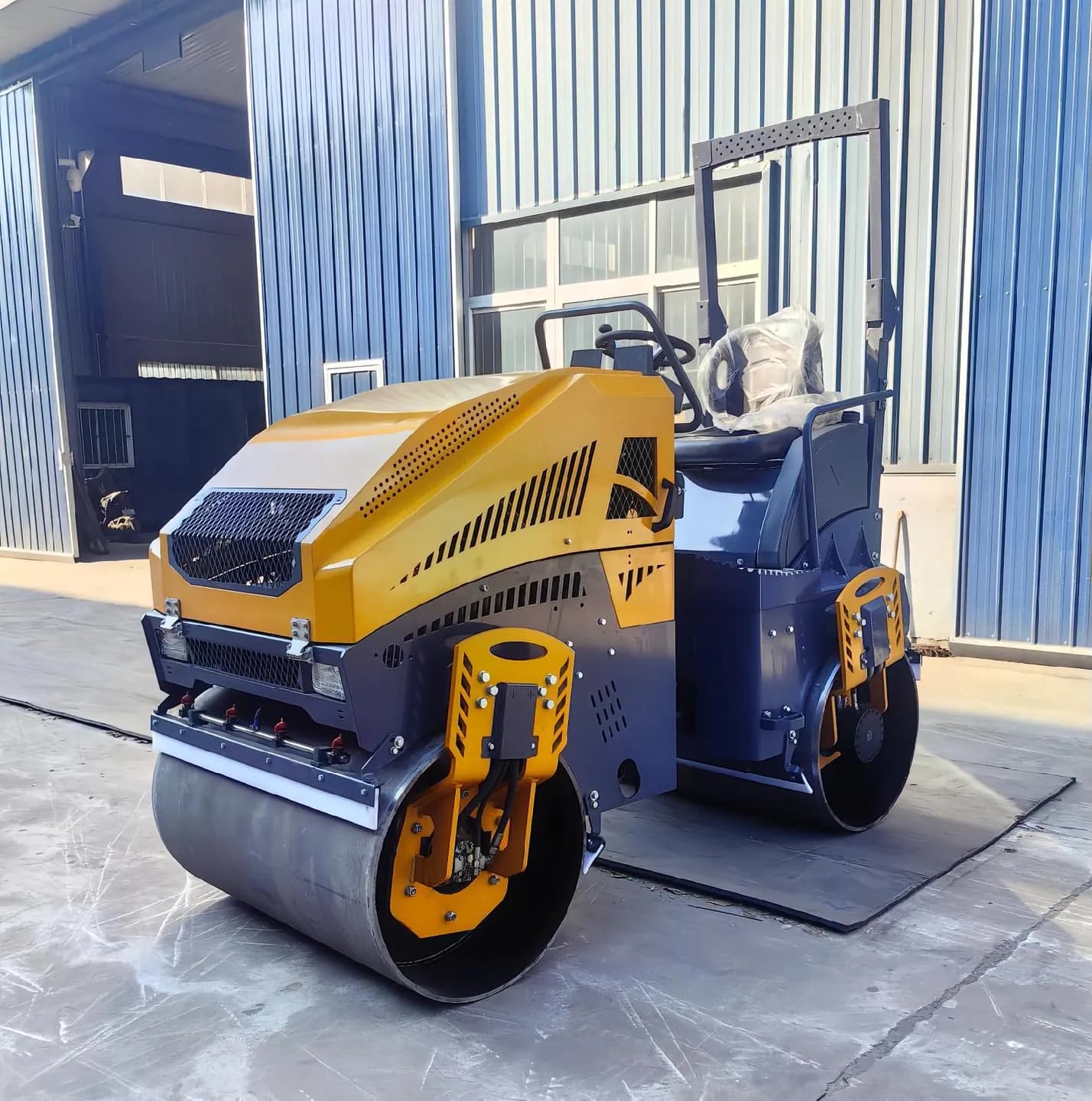

Yellow seated twin-drum roller showing its front drum and body cover

Images are representative. Final configuration may vary by specification.

Operating weight1100 kgSeries reference
Drum width700 mmSeries reference

TECHNICAL SPECIFICATIONS

Partial
specification.

Selected measurements are shown below. Confirm the complete equipment and configuration before ordering.

These are series-level references only. They do not establish the same value for every code below.

Machine & capacity

FYST1000 Series: Machine & capacity
Operating weight1100 kg
Wheelbase1230 mm

Drum & compaction

FYST1000 Series: Drum & compaction
Drum width700 mm
Drum diameter500 mm
Vibration frequency70 Hz
Vibration amplitude0.5 mm
Exciting force25 kN

Dimensions & access

FYST1000 Series: Dimensions & access
Working width (source label)825 mm
Total length — listed alternativesSource alternatives; working / transport arrangement not identified1870/1780 mm
Total height — listed alternativesSource alternatives; working / transport arrangement not identified1450/1985 mm
Outer turning radius2600 mm

Travel & control

FYST1000 Series: Travel & control
Travel speed0-6 km/h

Capacities

FYST1000 Series: Capacities
Hydraulic oil capacity15 L
Fuel capacity6.5 L
Water tank capacity70 L

Power & travel

FYST1000 Series: Power & travel
Rated engine speed3600 rpm

Engine options — not suffix assignments

FYST1000 Series: Engine options — not suffix assignments
Engine modelHONDA GX390 engine option; supplied option unconfirmedGX390
Engine output powerHONDA GX390 engine option; supplied option unconfirmed9.7 kW
Engine modelCHANGFA / CHANGCHAI 186F engine option; supplied option unconfirmed186F
Engine output powerCHANGFA / CHANGCHAI 186F engine option; supplied option unconfirmed6 kW

Codes grouped in this series

FYST1000

These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.

Reading these specifications

Drum & compaction dimensions

Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.

Engine & power

Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.

Travel & control

Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.

Specify your configuration

Include the selected model or series, intended work, access dimensions and requested equipment. Confirm engine choice, included components and transport requirements for the configuration in your quotation.
