Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.
Small Road Rollers / SERIES
FYSTRC18 Series
A remote-control roller series. Compare the engine configuration, machine envelope and separate low/high vibration settings before specifying the machine.
Series references are shown separately from individual suffix configurations.

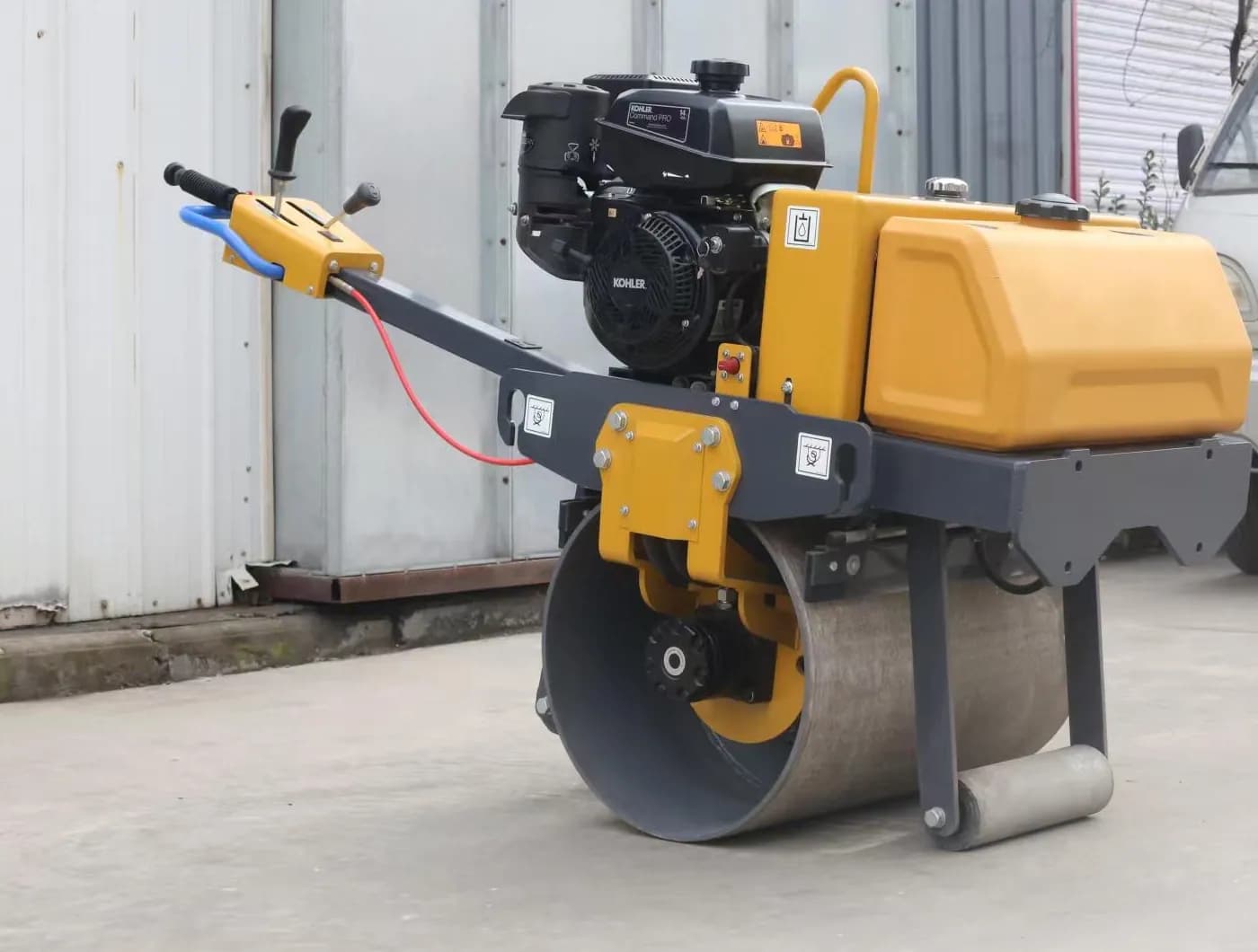

Images are representative. Final configuration may vary by specification.
Operating weight1850 kgSeries reference
Dimensions & weight
| Operating weight | 1850 kg |
|---|---|
| Overall length | 1915 mm |
| Overall height | 1430 mm |
Drum & compaction
| Drum diameter — including bumps | 580 mm |
|---|---|
| Vibration frequency | 42 Hz |
| Vibration amplitude | Low 0.7/High 1.4 mm |
| Vibration force — low / high | Low 15 × 2 / High 30 × 2 kN |
The force ratings retain the paired ×2 notation for each vibration setting; they are not converted into a combined-force claim.
Power options
| Engine brand | YANMAR |
|---|---|
| Engine model | 3TNV80F-SDSA |
| Engine type | 4-stroke water-cooled diesel engine |
| Engine power | 17.8 kW |
| Rated engine speed | 3000 rpm |
| Electrical system | 12 V |
| Engine oil capacity | 3.4 L |
Travel & capacities
| Travel speed | Low speed 1.25/high speed 2.5 km/h |
|---|---|
| Climbing ability (stated) | 45 % |
| Hydraulic oil capacity | 38.5 L |
| Fuel tank capacity | 25 L |
Gradeability is a stated climbing reference, not a permissible working slope. Use the supplied operating guidance and site assessment for safe operation.
Codes grouped in this series
FYSTRC18
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Confirm working width, drum geometry and the turning envelope together. Include the required vibration setting and control equipment in your quotation request.
