Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Small Road Rollers / SERIES
FYSVH30 Series
A walk behind roller series. The technical table separates series references from engine-specific configurations. Values are not assigned to every suffix code.
Series references are shown separately from individual suffix configurations.

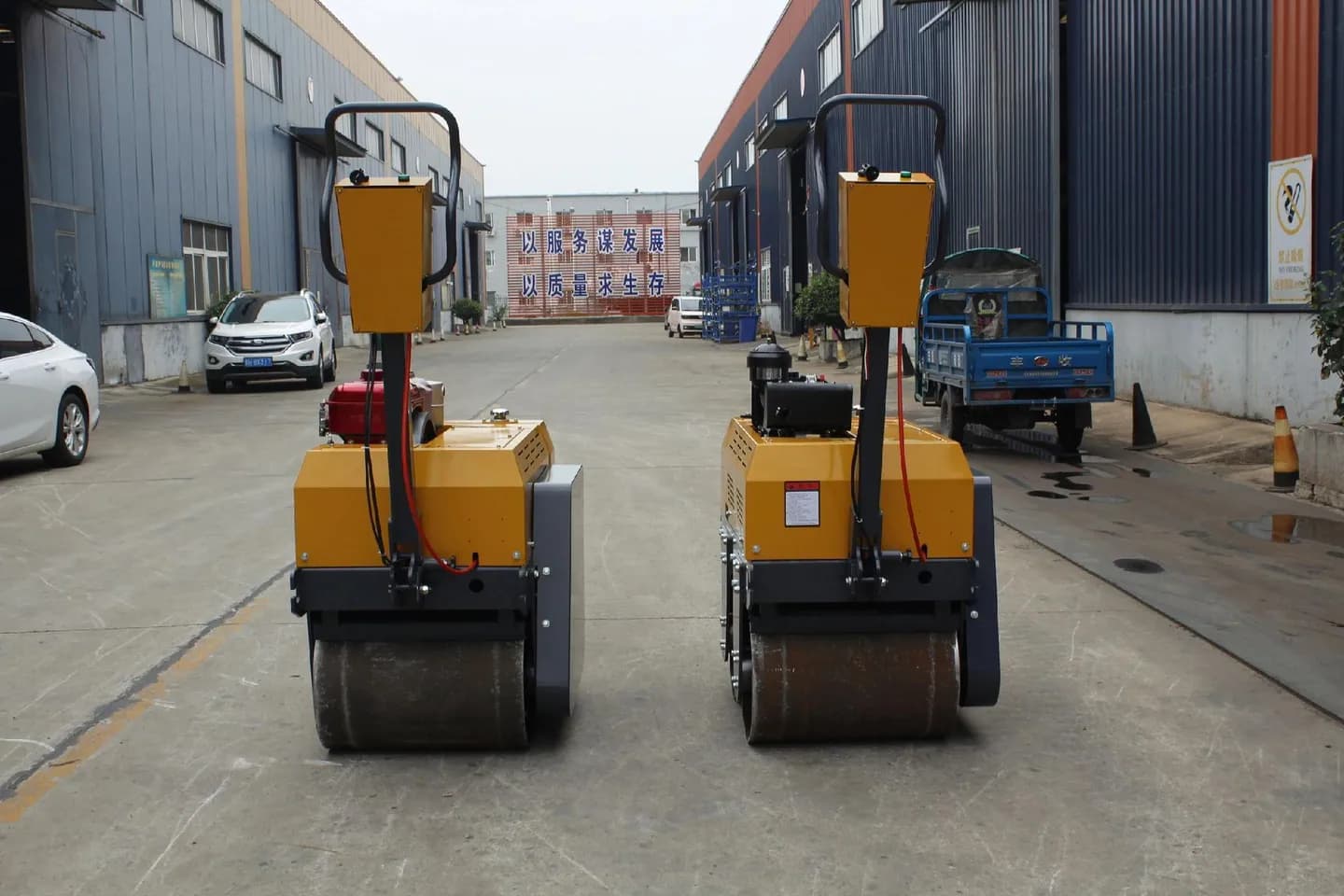

Images are representative. Final configuration may vary by specification.
Operating weight350 kgSeries reference
Drum width600 mmSeries reference
Machine & capacity
| Operating weight | 350 kg |
|---|---|
| Net weight | 310.5 kg |
Drum & compaction
| Drum width | 600 mm |
|---|---|
| Drum diameter | 426 mm |
| Vibration frequency | 70 Hz |
| Vibration amplitude | 0.6 mm |
| Exciting force | 20 kN |
Dimensions & access
| Full width | 780 mm |
|---|---|
| Full length — armrests flat | 1600 mm |
| Full height — armrest upright | 1060 mm |
| Package dimensions (L × W × H) | 1050*850*1200 mm |
Travel & control
| Travel speed | 0-3.8 km/h |
|---|
Capacities
| Water tank capacity | 22 L |
|---|
Power & travel
| Engine speed | 3600 rpm |
|---|
Engine options — not suffix assignments
| Engine modelHONDA GX160 engine option; suffix mapping unconfirmed | GX160 |
|---|---|
| Engine output powerHONDA GX160 engine option; suffix mapping unconfirmed | 4.1 kW |
| Fuel capacityHONDA GX160 engine option; suffix mapping unconfirmed | 3.6 L |
| Hydraulic tank capacityHONDA GX160 engine option; suffix mapping unconfirmed | 15 L |
| Lubricant capacityHONDA GX160 engine option; suffix mapping unconfirmed | 0.6 L |
| Engine modelChangchai / Changfa CF170 engine option; suffix mapping unconfirmed | CF170 |
| Engine output powerChangchai / Changfa CF170 engine option; suffix mapping unconfirmed | 3.1 kW |
| Fuel capacityChangchai / Changfa CF170 engine option; suffix mapping unconfirmed | 1.9 L |
| Hydraulic tank capacityChangchai / Changfa CF170 engine option; suffix mapping unconfirmed | 12 L |
| Lubricant capacityChangchai / Changfa CF170 engine option; suffix mapping unconfirmed | 0.75 L |
| Engine modelKAMA 173F engine option; suffix mapping unconfirmed | 173F |
| Engine output powerKAMA 173F engine option; suffix mapping unconfirmed | 3.7 kW |
| Fuel capacityKAMA 173F engine option; suffix mapping unconfirmed | 2.5 L |
| Hydraulic tank capacityKAMA 173F engine option; suffix mapping unconfirmed | 12 L |
| Lubricant capacityKAMA 173F engine option; suffix mapping unconfirmed | 0.75 L |
Codes grouped in this series
FYSVH30FYSVH30C
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Include the selected model or series, intended work, access dimensions and requested equipment. Confirm engine choice, included components and transport requirements for the configuration in your quotation.
