Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.

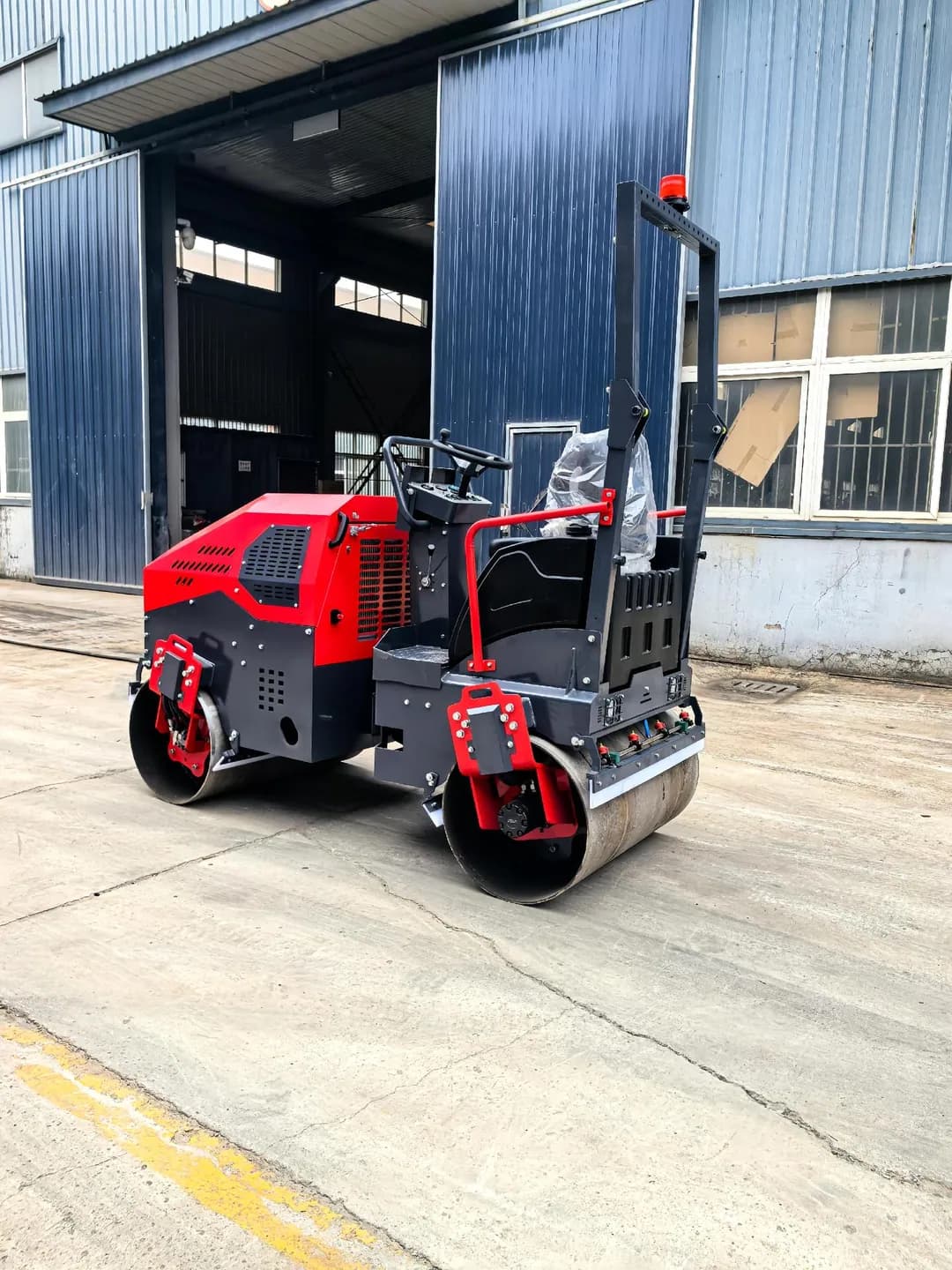

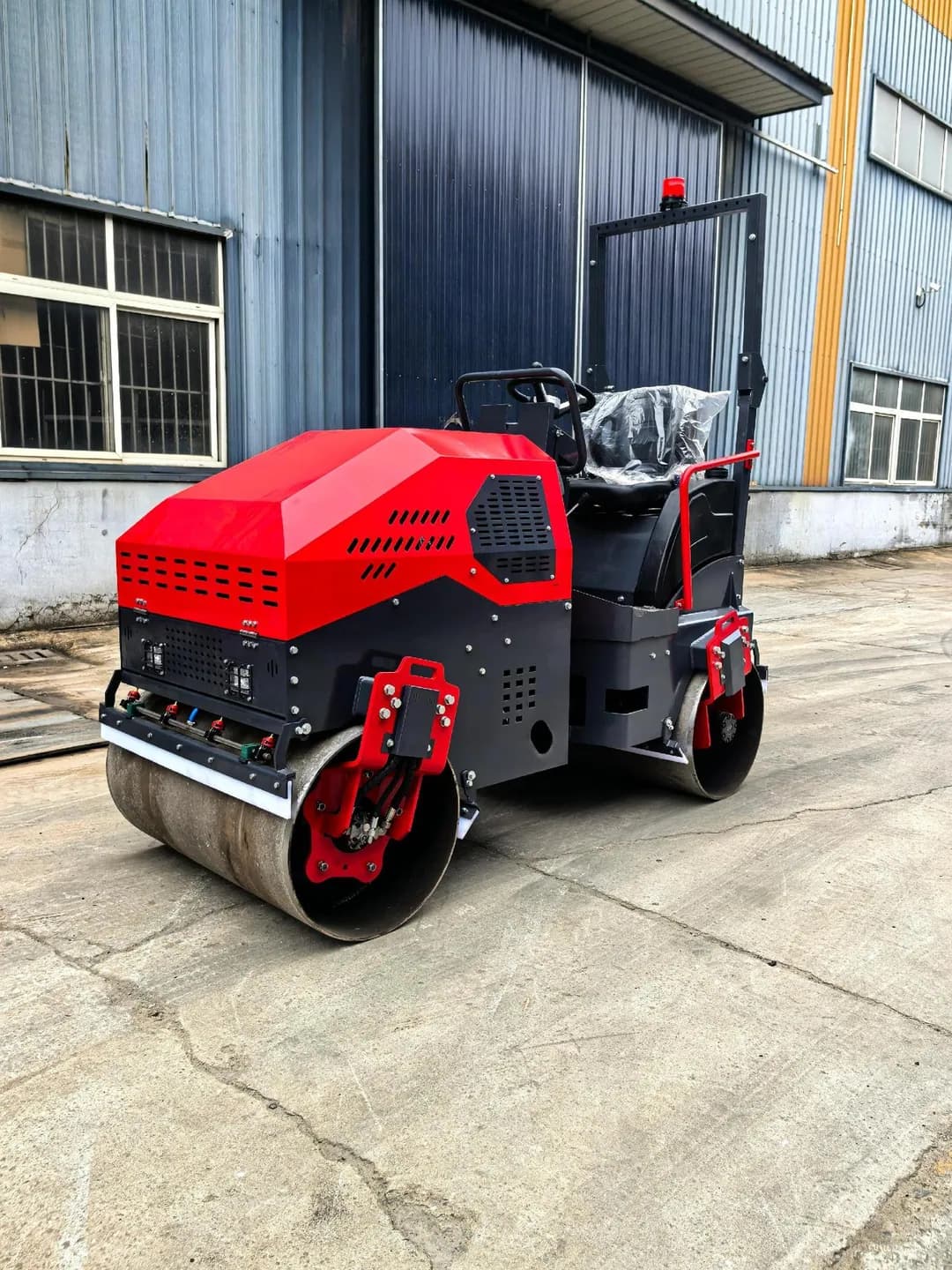

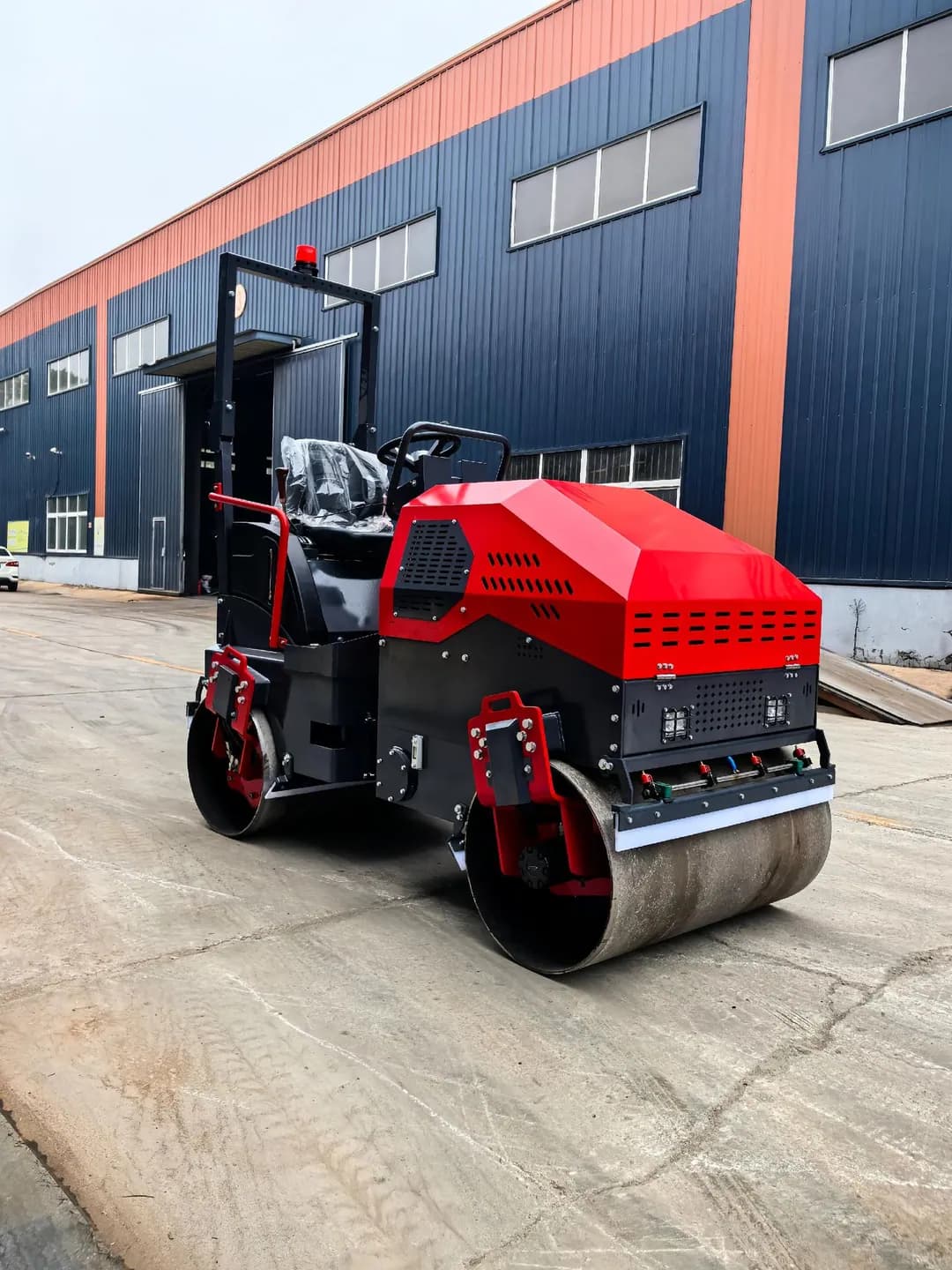

Small Road Rollers / SERIES
FYST1200 Series
A ride-on roller series with front-drum vibration. Compare the machine envelope, front-drum compaction ratings and the separately listed engine options.
Series references are shown separately from individual suffix configurations.
Images are representative. Final configuration may vary by specification.
Operating weight1185 kgSeries reference
Drum width800 mmSeries reference
Dimensions & weight
| Operating weight | 1185 kg |
|---|---|
| Working width | 930 mm |
| Wheelbase | 1356 mm |
| Overall length — listed alternatives | 1980/1940 mm |
| Overall height — listed alternatives | 1540/2125 mm |
| Outside turning radius | 2800 mm |
Alternative dimensions depend on the machine arrangement. Confirm the operating and transport positions before planning access or loading.
Drum & compaction
| Drum width | 800 mm |
|---|---|
| Drum diameter | 560 mm |
| Vibration frequency | 65 Hz |
| Vibration amplitude | 0.5 mm |
| Exciting force — front drum | 30 kN |
Power options
| Electrical system | 12 V |
|---|
CHANGCHAI 192F option
| Engine model | 192F |
|---|---|
| Engine type | DIESEL 4-STROKE |
| Engine power | 8.1 kW |
| Rated engine speed | 3600 rpm |
HONDA GX390 option
| Engine model | GX390 |
|---|---|
| Engine type | GASOLINE 4-STROKE |
| Engine power | 9.7 kW |
| Rated engine speed | 3600 rpm |
Read each engine option as a separate configuration. Confirm its availability and correspondence to the code in your quotation.
Travel & capacities
| Travel speed | 0–6 km/h |
|---|---|
| Theoretical gradeability | 30 % |
| Hydraulic oil capacity | 22 L |
| Fuel tank capacity | 5.5 L |
| Water tank capacity | 70 L |
Gradeability is a stated climbing reference, not a permissible working slope. Use the supplied operating guidance and site assessment for safe operation.
Codes grouped in this series
FYST1200
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Specify the engine and included equipment. Confirm the operating/transport positions for alternative dimensions and the front/rear static line-load values.
