Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.
Small Road Rollers / SERIES
FYST1300 Series
A ride-on roller series with front-drum vibration and a listed water-cooled diesel engine configuration. Dimensions, compaction and capacities are grouped for comparison.
Series references are shown separately from individual suffix configurations.

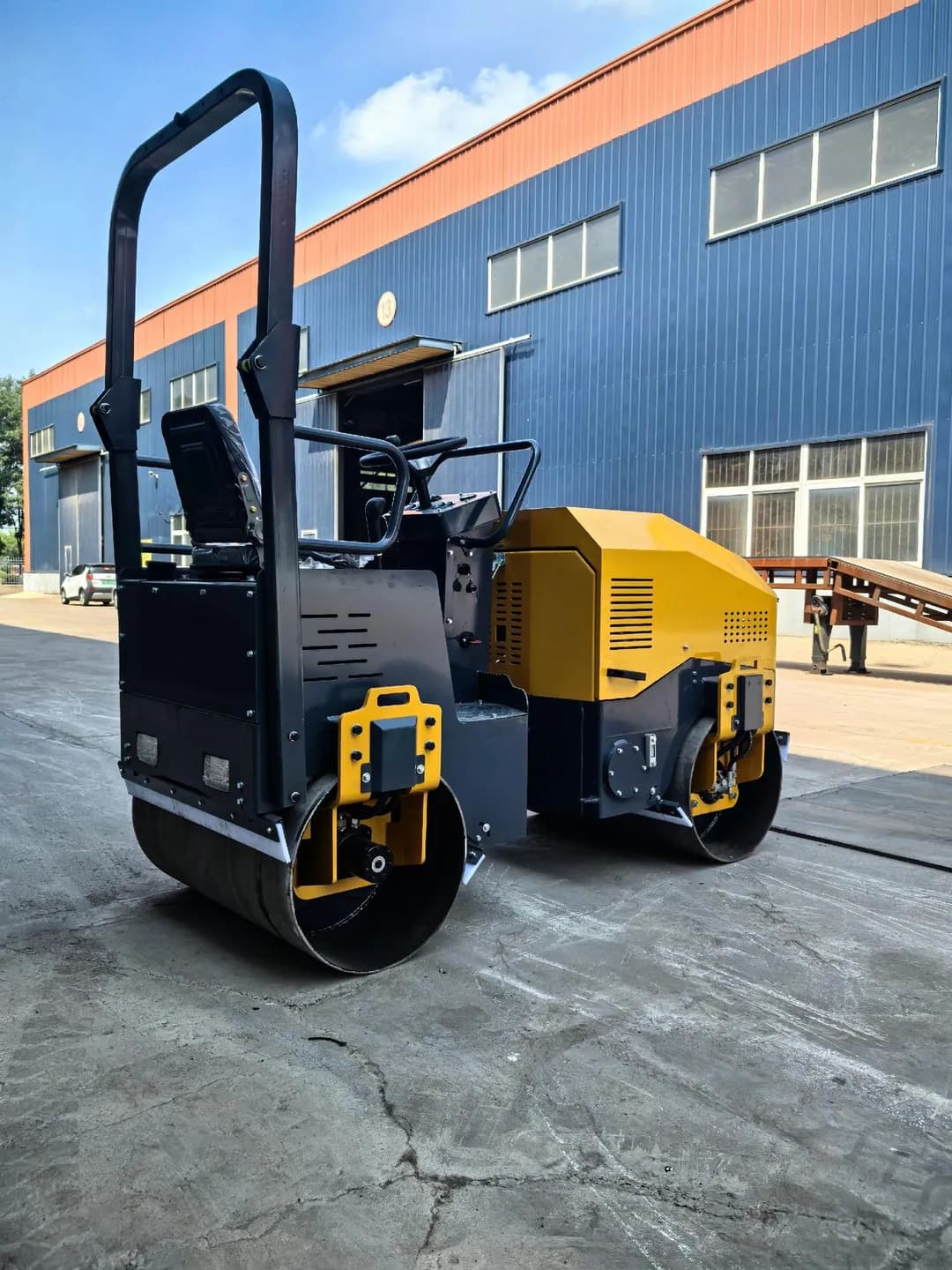

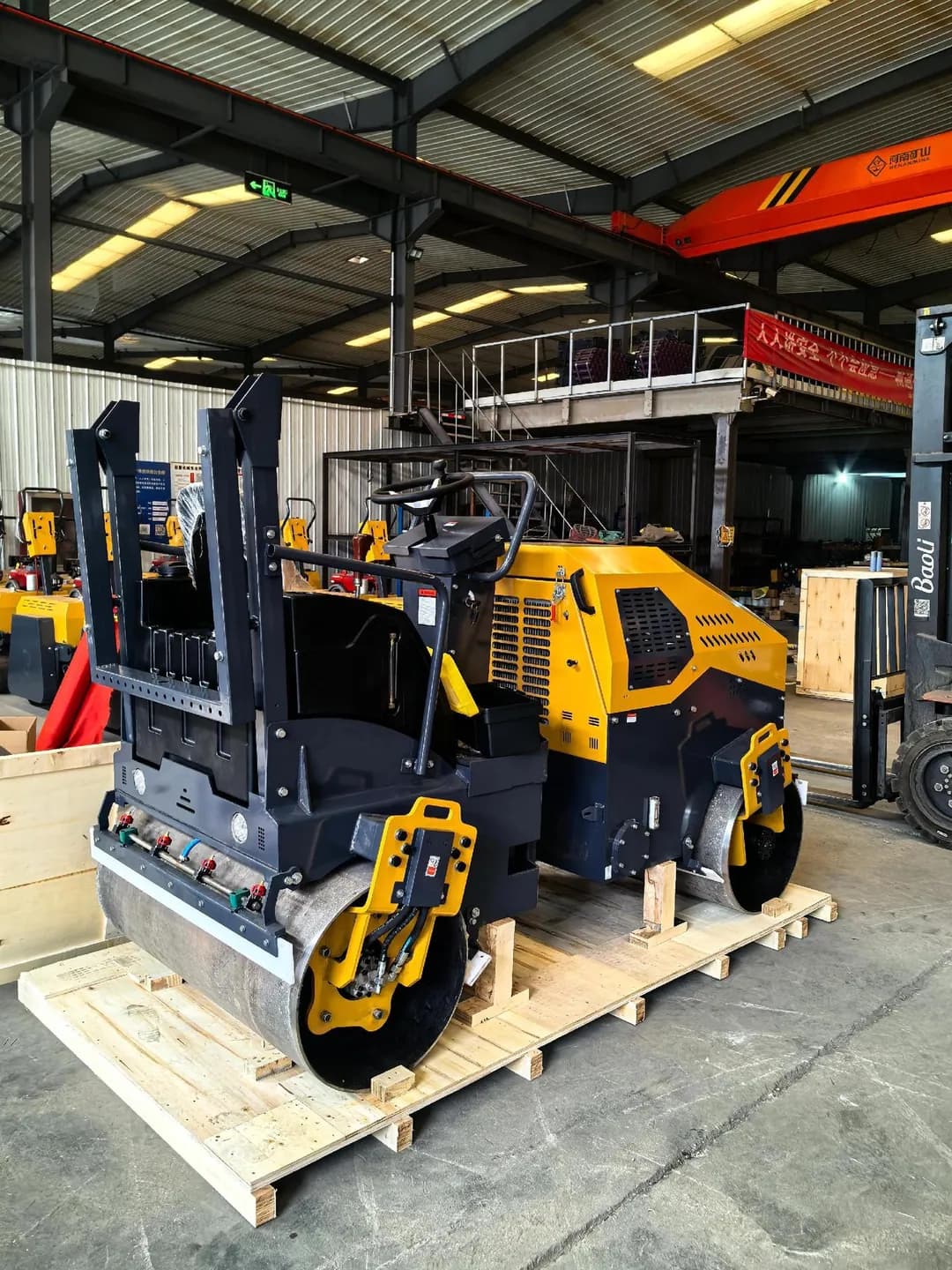

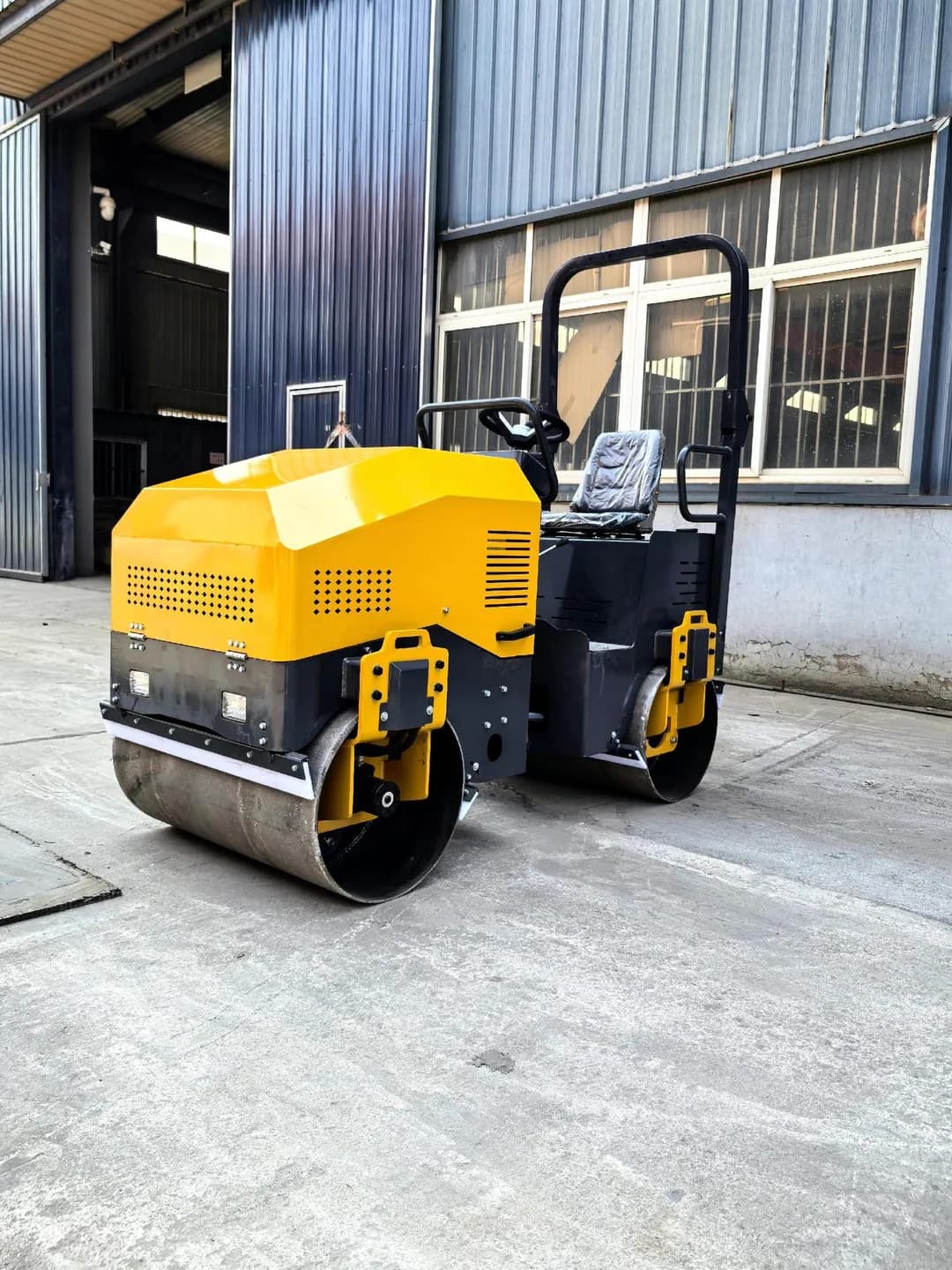

Images are representative. Final configuration may vary by specification.
Operating weight1280 kgSeries reference
Drum width800 mmSeries reference
Dimensions & weight
| Operating weight | 1280 kg |
|---|---|
| Working width | 920 mm |
| Wheelbase | 1467 mm |
| Overall length — listed alternatives | 2030/1990 mm |
| Overall height — listed alternatives | 1460/2130 mm |
| Outside turning radius | 3165 mm |
Alternative dimensions depend on the machine arrangement. Confirm the operating and transport positions before planning access or loading.
Drum & compaction
| Drum width | 800 mm |
|---|---|
| Drum diameter | 560 mm |
| Vibration frequency | 65 Hz |
| Vibration amplitude | 0.5 mm |
| Exciting force — front drum | 30 kN |
| Static line load | 70 N/cm |
Power options
| Electrical system | 12 V |
|---|
KUBOTA Z482 option
| Engine model | Z482 |
|---|---|
| Engine type | Double cylinder water-cooled four stroke diesel engine |
| Engine power | 9.8 kW |
| Rated engine speed | 3600 rpm |
Read each engine option as a separate configuration. Confirm its availability and correspondence to the code in your quotation.
Travel & capacities
| Travel speed | 0–10 km/h |
|---|---|
| Fuel tank capacity | 15 L |
| Water tank capacity | 70 L |
Codes grouped in this series
FYST1300
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Confirm hydraulic-oil capacity and site-specific operating conditions. Match the quoted protective structure to the required transport height.
