Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.
Small Road Rollers / SERIES
FYST1800 Series
A ride-on roller series with front-drum vibration. Review the engine rating, machine dimensions and tank capacities together when planning access and transport.
Series references are shown separately from individual suffix configurations.

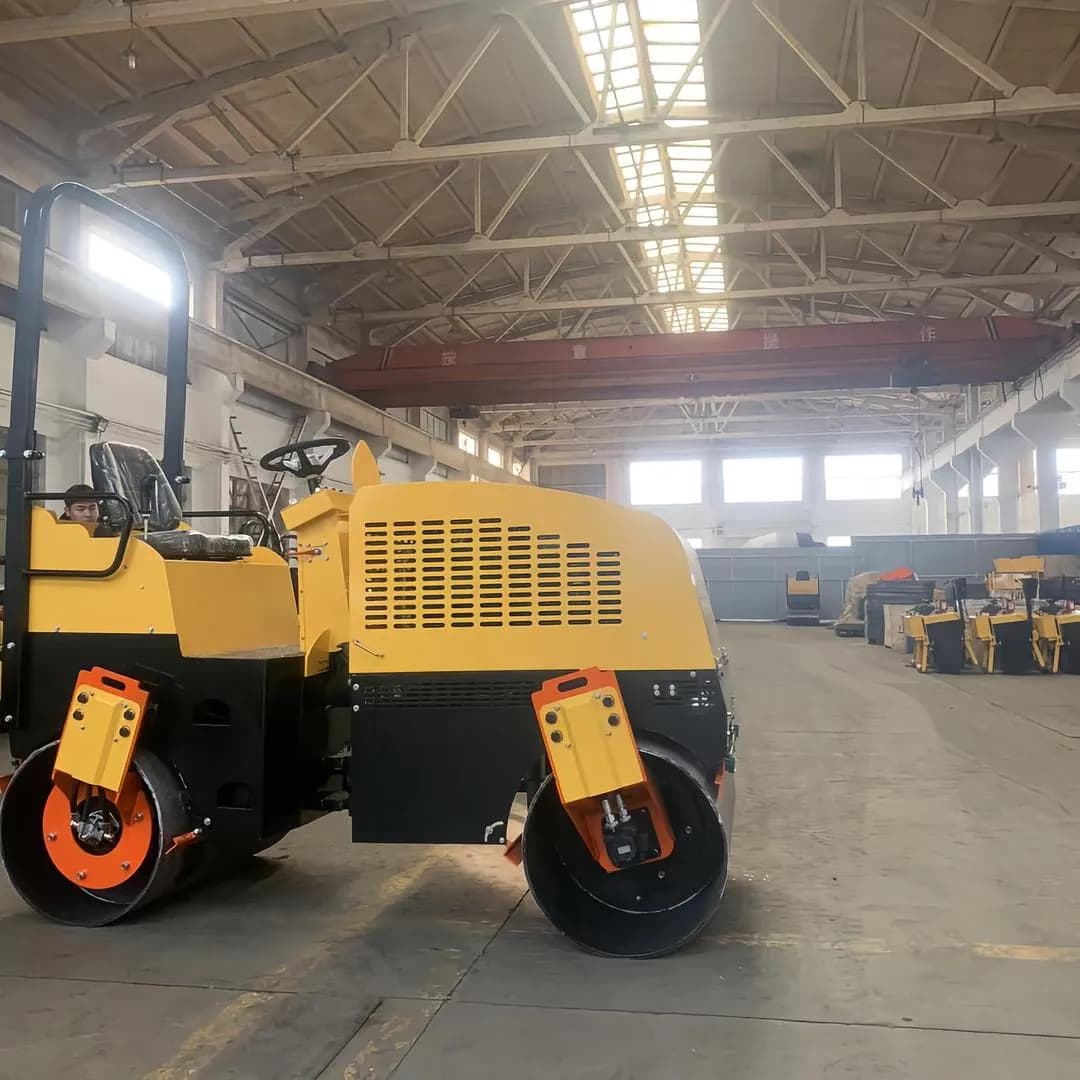

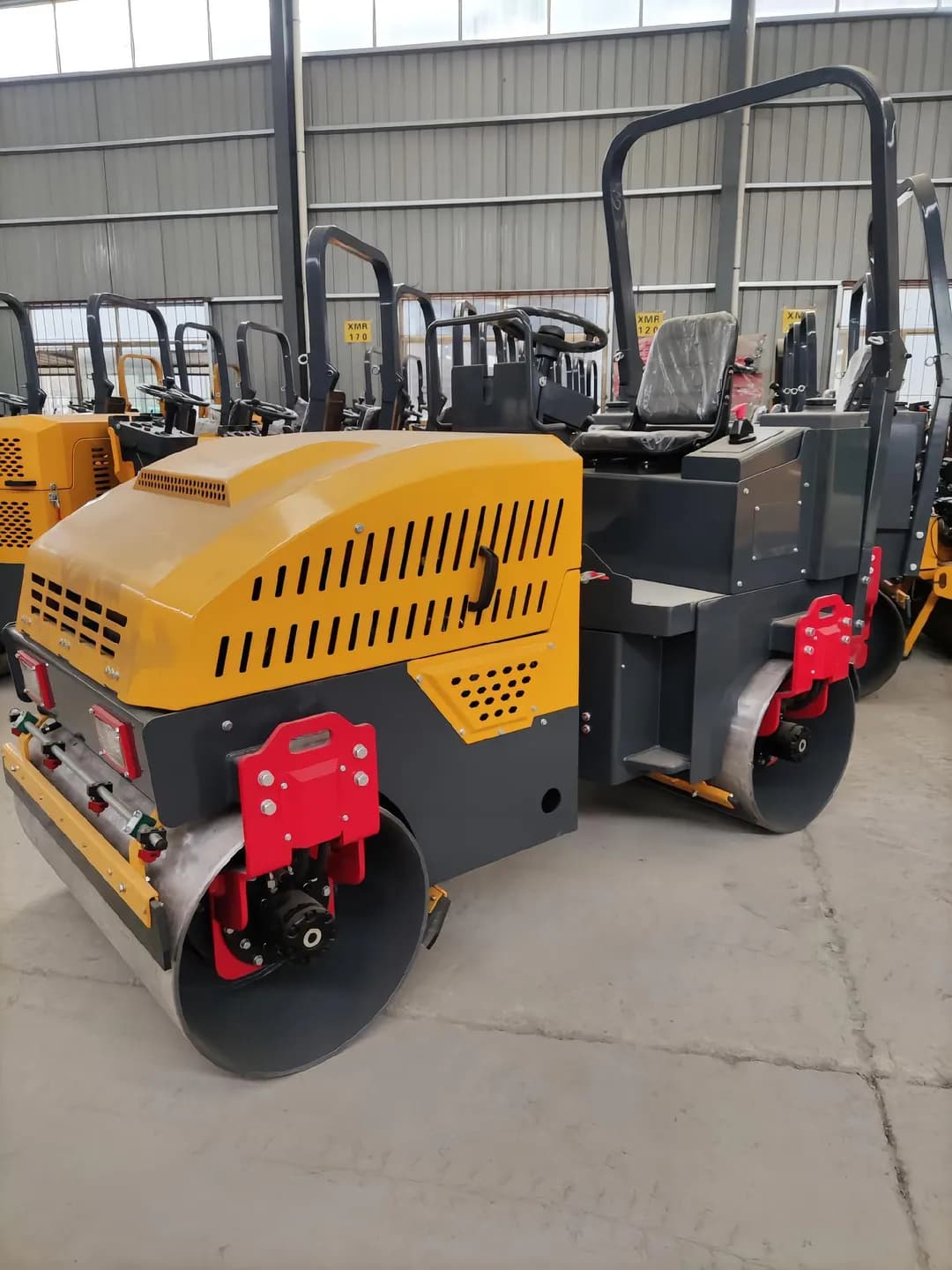

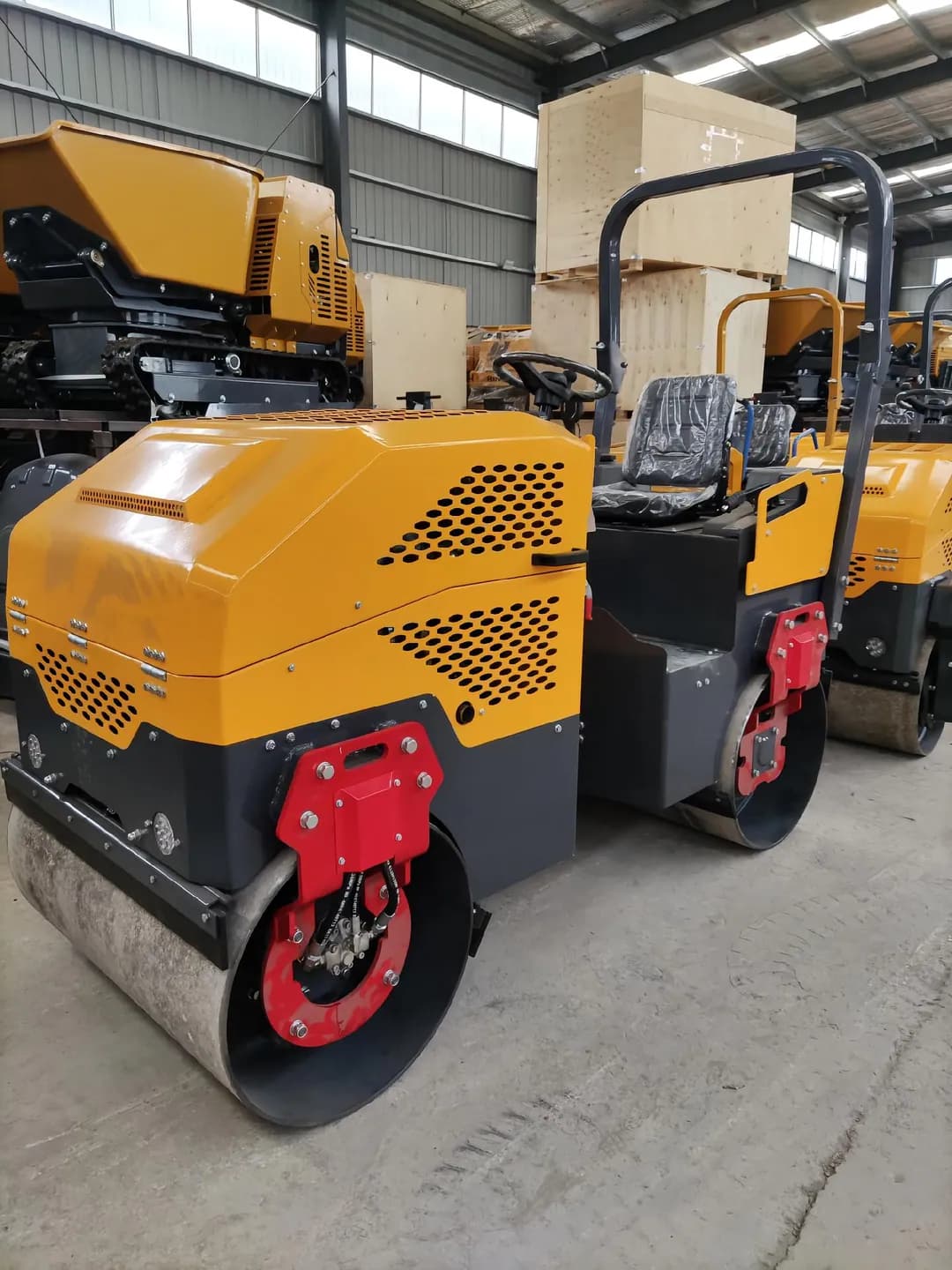

Images are representative. Final configuration may vary by specification.
Operating weight1790 kgSeries reference
Drum width900 mmSeries reference
Dimensions & weight
| Operating weight | 1790 kg |
|---|---|
| Working width | 1050 mm |
| Wheelbase | 1515 mm |
| Overall length — listed alternatives | 2210/2150 mm |
| Overall height — listed alternatives | 1790/2465 mm |
| Outside turning radius — listed alternatives | 2800/3850 mm |
Alternative dimensions depend on the machine arrangement. Confirm the operating and transport positions before planning access or loading.
Drum & compaction
| Drum width | 900 mm |
|---|---|
| Drum diameter | 560 mm |
| Vibration frequency | 65 Hz |
| Vibration amplitude | 0.5 mm |
| Exciting force — front drum | 30 kN |
| Static line load | 82 N/cm |
Power options
| Electrical system | 12 V |
|---|
YANMAR 3TNM72-AFF option
| Engine model | 3TNM72-AFF |
|---|---|
| Engine type | 4-stroke water-cooled diesel engine |
| Engine power | 18.5 kW |
| Rated engine speed | 3600 rpm |
Read each engine option as a separate configuration. Confirm its availability and correspondence to the code in your quotation.
Travel & capacities
| Travel speed | 0-8 km/h |
|---|---|
| Hydraulic oil capacity | 45 L |
| Fuel tank capacity | 36 L |
| Water tank capacity | 160 L |
Codes grouped in this series
FYST1800
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Confirm the positions associated with length, height and turning-radius alternatives. Request the operating guidance for your site and the exact equipment included in the quotation.
