Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Small Road Rollers / SERIES
FYSVH50 Series

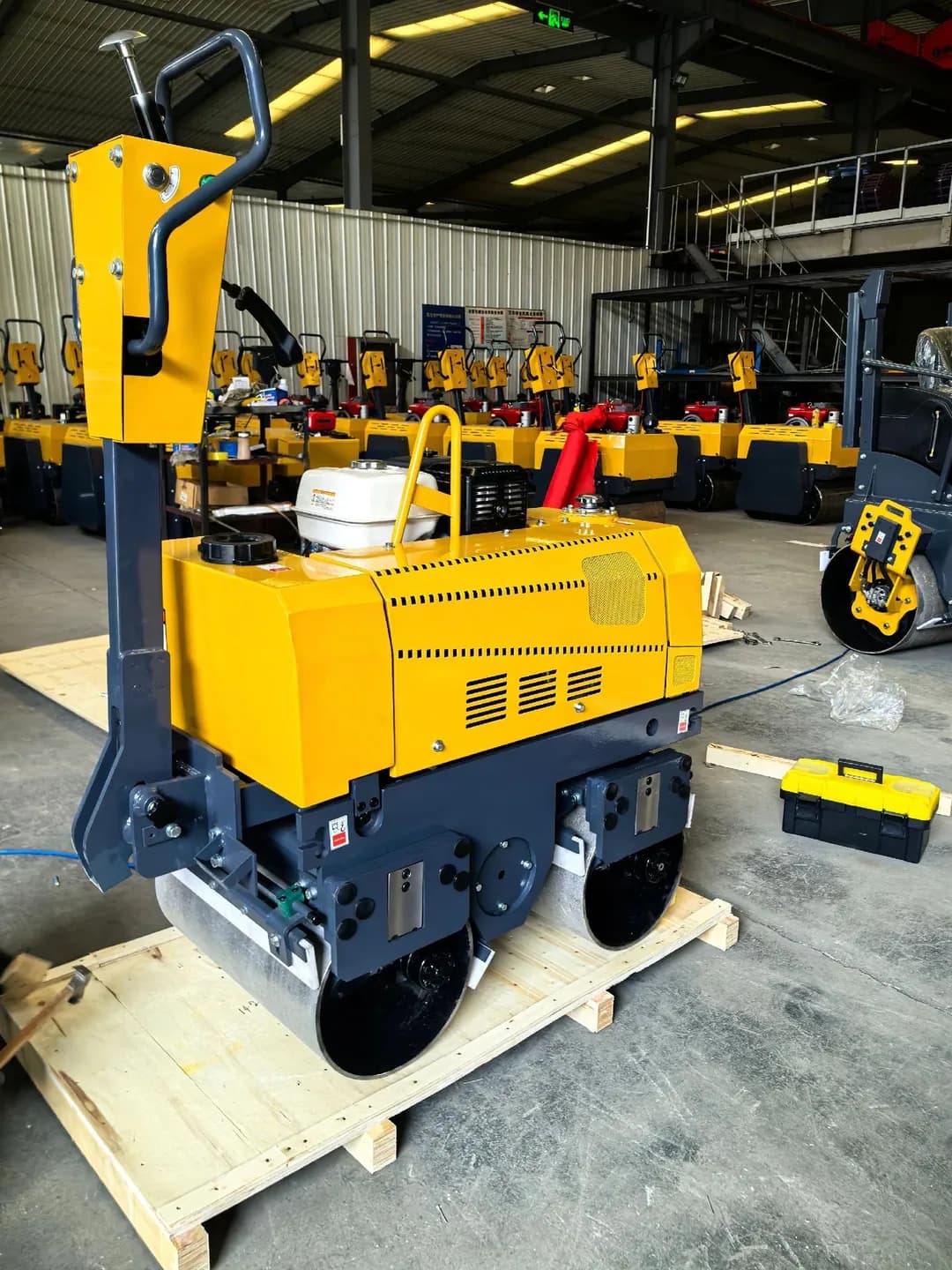

A walk-behind double-drum roller series. Compare the machine envelope and the individually listed engine configurations, including their fuel and lubrication capacities.
Series references are shown separately from individual suffix configurations.
Images are representative. Final configuration may vary by specification.
Operating weight560 kgSeries reference
Drum width600 mmSeries reference
Dimensions & weight
| Operating weight | 560 kg |
|---|---|
| Full width | 780 mm |
| Full length — armrests flat | 2480 mm |
| Full height — armrest upright | 1820 mm |
| Package dimensions (L × W × H) | 1300 × 840 × 1050 mm |
Drum & compaction
| Drum width | 600 mm |
|---|---|
| Static line load | 45 N/cm |
| Drum diameter | 426 mm |
| Vibration frequency | 70 Hz |
| Vibration amplitude | 0.6 mm |
Power options

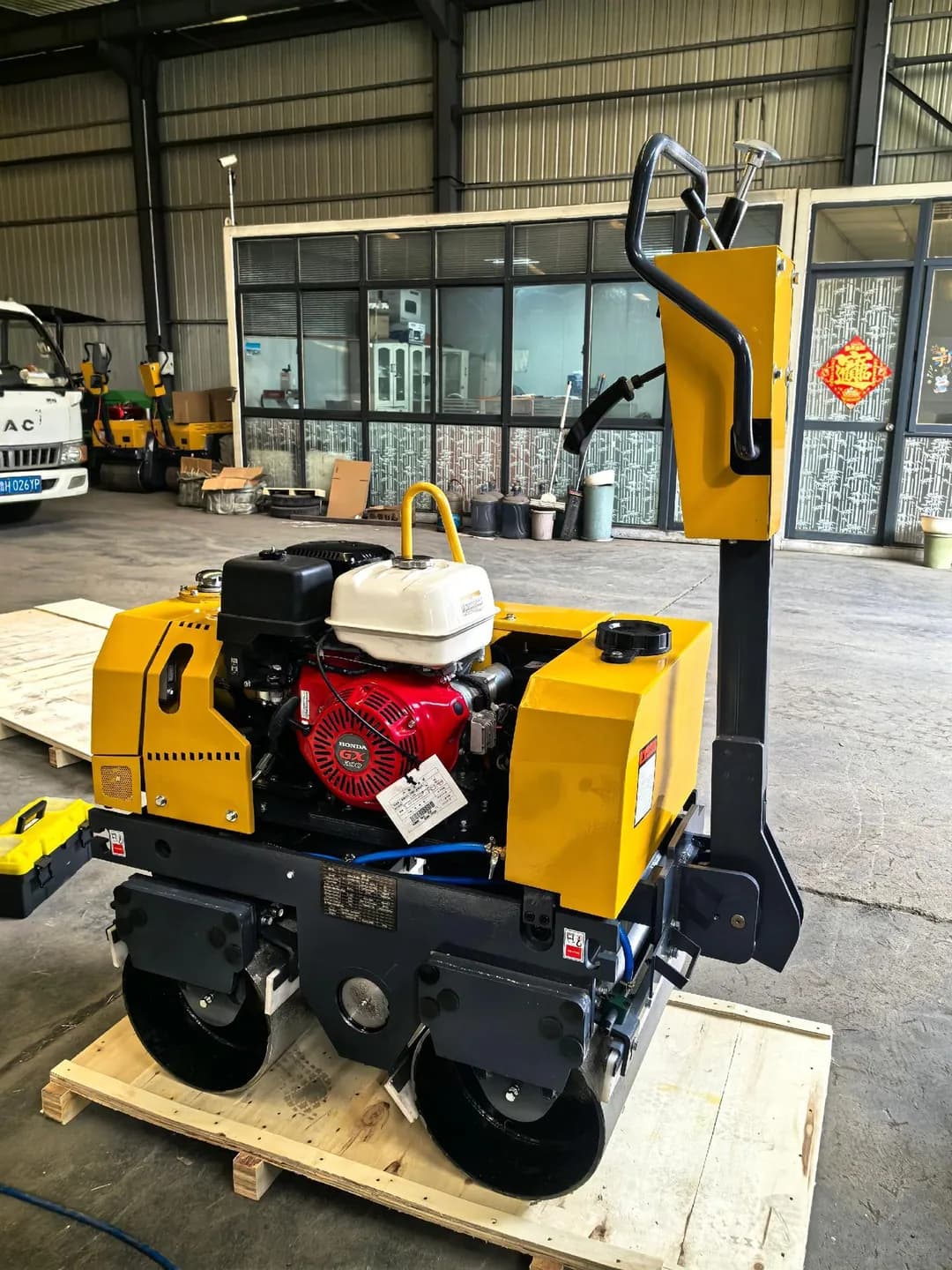

HONDA GX270 option
| Engine model | GX270 |
|---|---|
| Engine type | gasoline four-stroke |
| Rated engine speed | 3600 rpm |
| Fuel tank capacity | 5.9 L |
| Engine oil capacity | 1.1 L |
CHANGFA/CHANGCHAI/KAMA 178 option
| Engine model | 178 |
|---|---|
| Engine type | Diesel four-stroke |
| Rated engine speed | 3600 rpm |
| Fuel tank capacity | 3.5 L |
| Engine oil capacity | 1.1 L |
CHANGCHAI R180 option
| Engine model | R180 |
|---|---|
| Engine type | Diesel Evaporative Water Cooling |
| Rated engine speed | 2600 rpm |
| Fuel tank capacity | 6.5 L |
| Engine oil capacity | 2 L |
Read each engine option as a separate configuration. Confirm its availability and correspondence to the code in your quotation.
Travel & capacities
| Travel speed | 0-4 km/h |
|---|---|
| Theoretical gradeability | 30 % |
| Hydraulic oil capacity | 18 L |
HONDA GX270 option
| Water tank capacity | 20 L |
|---|
CHANGFA/CHANGCHAI/KAMA 178 option
| Water tank capacity | 20 L |
|---|
Gradeability is a stated climbing reference, not a permissible working slope. Use the supplied operating guidance and site assessment for safe operation.
Codes grouped in this series
FYSVH50FYSVH50CFYSVH50S
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Confirm the selected engine's power rating, starting method and water-spray equipment. Request the excitation-force definition for the quoted vibration arrangement.
