Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Small Road Rollers / SERIES
FYSVH60 Series

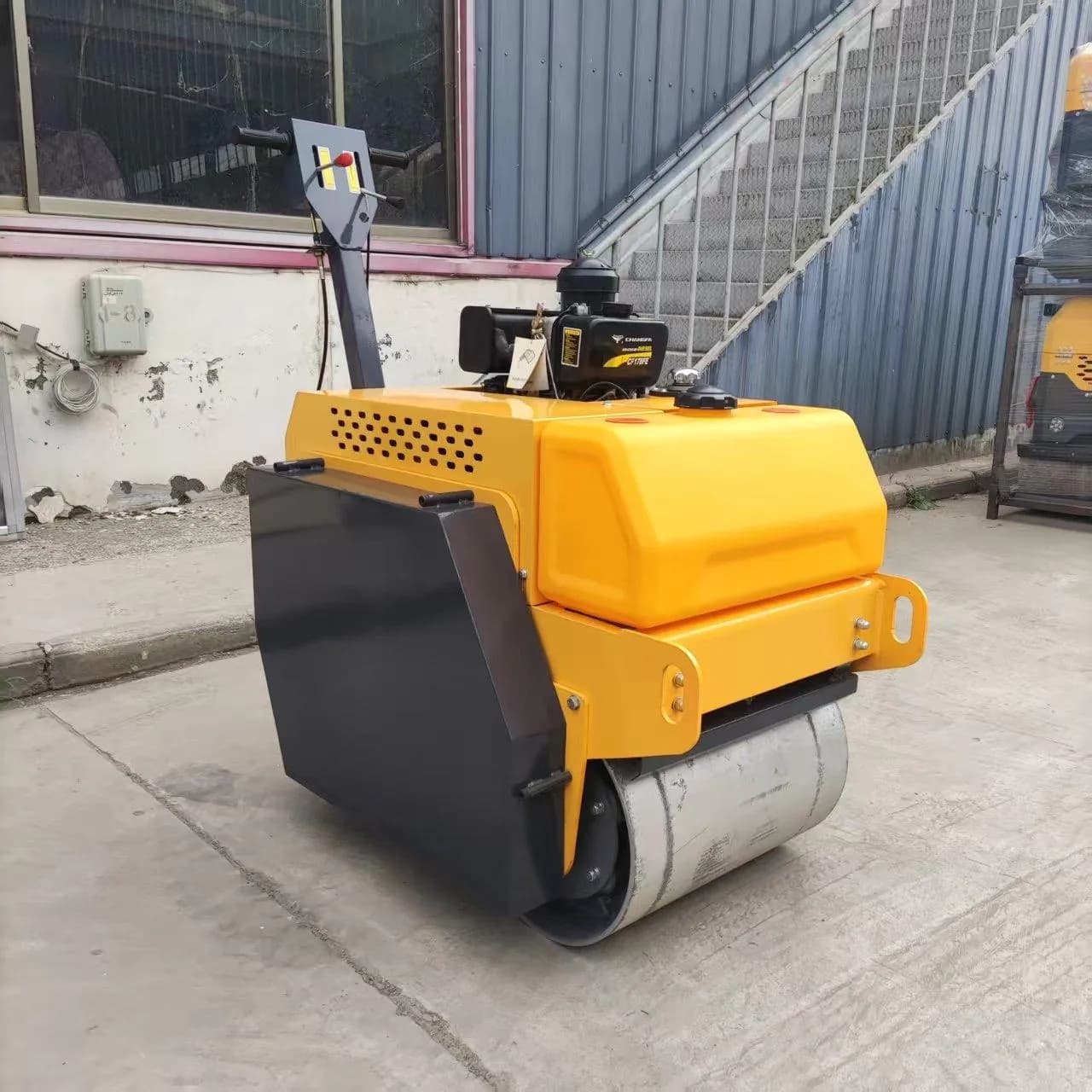

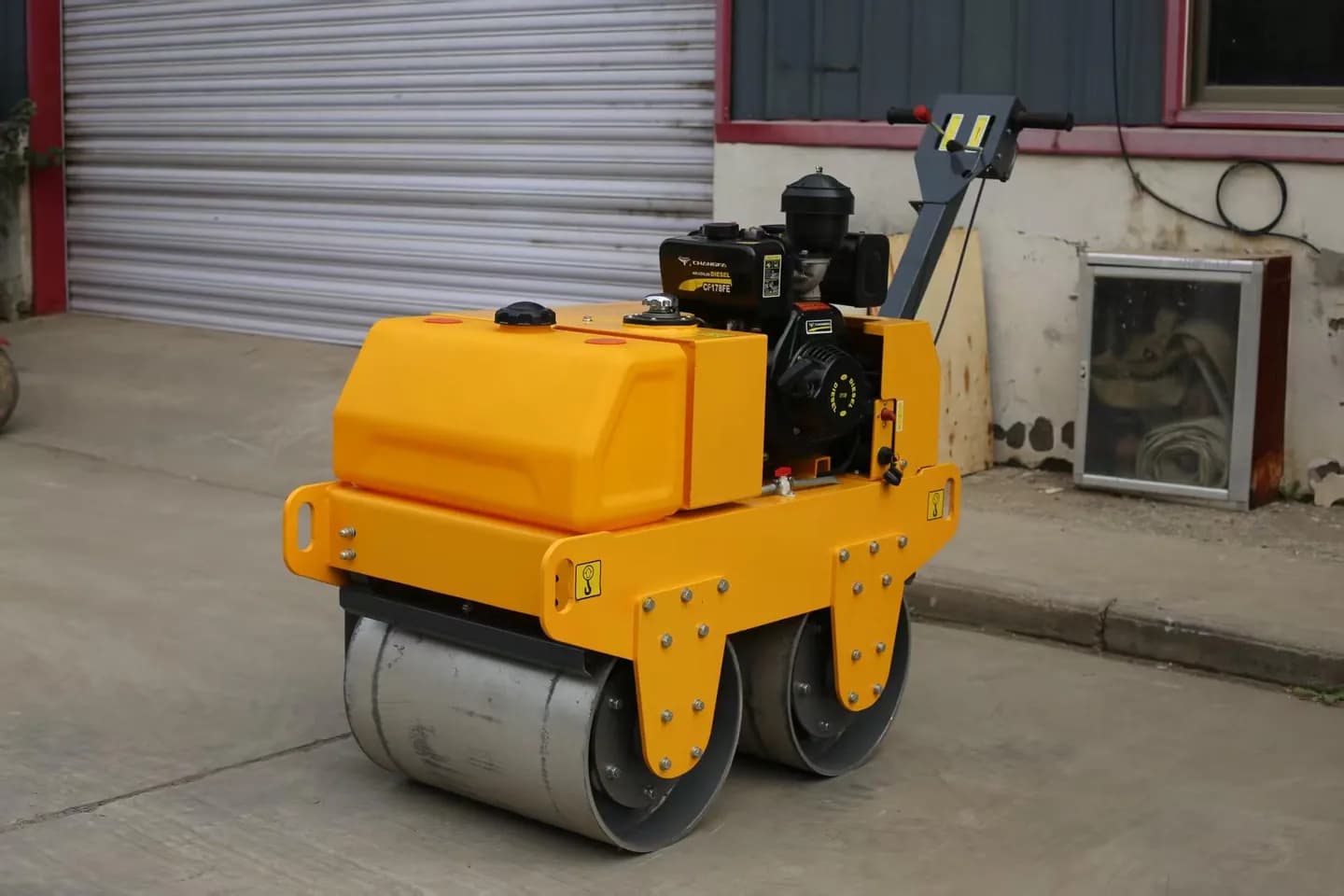

A walk-behind double-drum roller series with electric starting. Dimensions with the armrest upright are separate from package dimensions and engine options.
Series references are shown separately from individual suffix configurations.
Images are representative. Final configuration may vary by specification.
Operating weight650 kgSeries reference
Drum width650 mmSeries reference
Dimensions & weight
| Operating weight | 650 kg |
|---|---|
| Full width | 720 mm |
| Full length — armrest upright | 1240 mm |
| Full height — armrest upright | 1765 mm |
| Package dimensions (L × W × H) | 1300 × 750 × 1160 mm |
Drum & compaction
| Drum width | 650 mm |
|---|---|
| Drum diameter | 380 mm |
| Vibration frequency | 55 Hz |
| Vibration amplitude | 0.5 mm |
Power options
| Starting method | Electric start |
|---|---|
| Electrical system | 12 V |
HONDA GX390 option
| Engine model | GX390 |
|---|---|
| Engine type | Gasoline four stroke |
| Engine power | 9.7 kW |
| Rated engine speed | 3600 rpm |
CHANGCHAI/KIPOR 186F option
| Engine model | 186F |
|---|---|
| Engine type | Diesel four stroke |
| Engine power | 6.6 kW |
| Rated engine speed | 3600 rpm |
Fuzhou Golden Flying Fish RD90N-1 option
| Engine model | RD90N-1 |
|---|---|
| Engine type | Diesel water cooling |
| Engine power | 5.88 kW |
| Rated engine speed | 2400 rpm |
Read each engine option as a separate configuration. Confirm its availability and correspondence to the code in your quotation.
Travel & capacities
| Travel speed | 0-5 km/h |
|---|---|
| Theoretical gradeability | 30 % |
Gradeability is a stated climbing reference, not a permissible working slope. Use the supplied operating guidance and site assessment for safe operation.
Codes grouped in this series
FYSVH60FYSVH60CFYSVH60CS
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Confirm fuel, hydraulic-oil and water-tank capacities for the selected configuration. Request the excitation-force definition and the unpacked transport arrangement.
