Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Small Road Rollers / SERIES
FYSVH60M Series

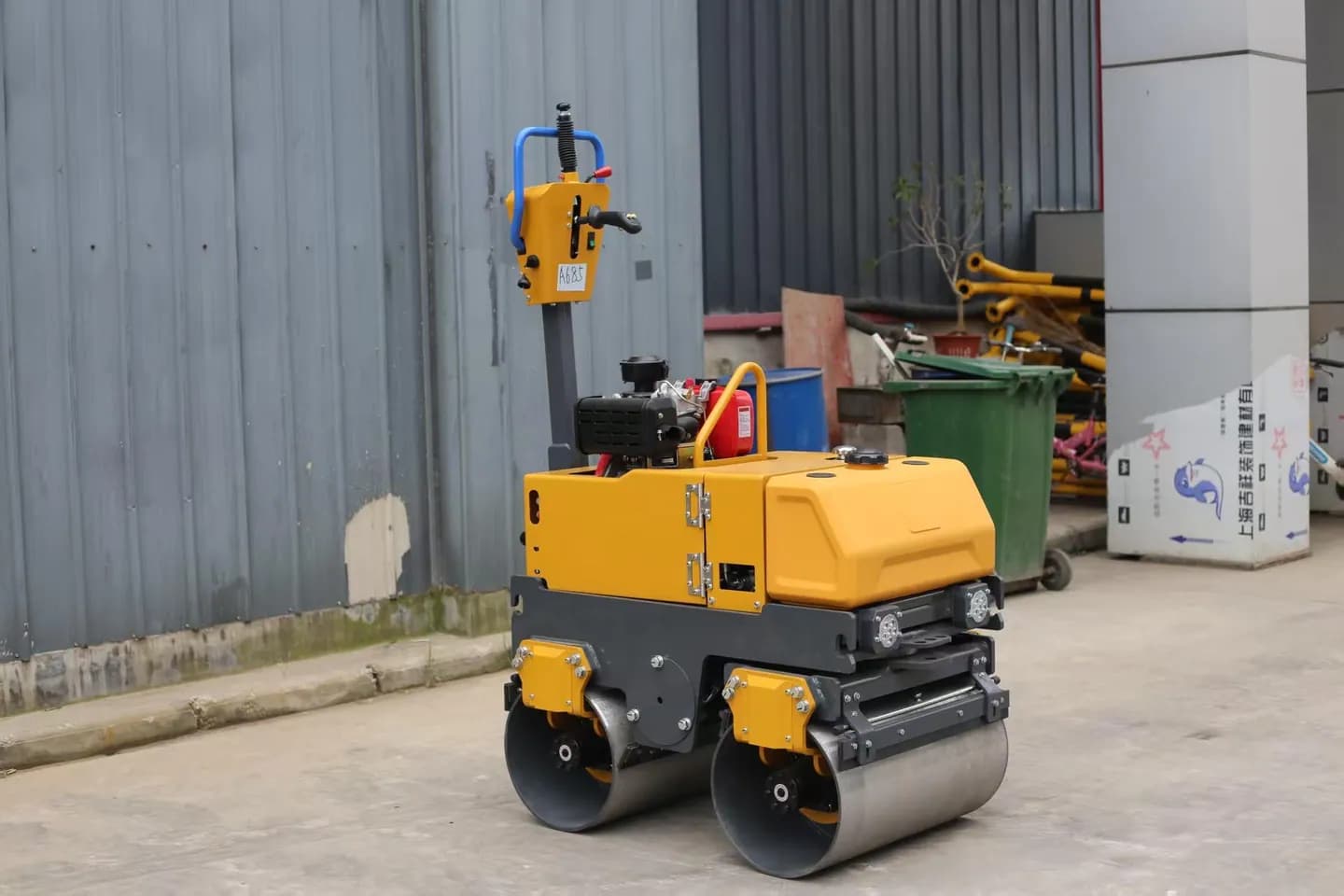

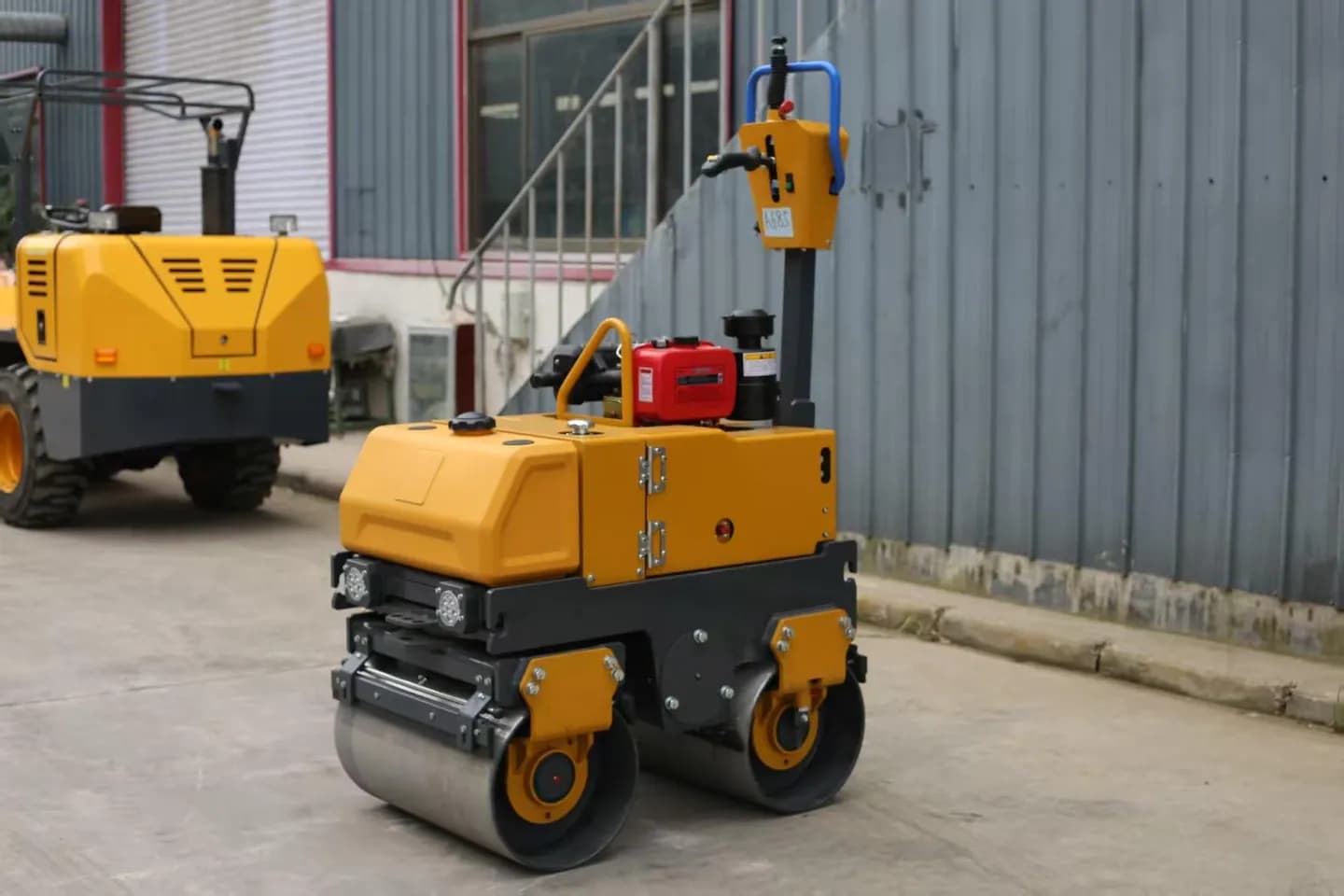

A walk-behind double-drum roller series. The table separates common dimensions and capacities from the gasoline and diesel engine options.
Series references are shown separately from individual suffix configurations.
Images are representative. Final configuration may vary by specification.
Operating weight600 kgSeries reference
Drum width600 mmSeries reference
Dimensions & weight
| Operating weight | 600 kg |
|---|---|
| Full width | 780 mm |
| Full length — armrests flat | 2500 mm |
| Full height — armrest upright | 1820 mm |
| Package dimensions (L × W × H) | 1320 × 840 × 1050 mm |
Drum & compaction
| Drum width | 600 mm |
|---|---|
| Static line load | 45 N/cm |
| Drum diameter | 426 mm |
| Vibration frequency | 70 Hz |
| Vibration amplitude | 0.6 mm |
Power options
| Engine oil capacity | 1.1 L |
|---|
HONDA GX390 option
| Engine model | GX390 |
|---|---|
| Engine type | Gasoline four-stroke |
| Engine power | 9.7 kW |
| Rated engine speed | 3600 rpm |
| Fuel tank capacity | 5.9 L |
CHANGCHAI 186F option
| Engine model | 186F |
|---|---|
| Engine type | Diesel four-stroke |
| Engine power | 6.6 kW |
| Rated engine speed | 3600 rpm |
| Fuel tank capacity | 5.5 L |
Read each engine option as a separate configuration. Confirm its availability and correspondence to the code in your quotation.
Travel & capacities
| Travel speed | 0-4 km/h |
|---|---|
| Theoretical gradeability | 30 % |
| Hydraulic oil capacity | 18 L |
| Water tank capacity | 22 L |
Gradeability is a stated climbing reference, not a permissible working slope. Use the supplied operating guidance and site assessment for safe operation.
Codes grouped in this series
FYSVH60MFYSVH60MC
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Specify the engine, starting method and supplied water-spray equipment. Confirm the excitation-force definition and the loading envelope with the armrest in its transport position.
