Machine dimensions
Compare the stated machine envelope with your access opening. Working and transport dimensions describe different arrangements; keep them separate when planning loading.
Small Road Rollers / SERIES
FYSVH80 Series

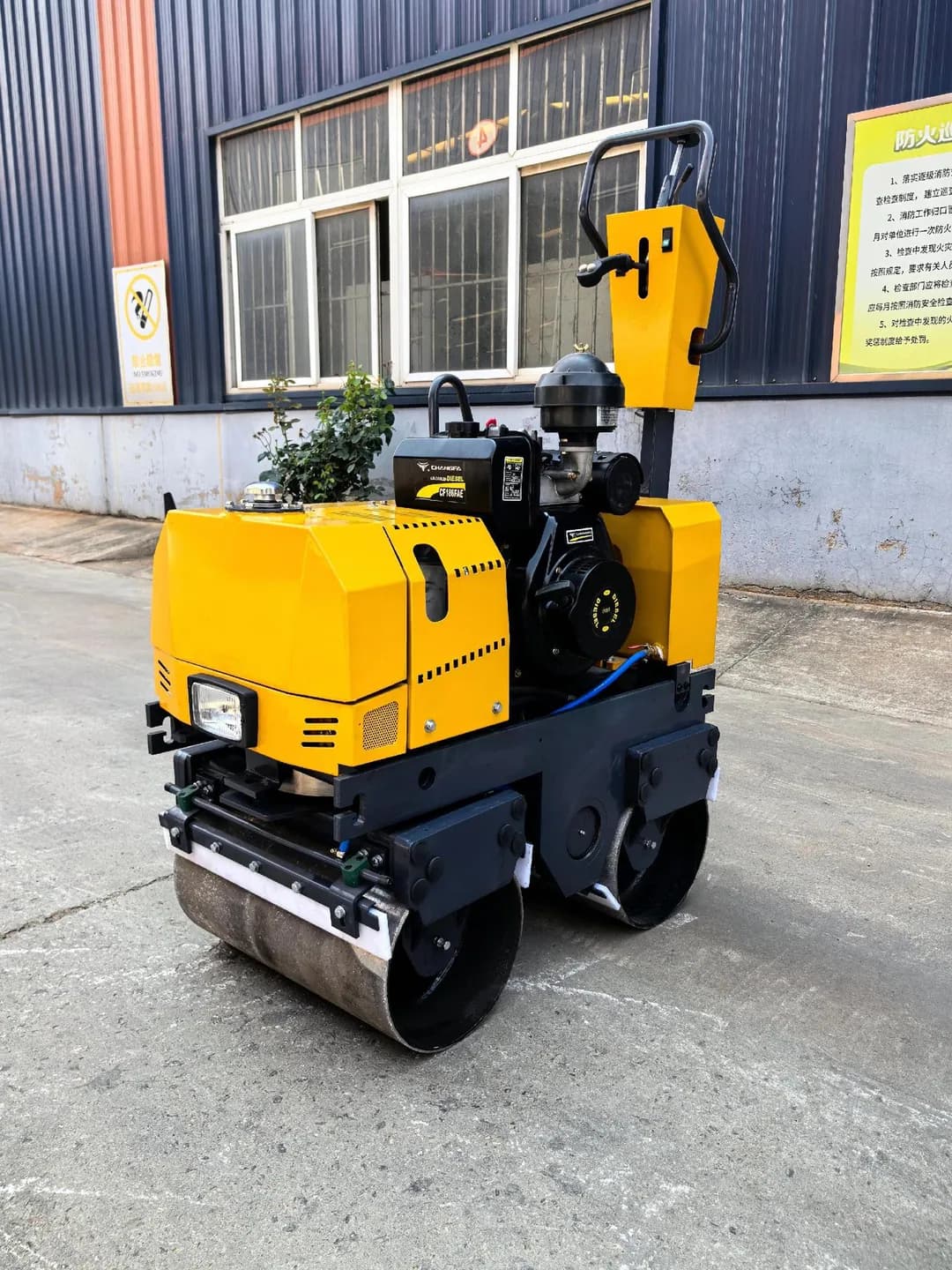

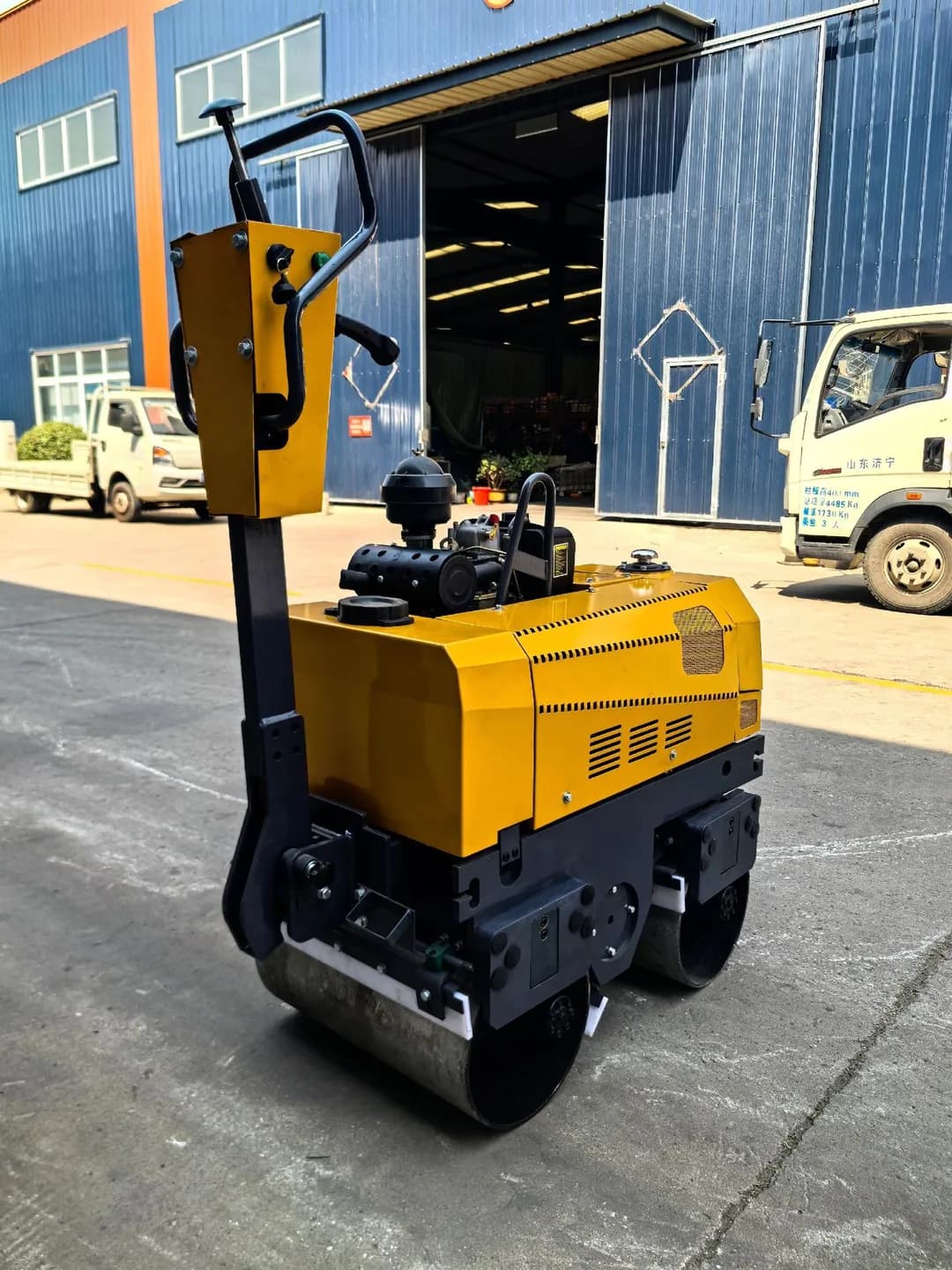

A walk-behind double-drum roller series. Vibration frequency is shown with its engine-option context; alternative dimensions remain separate from the package size.
Series references are shown separately from individual suffix configurations.
Images are representative. Final configuration may vary by specification.
Drum width680 mmSeries reference
Dimensions & weight
| Full width | 750 mm |
|---|---|
| Package dimensions (L × W × H) | 1320 × 700 × 1730 mm |
| Wheelbase | 650 mm |
| Full length — listed alternatives | 2500/1800 mm |
| Full height — listed alternatives | 1140/1710 mm |
Alternative dimensions depend on the machine arrangement. Confirm the operating and transport positions before planning access or loading.
Drum & compaction
| Drum width | 680 mm |
|---|---|
| Drum diameter | 355 mm |
| Vibration amplitude | 0.5 mm |
HONDA GX390 / 186F options
| Vibration frequency | 65 Hz |
|---|
RD90N-1 option
| Vibration frequency | 60 Hz |
|---|
Power options
| Electrical system | 12 V |
|---|
HONDA GX390 option
| Engine model | GX390 |
|---|---|
| Engine type | gasoline four-stroke |
| Engine power | 9.7 kW |
| Rated engine speed | 3600 rpm |
| Fuel tank capacity | 6.5 L |
CHANGFA CHANGCHAI 186F option
| Engine model | 186F |
|---|---|
| Engine type | diesel four-stroke |
| Engine power | 6 kW |
| Rated engine speed | 3600 rpm |
| Fuel tank capacity | 5.5 L |
GOLDEN FLYING FISH RD90N-1 option
| Engine model | RD90N-1 |
|---|---|
| Engine type | diesel horizontal water cooling |
| Engine power | 5.88 kW |
| Rated engine speed | 2400 rpm |
| Fuel tank capacity | 10 L |
Read each engine option as a separate configuration. Confirm its availability and correspondence to the code in your quotation.
Travel & capacities
| Travel speed | 0-6 km/h |
|---|---|
| Theoretical gradeability | 30 % |
| Hydraulic oil capacity | 28 L |
| Water tank capacity | 30 L |
Gradeability is a stated climbing reference, not a permissible working slope. Use the supplied operating guidance and site assessment for safe operation.
Codes grouped in this series
FYSVH80FYSVH80CFYSVH80S
These codes share a catalogue series group. Engine, suffix and component correspondence must be confirmed before choosing an individual configuration.
Reading these specifications
Drum & compaction dimensions
Drum width describes the steel drum, not the overall machine or the minimum access opening. Drum diameter is a separate measurement.
Engine & power
Engine identity and power ratings belong to the configuration stated in the table. Where alternatives are listed, read each engine and rating together; they are not one combined standard package.
Travel & control
Travel speed describes machine movement, not engine output. A remote-control distance is a stated reference and does not establish a safe operating separation for every site.
Specify your configuration
Confirm operating weight, static line load and the positions associated with alternative dimensions. Specify the engine and vibration arrangement together.
